Page 24

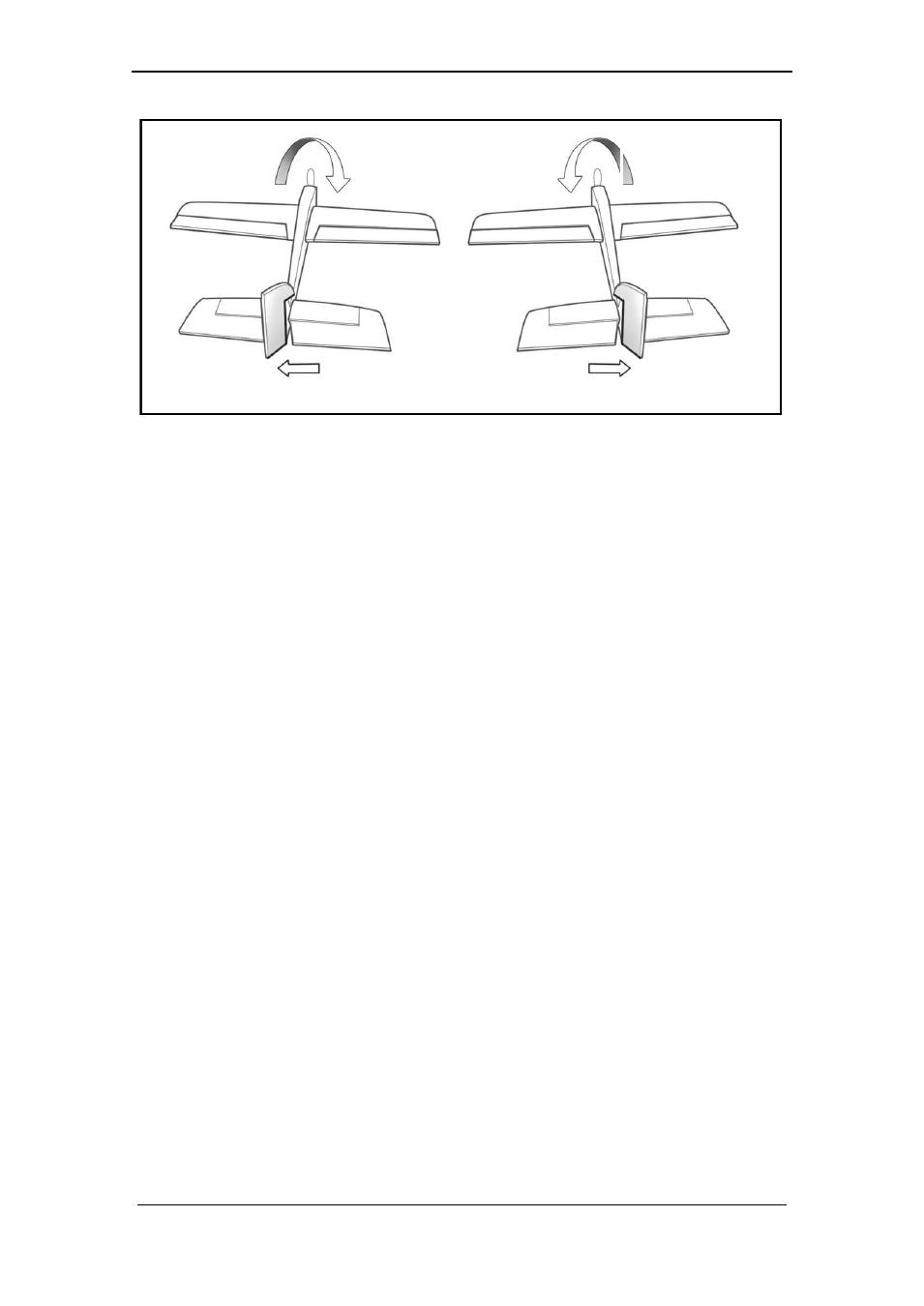

Turn left
Rudder moves to the right
Turn right
Rudder moves to the left
( 4 ) Throttle
Push throttle from light to strong, if the servo display chart of the remote control is
display (-100 to 100) please don ‘t select the‖ throttle reverse‖ option in the rudder reverse,
if from big to small (100 to -100) please select the ‖ throttle reverse‖ option in the rudder
reverse.
The general ESC throttle control (ESC) use the default settings (NOR), without ESC
reverse set.
Step four: Basic sensitivity Settings for automatic control
We suggest that the first flight should be in default value ,then adjust the value
according to the actual flight .
Adjustment principle: check the gain of stability whether it is normal in the "Auto
Balance Mode ―.
Control aircraft in roll, then loosen the rocker, observe that if the plane can be
automatic recovery level, control aircraft in pitch, then loosen the rocker, observe that if
the plane can be automatic recovery level.If the automatic recovery control can not strong
enough ,you can tone the gain of stability .If the pitch and roll swings back and forth ,it
means the parameters is too big ,it need decrease to a small amount .
The greater gain of RUD the weaker effect of the servo when in making a turn .
Gain of the throttle generally do not need to adjust, if the airspeed have a small
space velocity shock in automatic navigation ,you can decrease the parameter to suitable.
