Page 20

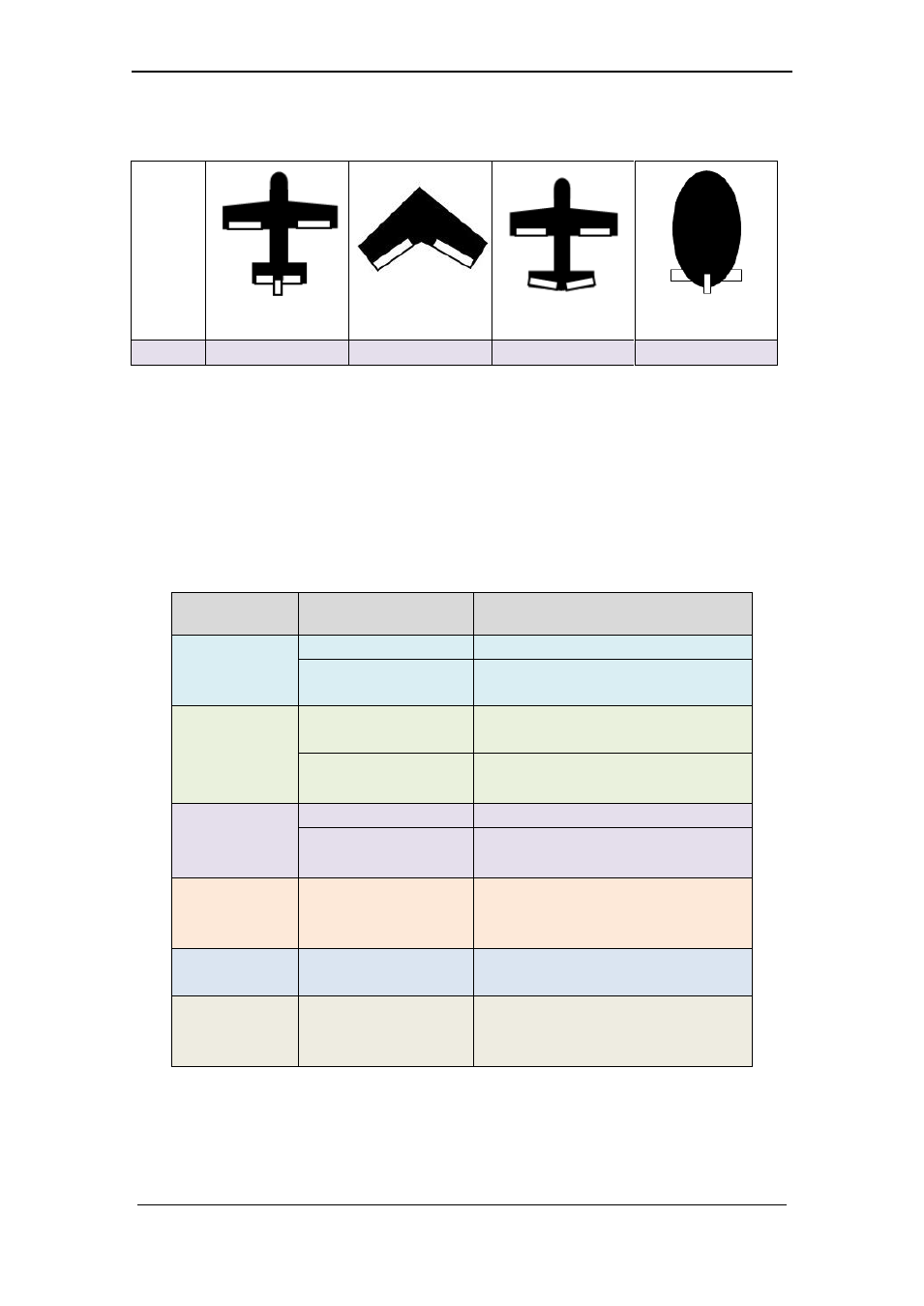

Step two:
Servo’s output mix control mode setting
No.
Normal Elevon V tail Airship
Option No MIX ELE&AIL MIX ELE&RUD MIX No MIX
“AIL NAV‖means using only aileron make a turn in navigation mode.
‖RUD NAV‖means using only rudder make a turn in navigation mode.
Method one: Setting FY-41AP via remote control and OSD overlay menu
Based on the aircraft models to select the correct rudder output. Setting via the ―MIX
SETTING
” option in the OSD menu.
Aircraft Config Mix Setting Selection Remark
Traditional
aircraft layout
with Aileron
1.Normal Navigation control using aileron.
4.Normal(RUD NAV) Navigation control using rudder.
Flying wing
aircraft
2.Elevons
Navigation control using aileron. Used
for most kinds of flying wing planes.
5.Elevons(RUD NAV)
Used for flying wings with independent
rudder for Navigation.
V-Tail aircraft
with Aileron
3.V-Tail V-Tail with navigation via aileron.
6.V-Tail(RUD NAV)
V-tail planes with independent Rudder
for navigation control.
Traditional
aircraft layout
with no Aileron
1. Normal
The rudder servo must be connected to
FY-41AP aileron servo output (AIL)
V-tail without
aileron
2. Elevons
V-tail servo has to connect to FY41AP
Differential Servo 1 & 2 output.
Airship 4.Normal (RUD NAV)
Due different airship configurations,
use with caution. Carry out test flights
to confirm normal function.
