Note: When the FY-41AP needs Gyro Reset or FY-41AP module is in a state of
motion, the LED will bright purple light.
e.g. Red Manual Mode, GPS not lock
Red —Red—Green Stabilized Mode, GPS lock
Purple —Purple—Green Stabilized Mode, GPS lock,
If it stay static means need Gyro Reset.
Blue —Blue—Blue—Green Waypoint Navigation Mode, GPS loc k
7.8. OSD interface instruction
The integrated OSD module supports PAL or NTSC form video input.

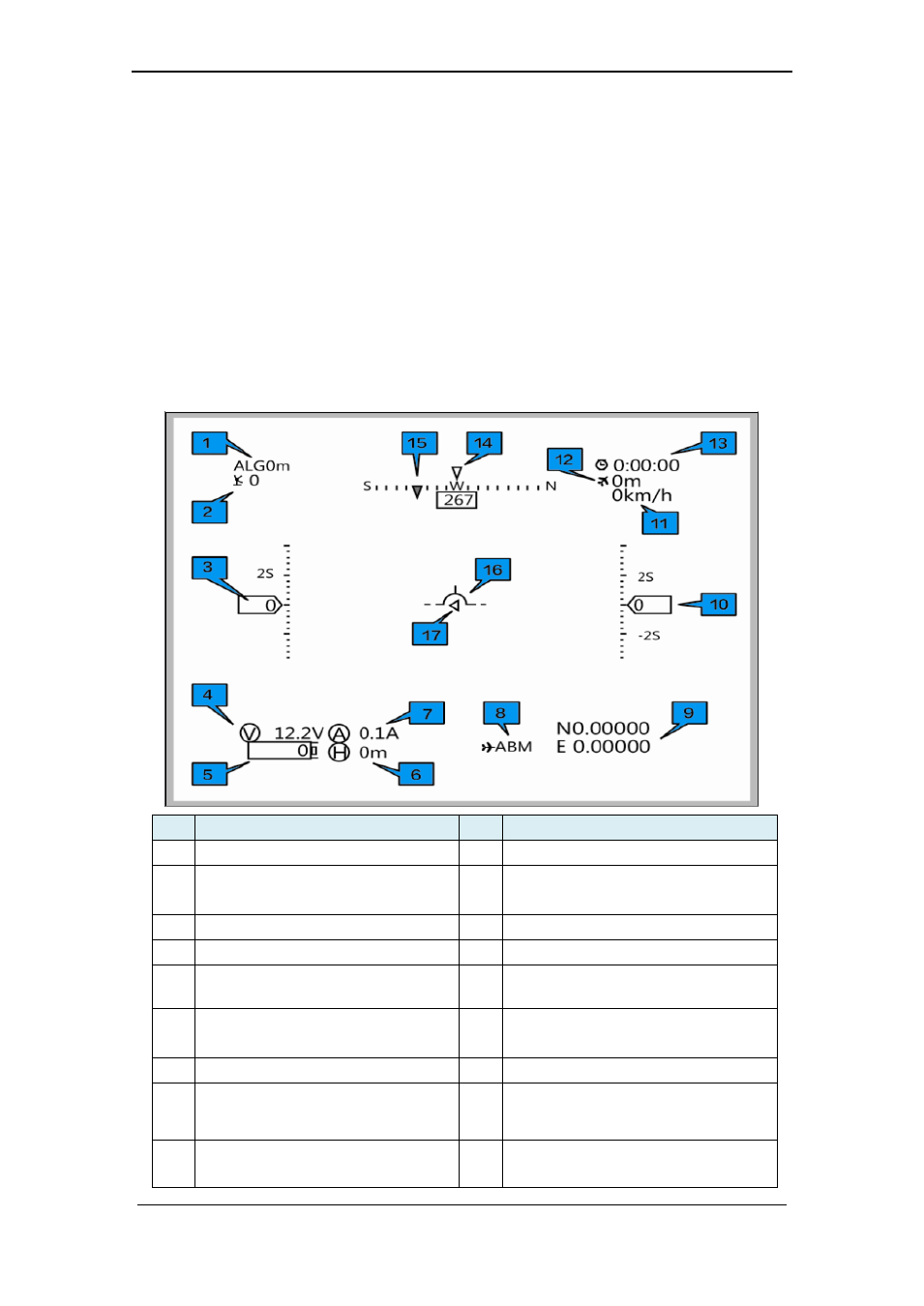

OSD display interface:
No. Instruction No. Instruction
1 GPS altitude(Unit: m) 10 Relative altitude (Unit: m)
2
The quantity of satellite used for
positioning
11 GPS speed (Unit: km/h)
3 Airspeed/GPS speed (Unit: km/h) 12 Flight total mileage (Unit: km)
4 The battery voltage (Unit: V) 13 Total flight time (Format:h:m:s)
5
Battery power consumed (Unit:
mA/h)
14 Current course of flight (Unit: deg)
6 Distance to Home Point (Unit: m) 15
The angle of turning to the Home Point
(Unit: deg)
7 Power battery current (Unit: A) 16 Attitude table
8 Flight mode 17
Relative position of Home Point (Icon
in the middle position when the
aircraft is around Home Point.)
9
Current latitude & longitude of the
plane (Format: dddmm.mmm)
