Page 13
(1) Through SW1:
On SW1,switch ABM to Deactivated Mode 6 times, time interval has to be less than 3
seconds as follows:
ABM→ Deactivated Mode → ABM → Deactivated Mode → ABM → Deactivated
Mode → ABM → Deactivated Mode → ABM → Deactivated Mode → ABM → Deactivated
Mode.
After doing this operation, the LED will bright white light about 1S.Wait for the
LED go out, then the gyro initialization finish.
(2) Through OSD video overl ay menu ―INIT GYRO‖ option.
(3) Through the ― FYGCS 5.11 for FY41AP and Dos ‖setting software ―Initialize the
gyro ‖ button which in the ―Autopilot Configuration Wizard‖ option.
Note: Making gyro initialization via the OSD menu and the ―FYGCS 5.11 for FY41AP
and Dos ‖ setting software, won't appear the phenomenon of the LED bright white light.

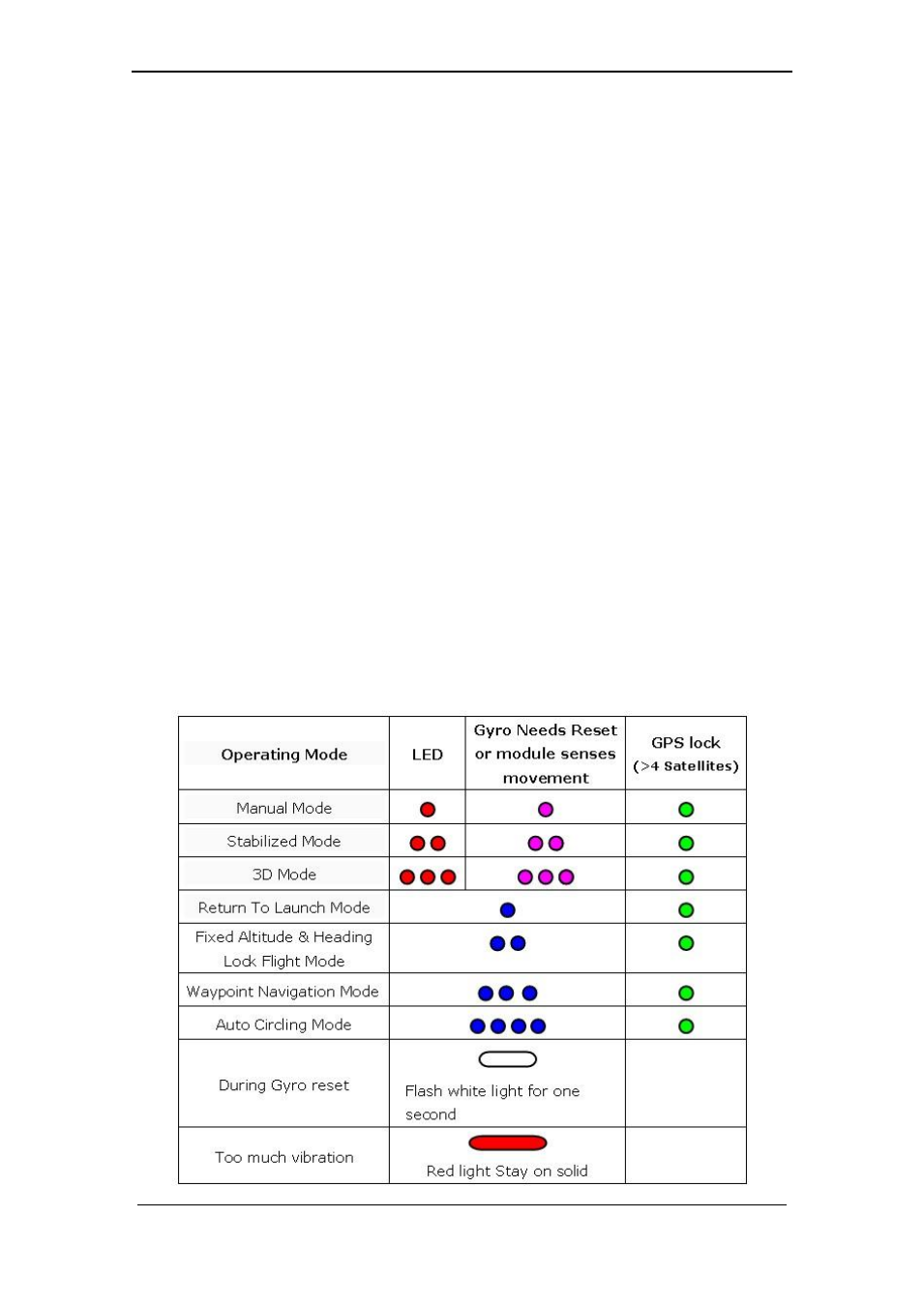

7.7 FY-41AP indicator light instruction
FY-41AP with three colors LED which can send out red, blue, green light. Also yellow,
white, purple and other colors light t hrough the combination.
Operators can know the FY-41AP ‘s operating mode by judging the different colors
which the LED sends out and the flash frequency. green light flash means GPS location
fixed, red and blue light indicate FY-41AP working mode.
