Page 17

Guilin Feiyu Electronic Technology Co., Ltd.

Guilin Feiyu Electronic Technology Co., Ltd http://www.feiyu-tech.com [email protected]

Page 15

Flight mode instruction

Name

Introduction

Name

Introduction

Deactivated mode

ADH

Fixed altitude &

Heading lock Mode

3DAerobatic Flight

ACM

Circle mode

ABM

Stable mode

NAV

Path mode

RTL

Return to home

8. FY-41AP Setting

There are two ways to set the FY-41AP, one is via remote control and OSD overlay

menu settings. Another solution is connected via USB cable to the computer by using the

setting software to set up. Here we introduce the use of these two methods.

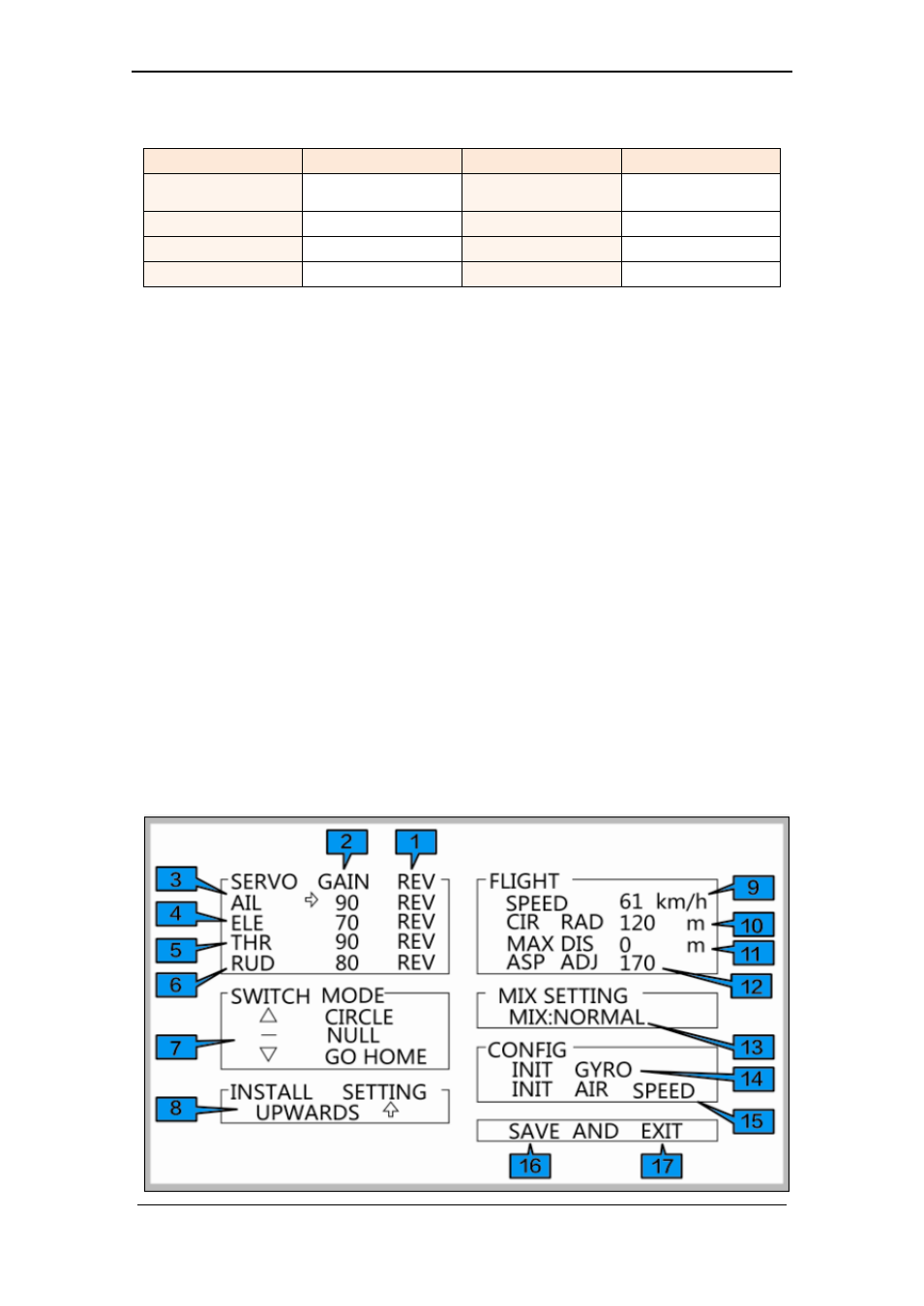

Method one: Setting FY-41AP via remote control and OSD overlay menu

1 ) Activate the OSD setup menu: switch "ABM" to the "3D mode" 6 times in SW1,

between two switching it has to be less than 3 seconds, the process is as follows: ABM

→ 3D mode →ABM →3D mode → ABM → 3D mode → ABM → 3D mode →ABM → 3D

mode

→ABM→ 3D mode. This will activate OSD setup menu interface.

2 ) Move Elevator stick to the project you want to set.

3 ) Move aileron stick to the project you want to set.

4 ) Please put elevator stick to SAVE, after your setting.Through the stick of ailerons

carried out to save the action, when saving, "SAVE" will flicker for two seconds, the end

of the flashing, been saved successfully.
