Page 8

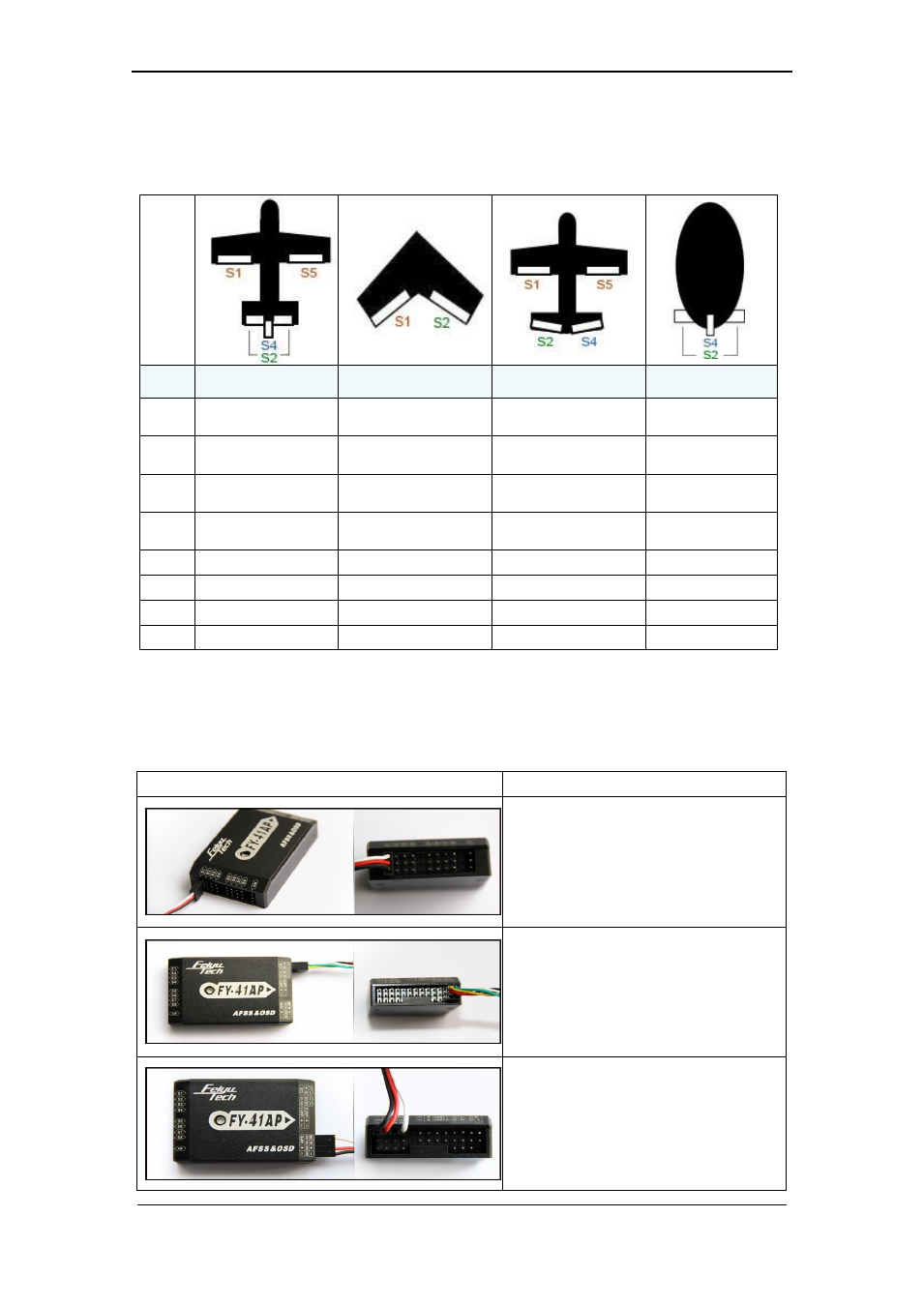

5. S1~S8 Servo Interface Connection
Instructions
No .
Type Traditional Flying wing V tail Airship
S Aileron servo 1
Aileron &Elevator
mix control servo 1
Aileron servo 1 Not use
S2 Elevator servo
Aileron &Elevator
mix control servo 2
Elevator &Rudder
mix control servo 1
Elevator servo
S3
Throttle
servo/ESC
Throttle servo/ESC Throttle servo/ESC
Throttle
servo/ESC
S4 Rudder servo Not use
Elevator &Rudder
mix control servo 1
Rudder Servo
S5 Aileron servo 2 Not use Aileron servo 2 Not use
S6 Not use Not use Not use Not use
S7 Not use Not use Not use Not use
S8 Not use Not use Not use Not use
NOTE: When using remote adapter, S7 and S8 output the channel 7 and channel 8
signal of the RC receiver directly.
6. Connection Introduction
Connection Picture Introduction
S1～S8 servo wiring connection
Pay attention to the signal wiring
sequence
Power manager wiring
GPS module wiring
