B-41
10. Place the SIMM in the connector, lining it up with the guides.
Make sure to put the notched end toward the ejector handle (to
the left).
Gently press down on the ejector tabs to open them.
Press SIMM down slightly.
Push the SIMM firmly and evenly
Ejector tabs pop partly back up.
Push ejector tabs until they lock
Notched end
the SIMM in the connector so that the fingers
on the edge of the SIMM just touch the connector.
Close the ejector tabs.
into the connector to be sure it
is properly seated.
in place.
Close the ejector tabs.
Place

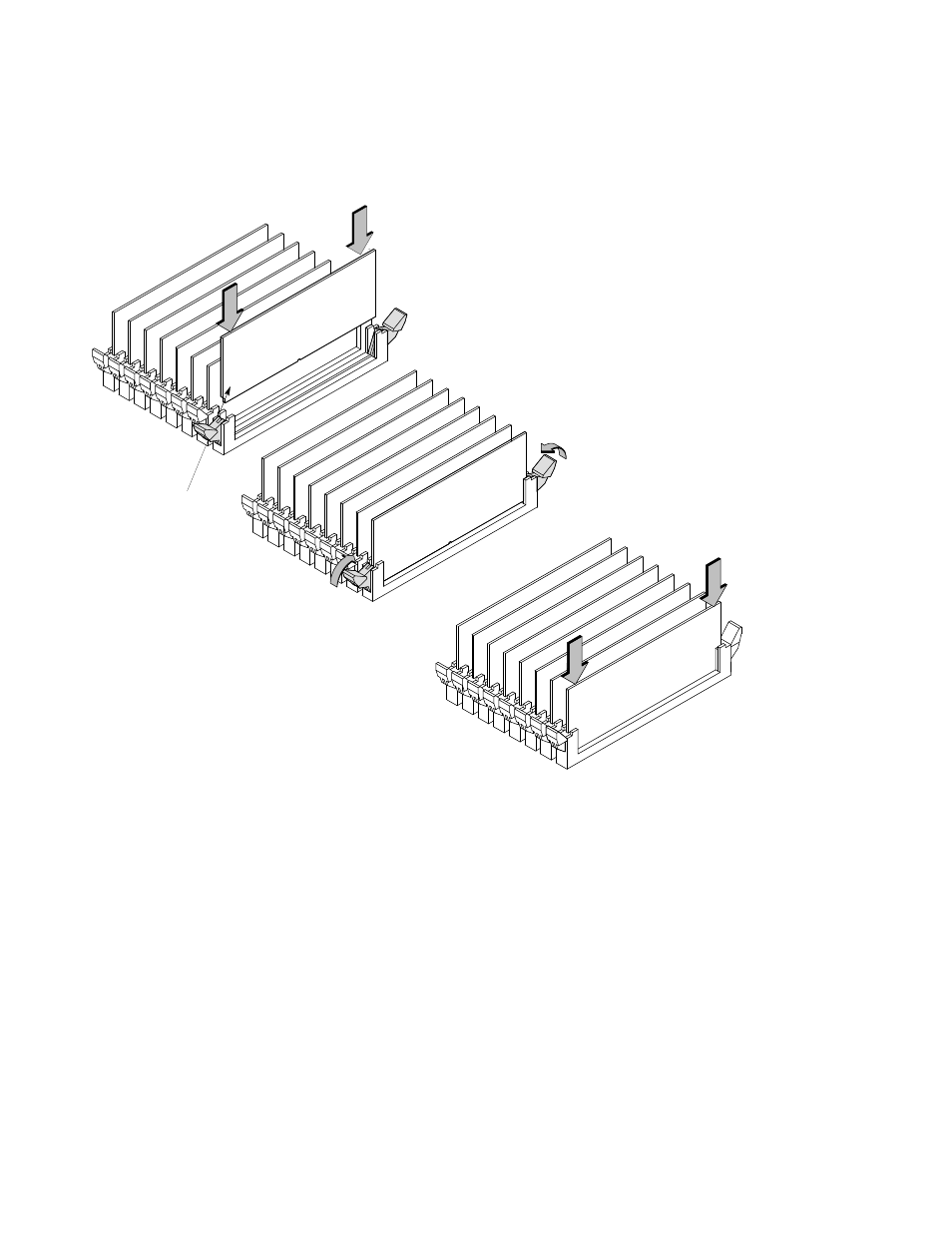

Figure A–23. Installing Memory Cards
11. Close the ejector tab.
