Configuring an external monitor – EXFO FTB-500 User Manual
Page 68

Getting Started with Your Unit
60
FTB-500
Configuring an External Monitor
Configuring an External Monitor
Although your unit is equipped with a touchscreen, you might want to
connect an external monitor.
You can configure the external monitor in the Windows Control Panel. In
Control Panel, when you select the duplicate displays feature, the
resolution of the external monitor is set to 800 x 600 automatically, which
corresponds to the default resolution of the touchscreen.
Although the maximum resolution of the touchscreen is 800 x 600, you can
select a higher resolution for the external monitor with the extend displays
feature. The smallest resolution that you will then be able to select for the
external monitor is 1024 x 768.
To configure an external monitor:

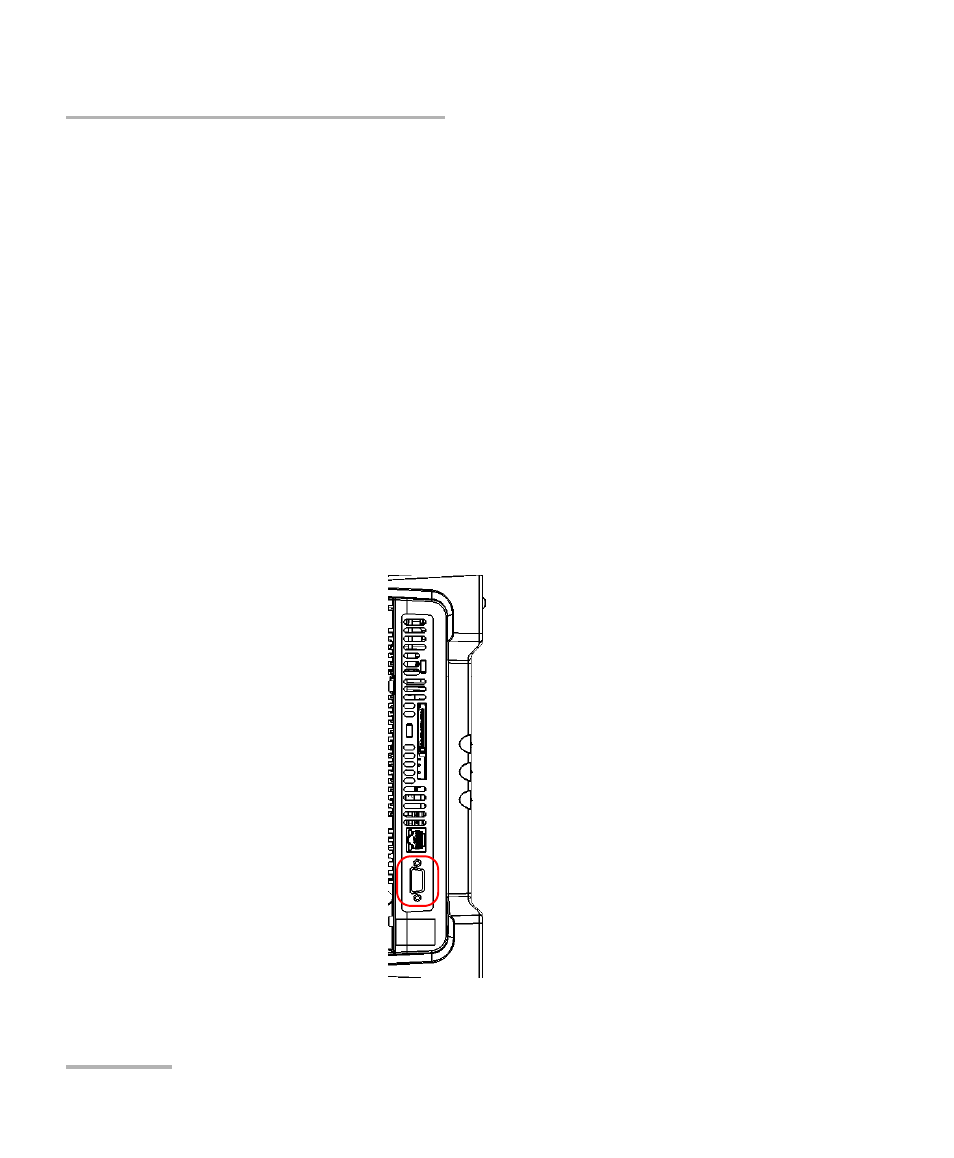

1. Connect the external monitor to the Video Out port, located on the left
side of the unit.
2. From the main window, tap the System Settings button.
