Getting Started with Your Unit

30

FTB-500

Inserting and Removing Test Modules

To remove a module from the FTB-500:
1.
Exit ToolBox and turn off your unit (shut down, not hibernate or sleep).

2. Position the unit so that the left panel is facing you.

3. Turn the retaining screw counterclockwise until it stops.

The module will be slowly released from the slot.

4. Place the unit so that the right panel is facing you.

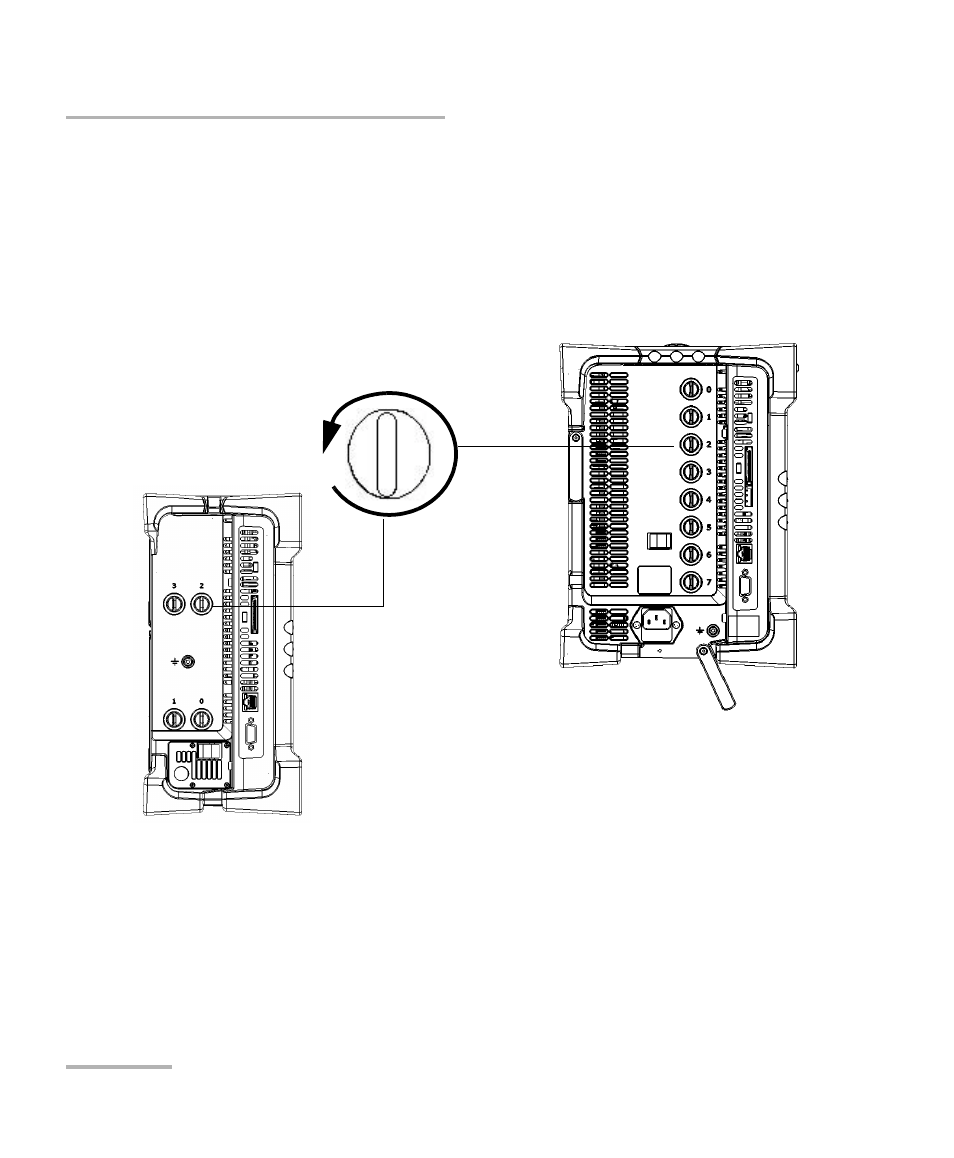

Turn retaining screw knob(s)

counterclockwise

FTB-500 left panel
