Applicable Data Types for Output —IEEE 488.2

Applicable Data Types for Output —IEEE 488.2

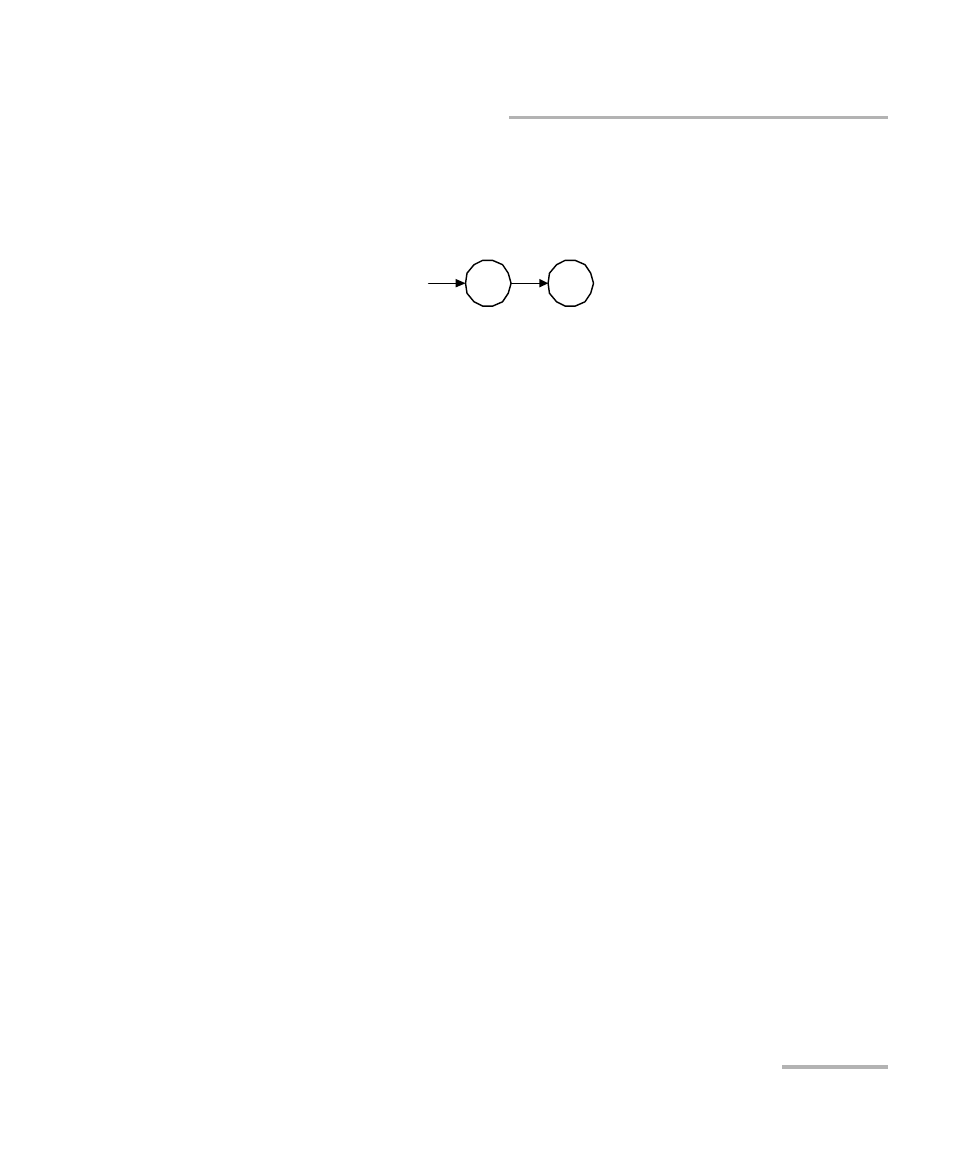

In the diagram above,

“NL” corresponds to ASCII character code 10, in decimal (0A in
binary)

“END^” corresponds to the last data byte of the message sent with
EOI = True and ATN = False

This data type will be used by a device to return short mnemonics
when a cannot be used. The
returned information is sent in the long form and in upper case.

Examples: TRIANGLEWAVE, NCONTINUOUS

NL

END^
