Inspecting Fibers with a Probe

138

FTB-500

To inspect fibers with a probe:
1.
Connect the probe to your unit.

For a probe of the FIP-400 series, connect it to the probe port on the
right panel of the unit.

I

MPORTANT

For a probe of the FIP-400B series, connect it to the USB port that is
closest to the bottom, on the front panel of the unit. Otherwise, the
probe will not be detected properly.

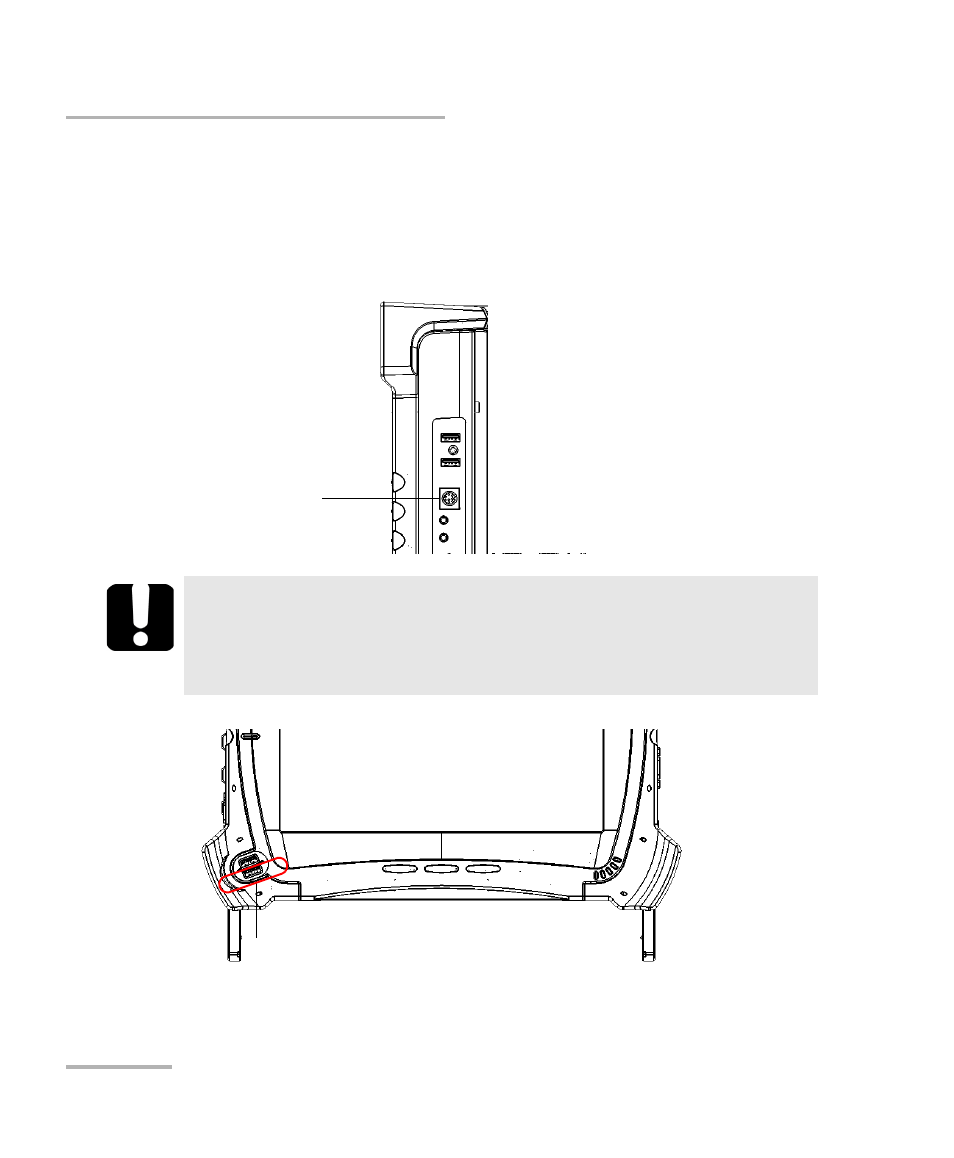

Fiber inspection probe port

(for FIP-400 probes)

Right panel

USB host port
(for FIP-400B probes)

Front panel
