Getting Started with Your Unit

28

FTB-500

Inserting and Removing Test Modules

Note: If you are using larger or heavier modules, place them near the bottom of

the unit as much as possible.

4. Insert the protruding edges of the module into the grooves of the

receptacle’s module slot.

5. Push the module all the way to the back of the slot, until the retaining

screw makes contact with the receptacle casing.

6. Place the unit so that its left panel is facing you.

7. While applying slight pressure to the module, turn the retaining screw

clockwise until it is tightened.

This will secure the module into its “seated” position.

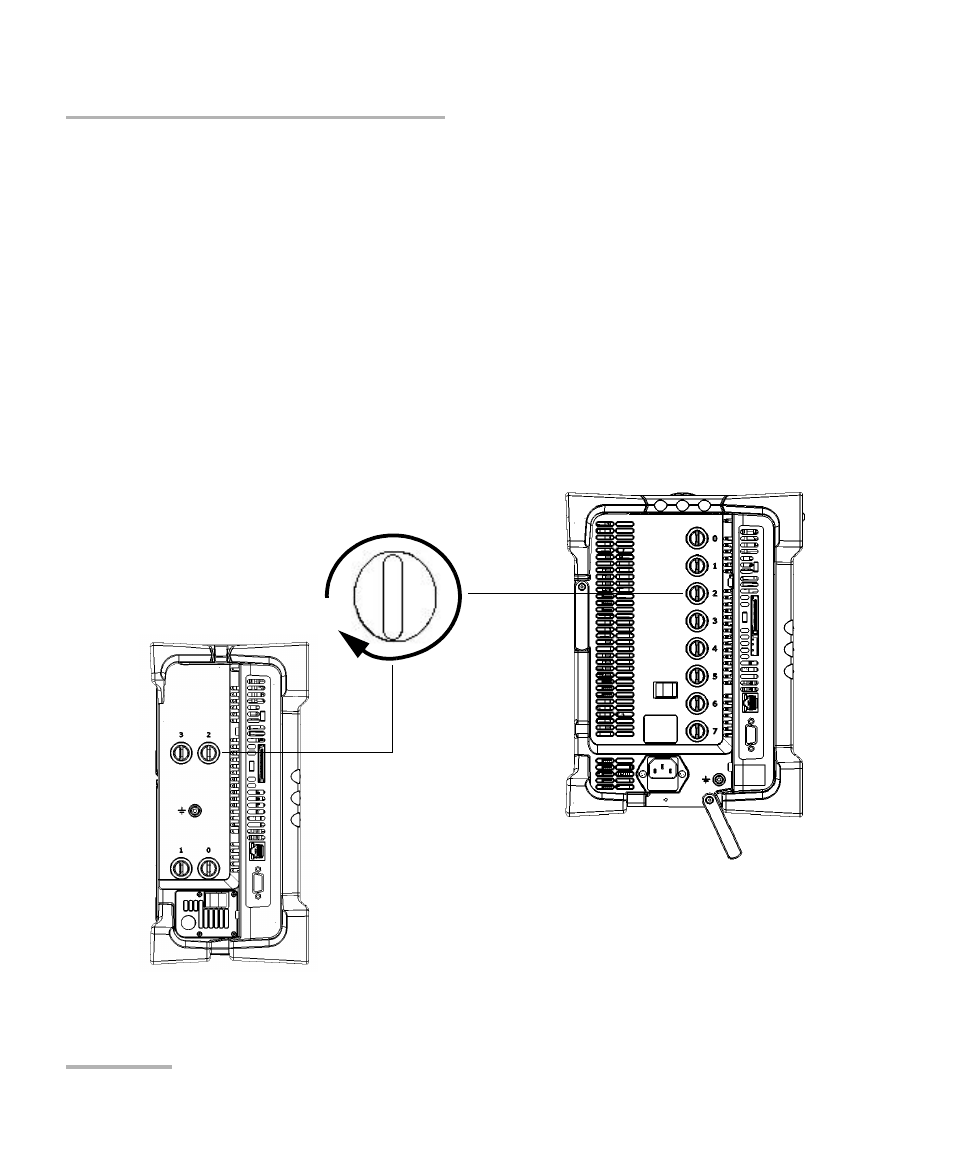

Turn retaining screw knob

clockwise

FTB-500 left panel
