Getting Started with Your Unit

24

FTB-500

Grounding Your Unit

To ground your unit:
1.
Position the unit so that you can see its left panel.

2. Place the U-shaped terminal under the grounding stud’s screw head.

3. Turn the grounding stud clockwise to screw it tight.

4. Ground the other end of the wire as per your local regulation.

Your unit is now grounded properly.

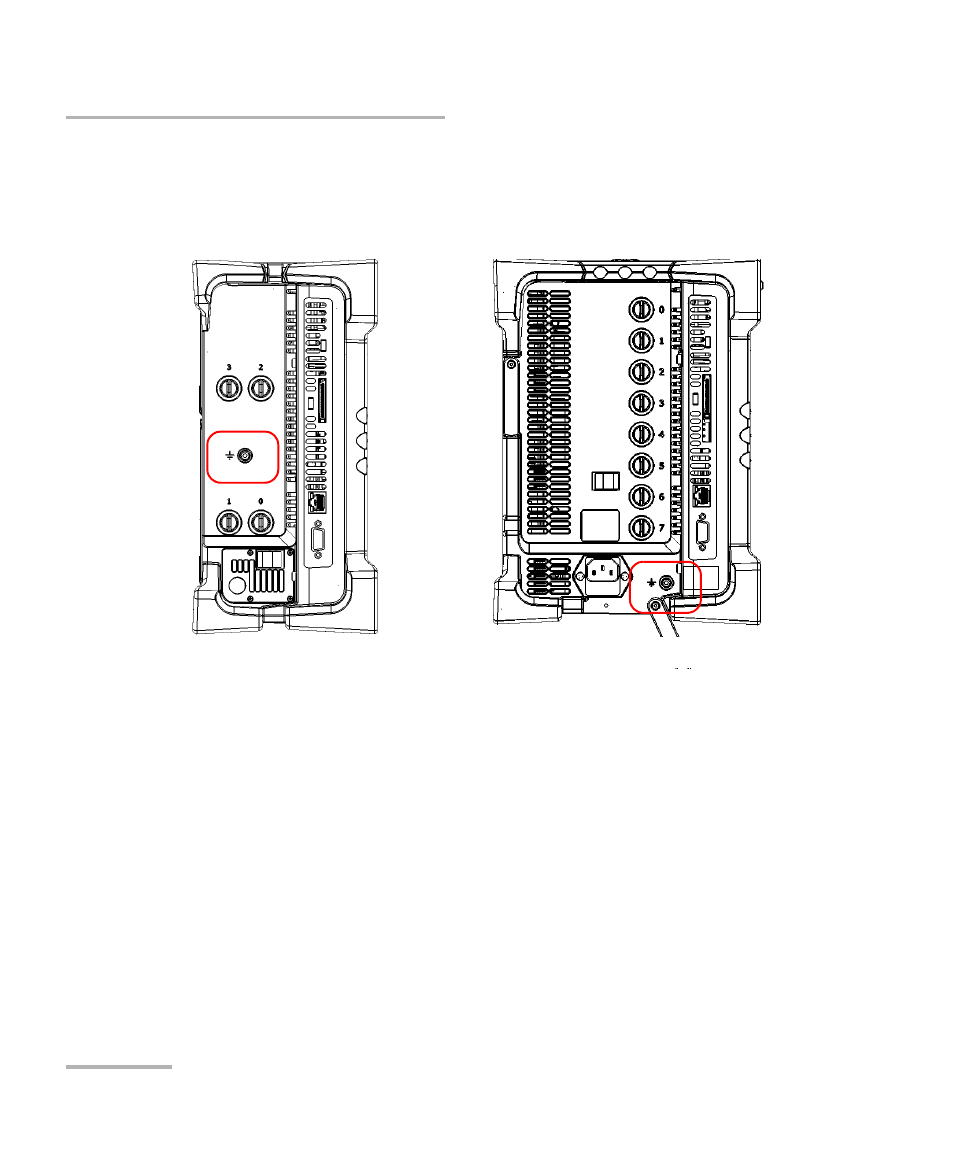

Eight-slot model

Four-slot model
