You can configure the F

AS

T

ES

T on the master unit only. The remote unit will

automatically adapt to these parameters (F

AS

T

ES

T parameters on remote

unit are ignored).

Setup includes the following elements:

Port and DUT (fiber) type: multimode
F

AS

T

ES

T will not include ORL.

Compatibility: select FOT-930 for fast, two-
or three-wavelength testing including ORL (it
requires two FOT-930/FTB-3930). Use
FOT-920 when other unit is an FOT-920 or
FTB-3920.

Length units: affects

thresholds

and fiber length only.

Mode/wavelengths: select one or more wavelengths for the F

AS

T

ES

T.

Depending on your choice, the F

AS

T

ES

T will include loss and/or ORL

measurements. Selecting FTTx Custom or FTTx All allows you to
define upstream and downstream wavelengths.

Automatic saving of results: select where results are automatically
stored (remote saving not available with FOT-920). Fiber name
automatically increments after each F

AS

T

ES

T.

Unit location: in FTTx mode, you specify if the master unit is closer to
the CO (or to the premises) than the remote unit.

To set up the F

AS

T

ES

T:

1. Press Menu, then select Setup > FasTesT.

2. Select the F

AS

T

ES

T parameters.

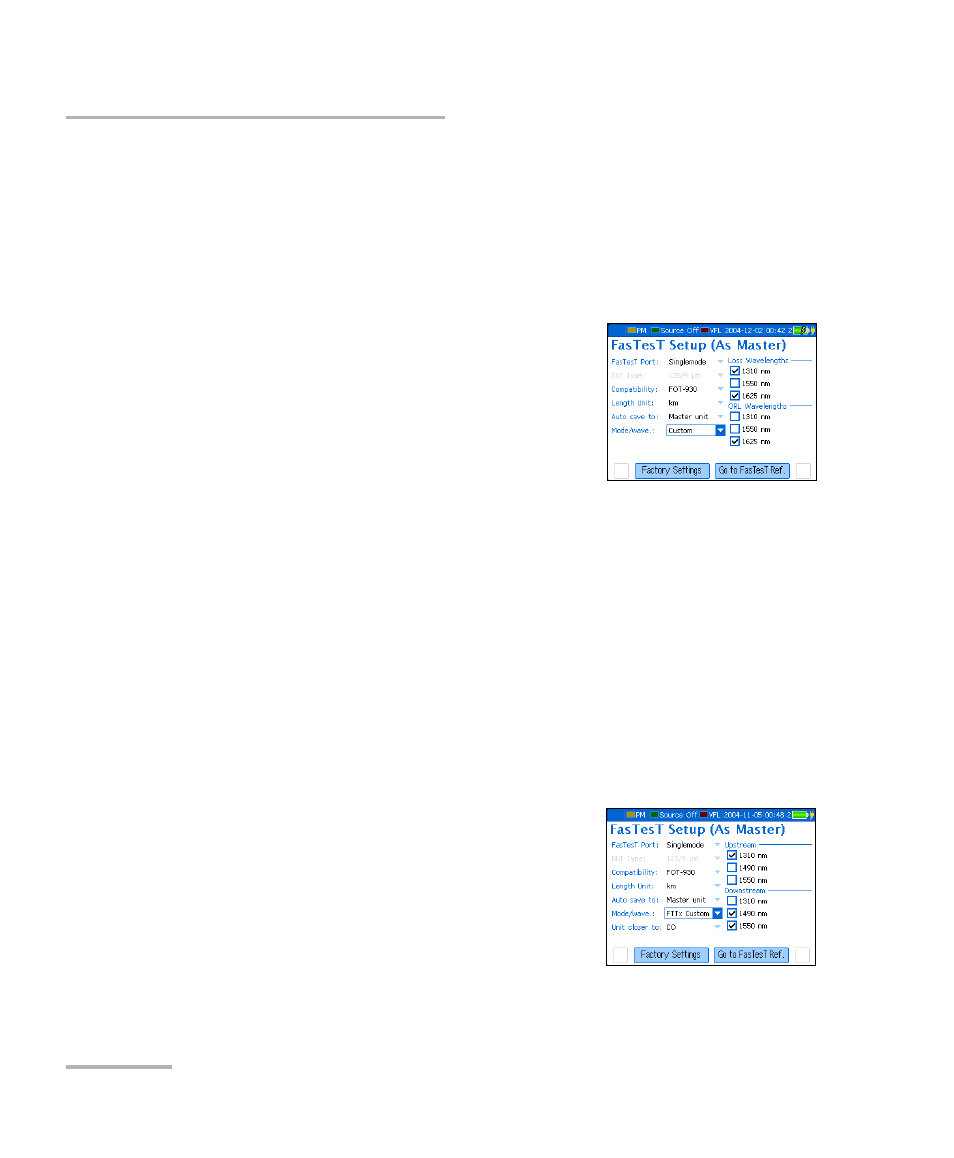

(standard wavelengths)

(FTTx wavelengths)
