Getting Started with Your Multifunction Loss Tester

Multifunction Loss Tester

15

Using Menus and Keypad

To access main features:
1.
Press the Menu key.

2. Use the arrows to select feature and press Enter.

To activate F1/F2 functions:
1.
Use the left/right function arrows (beside F1/F2 keys) to make the

desired function or parameter visible.

2. Press the F1 or F2 key located just below.

To access and modify on-screen parameters:
1.
Use the arrows to select an on-screen item (drop-down list, keyboard,

check box, etc.).

2. Press Enter to activate or open it.

To enter text or numbers with an on-screen keyboard:

Use the left/right function arrows (beside F1/F2 keys) to move the
cursor in the text.

Use the up/down and left/right arrows to select a character, then press
Enter to add it.

Press OK (F1/F2 key) to accept the element and hide the keyboard.

Power meter status (detected modulation)

Source/F

AS

T

ES

T/ORL meter status (active wavelength

or detected modulation)

VFL status (on/off)

Current date and time

Battery number/status and DC power status

Talk set status (seeking or connected)

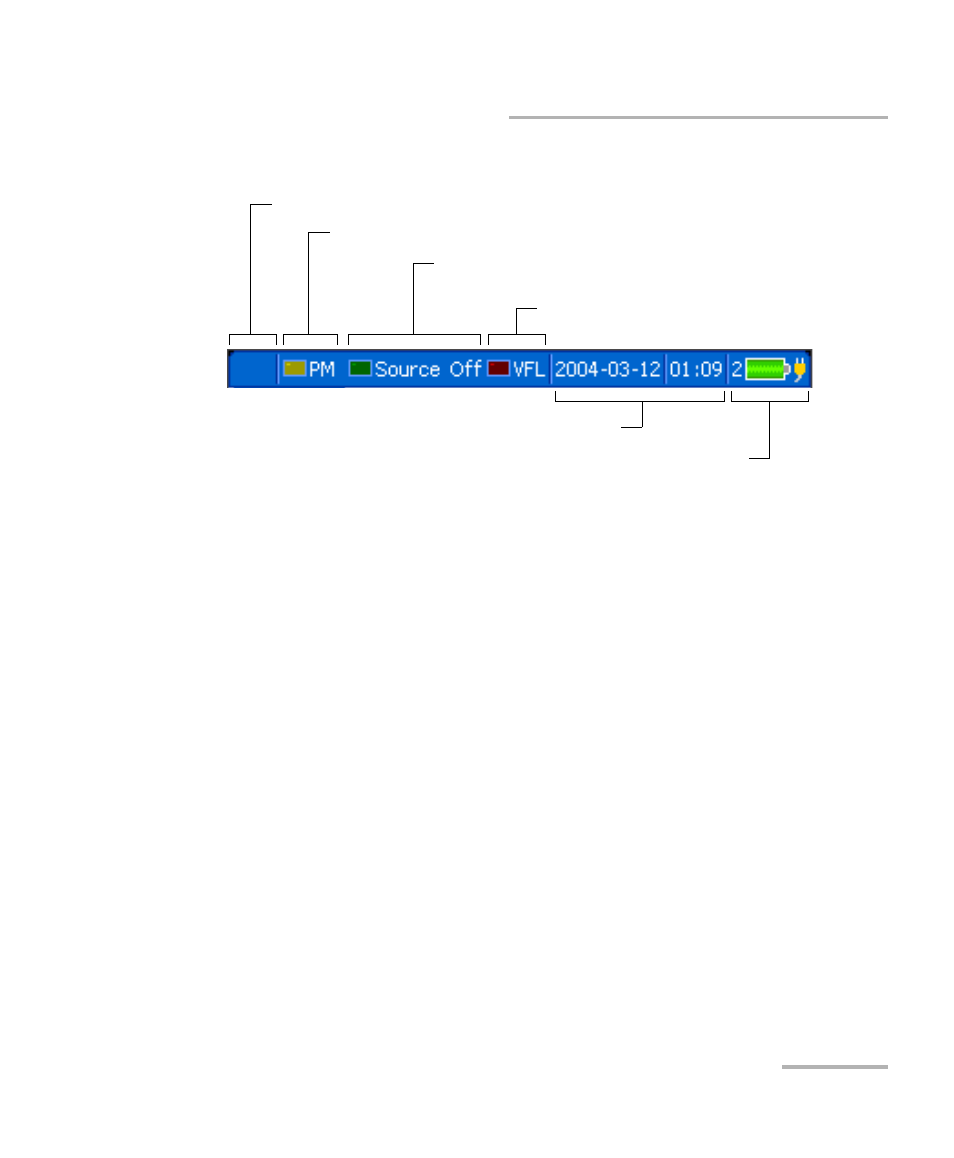

Status Bar
