DMM Tests

Copper, VDSL2, ADSL2+, and IP Triple-Play Test Set

77

Resistive Balance

To set parameter values and start/stop the test:
1.
Press the up/down arrow keys to highlight the desired parameter.

2. Press

to select the value.

3. Press the left arrow key to erase the existing value, and then use the

alphanumeric keypad to enter a value. To cancel the entry, press

.

4. Press

to accept the value.

5. Select other parameters as required.

6. Press

to start/stop the test.

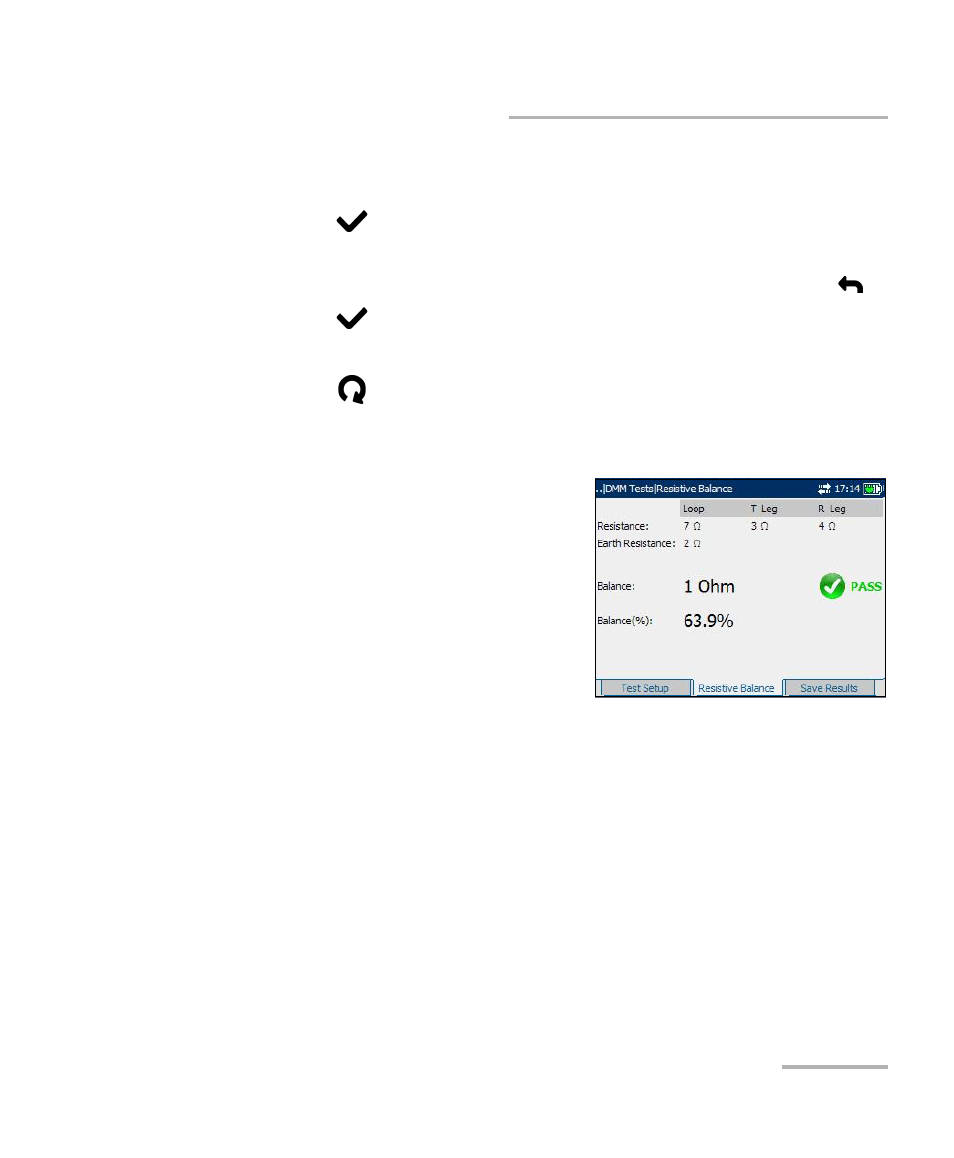

Resistive Balance

The Resistive Balance test measures
and compares the resistance of each
leg. This tests requires the Tip and Ring
wires to be shorted to earth/ground at
the far end of the circuit for a valid
measurement.
