Running CPE Tests
Copper, VDSL2, ADSL2+, and IP Triple-Play Test Set
173
Reading Results

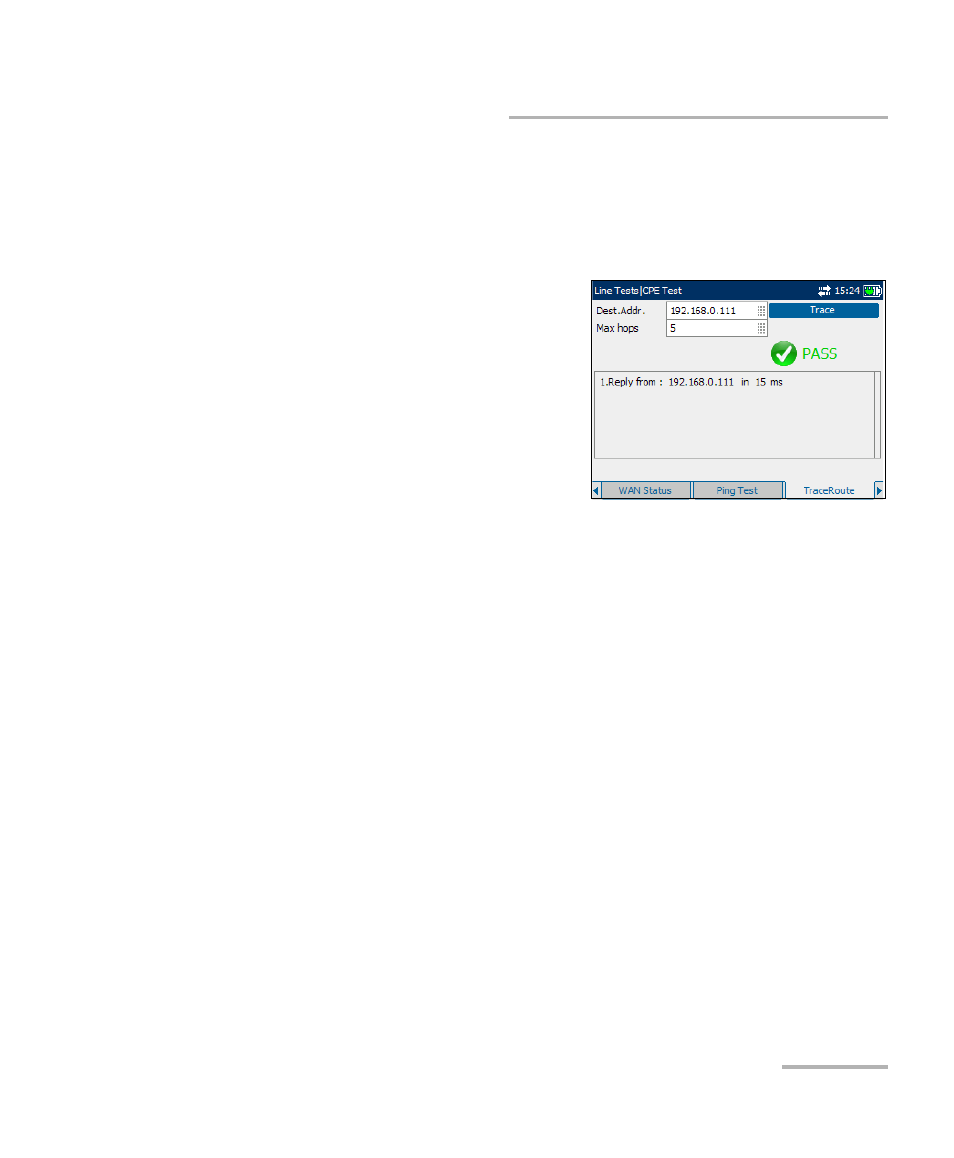

TraceRoute
The TraceRoute tab allows you to view the PASS/FAIL status of an IP
packet being sent to a specified IP destination, and the path and time taken
to do so.
The available test results are the
following:
³
Dest.Addr. is the destination IP or
URL address.
³
Max hops specifies the maximum
number of hops used in
attempting to reach the
destination address.
³
Trace button starts TraceRoute, displaying the test progress in the area
below.
