IPTV Analysis
Copper, VDSL2, ADSL2+, and IP Triple-Play Test Set 191
Reading Results

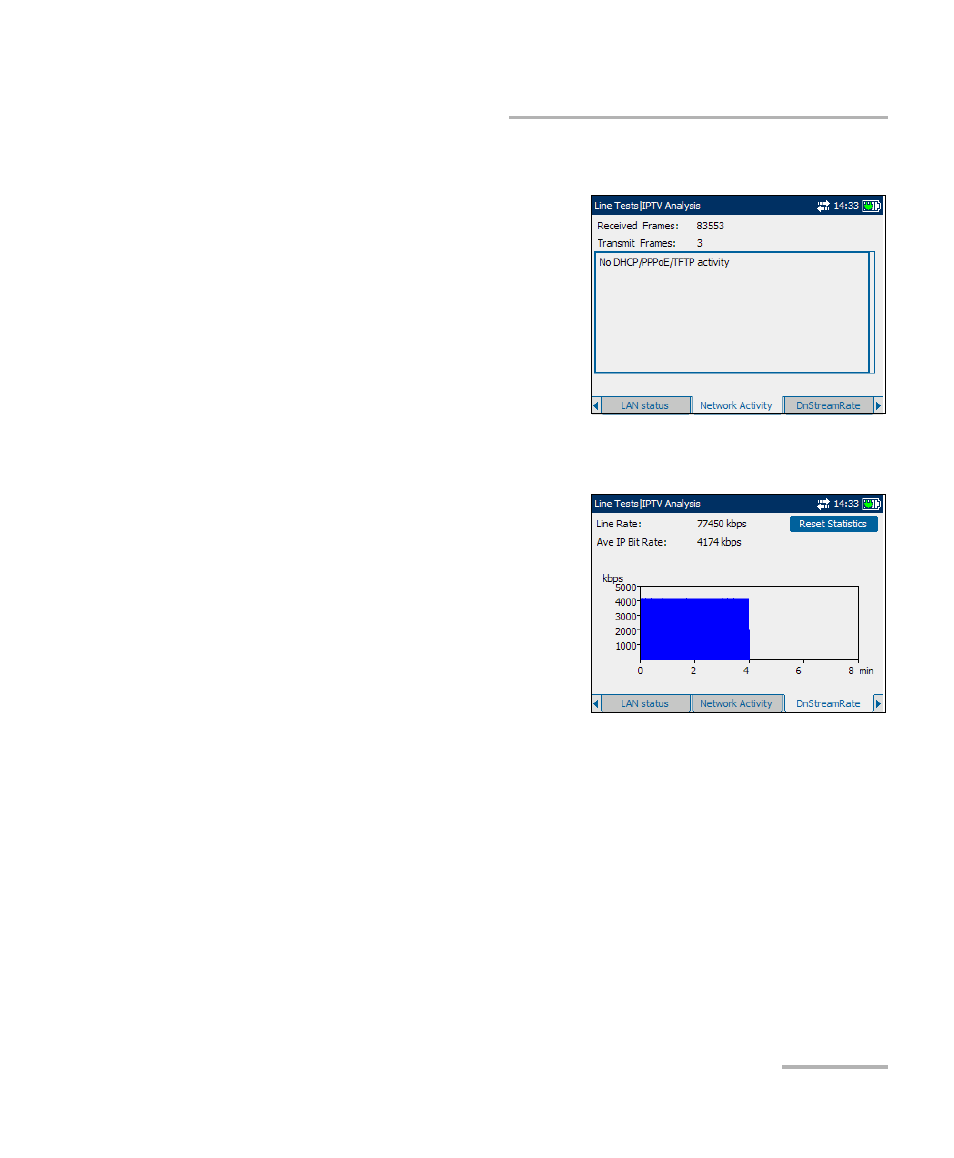

Network Activity
The Network Activity tab allows you to
view the PPPoE (point-to-point
protocol over Ethernet), DHCP
(dynamic host configuration protocol)
and TFTP (trivial file transfer protocol)
mode sessions resulting from the
video tests.
Down Stream Rate
The DnStreamRate tab allows you to view the bit rates of different layers
related to the IPTV service.
The available test results are the
following:
³
Line Rate is the actual rate
achieved by the circuit, in kbps.
³
Ave IP Bit Rate is the average IP
data rate for the IPTV service,
including all channels detected.
³
Reset Statistics button sets all
monitoring values to 0.
