Running CPE Tests
Copper, VDSL2, ADSL2+, and IP Triple-Play Test Set 169
Reading Results

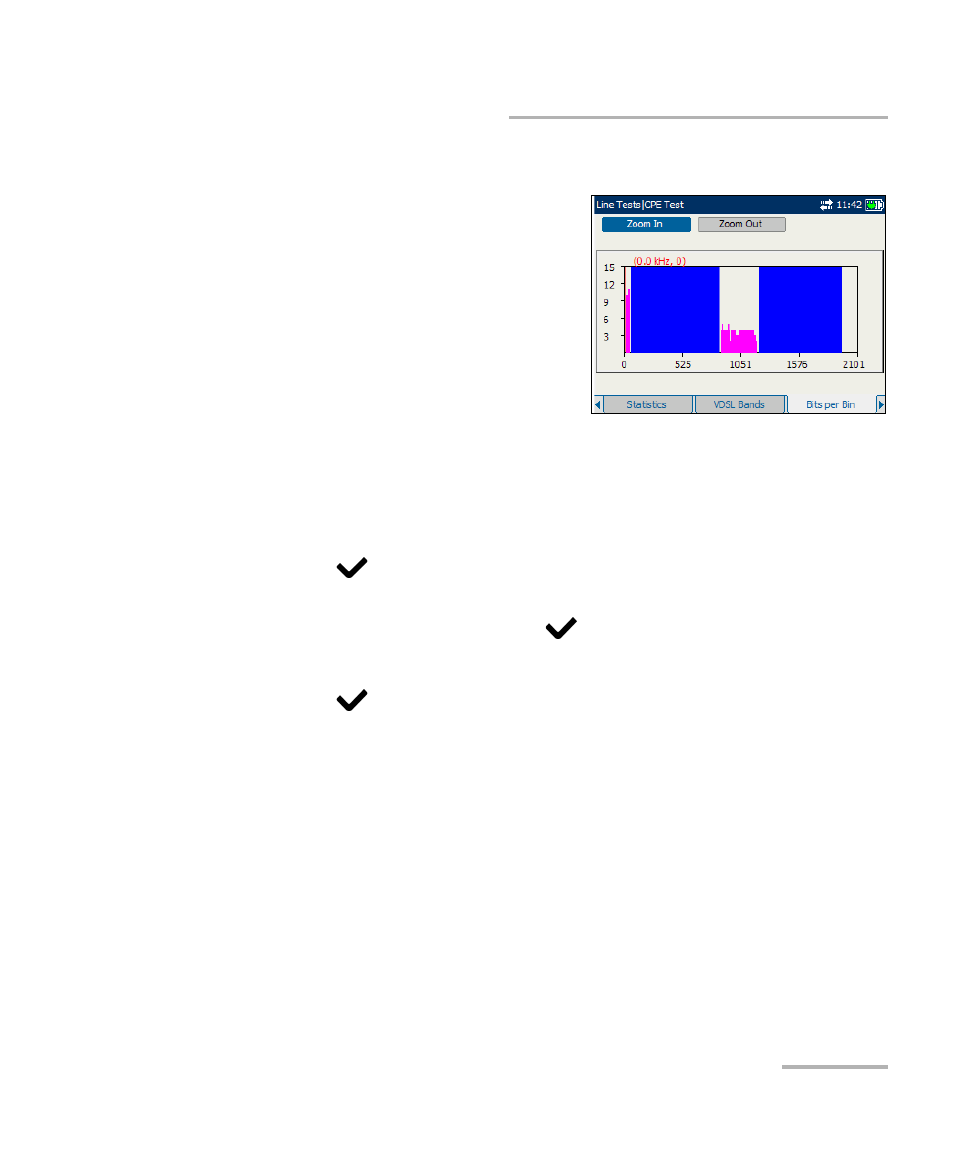

Bits per Bin
The Bits per Bin tab allows you to
view the number of bits that can be
transmitted on a particular bin
representing a certain tone. The
frequency of the tone equals the bin
number multiplied by 4.325 kHz.
³
Zoom In allows you to increase
the level of zoom for the selected
zoom function.
³
Zoom Out allows you to reduce the level of zoom for the selected
zoom function.
To zoom in or out:
1. Press the up or down arrow key to highlight the desired zoom function.
2. Press to select the zoom function.
3. Use the left or right arrow key to highlight the Zoom In or Zoom Out
button as required, then press .
The graphical display zooms in or out accordingly.
4. Press repeatedly to continue zooming.
