Auto CQ/Video-DSL Rate Prediction
Copper, VDSL2, ADSL2+, and IP Triple-Play Test Set
51

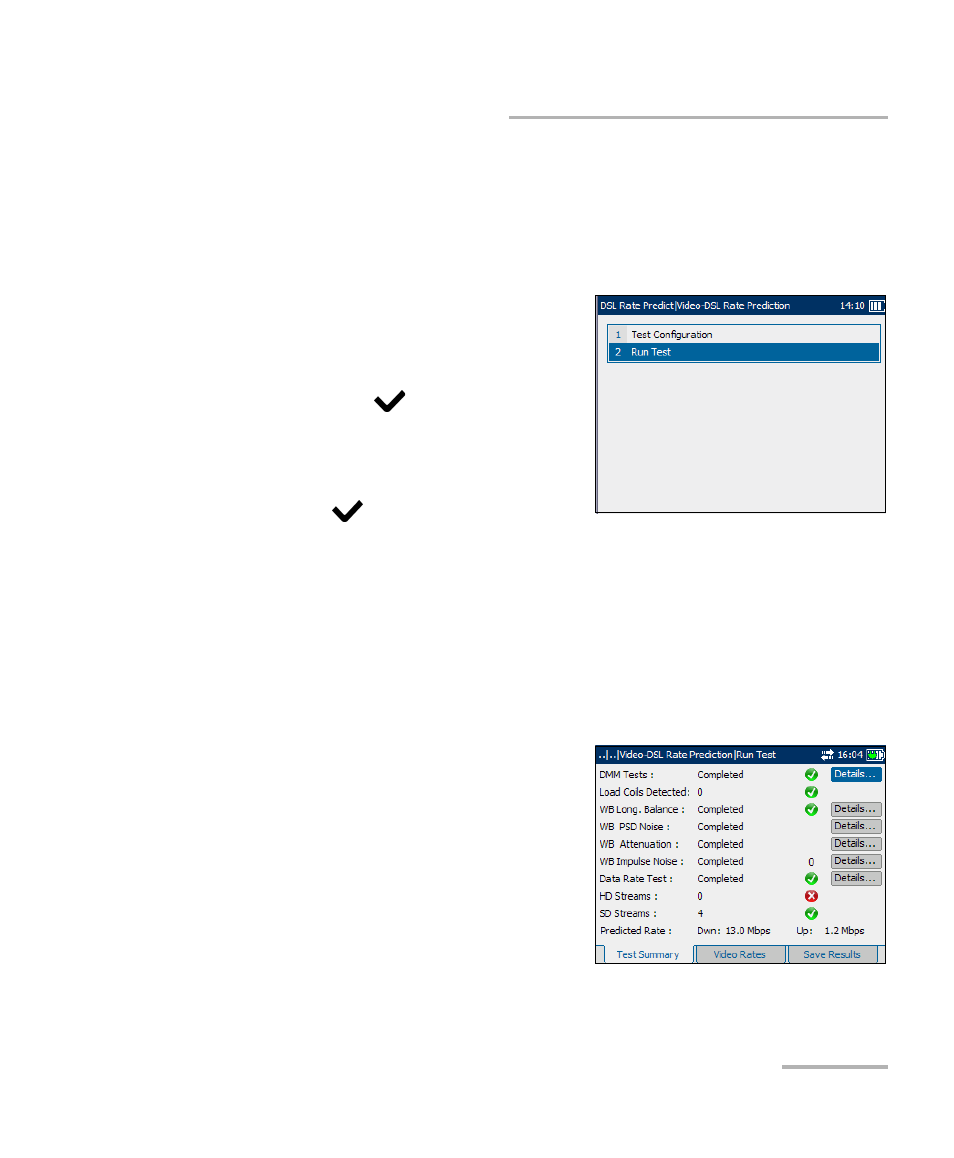

Running Video-DSL Rate Prediction Tests and Viewing Results
Running Video-DSL Rate Prediction Tests and
Viewing Results
Details of the video-data rate prediction results are located on the
Video-DSL Rate Prediction pane tabs.
To run the tests and view results:
1. From the Video-DSL Rate
Prediction pane use the up/down
arrow keys to highlight Run Test,
and press
.
2. Once the tests are completed,
highlight the Details button from
the Test Summary pane and
press
to view the results.
3. Press the F1, F2, or F3 key to view the various tabs. To view any
available additional tabs, use the function arrow keys on either side of
the F1 and F3 keys.
Test Summary
The Test Summary tab allows you to view the pass/fail status and Details
of all tests configured for auto testing.
The available test results are the
following:
³
DMM Tests or digital multimeter
tests detect AC/DC voltages, and
measure frequency, resistance and
capacitance for the copper wire
connection.
³
Load Coils Detected is the
number load coals detected in
the line.
