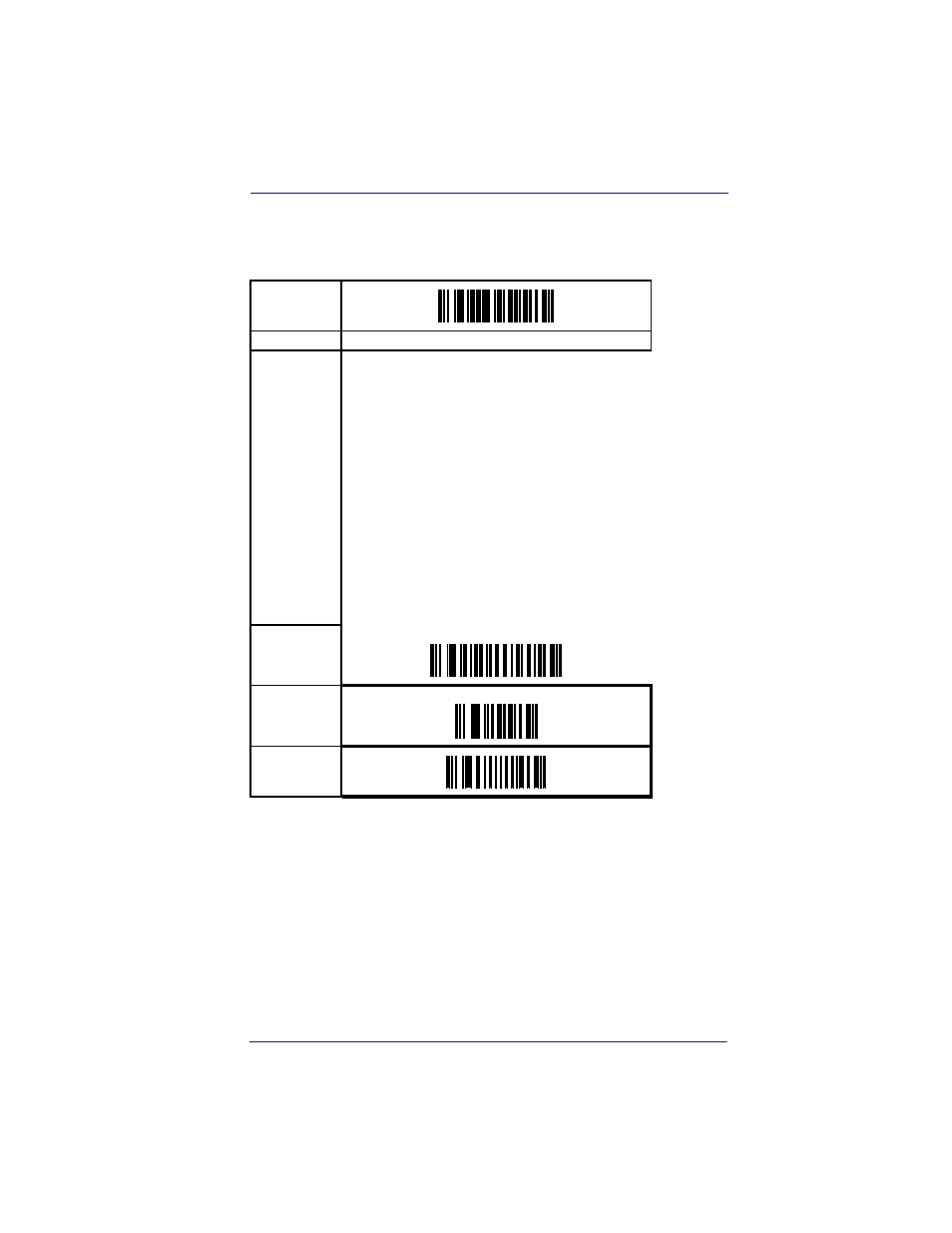

background image

Interface Features

Product Reference Guide

4-21

RS-232 Interface Features — cont.

ACK NAK Timeout Value

START

MODE

BARCODE

This item specifies the time the imager will wait for an
ACK character from the host following a label trans-
mission.
0 = Infinite timeout
1 - 75 = Timeout in 200-millisecond increments
To configure this feature, scan the “START” bar code
above to place the unit in Programming Mode, then
the “Set ACK NAK Timeout Value,” followed by the
digits from the Alphanumeric table in

Appendix B,

Alpha-Numeric Pad

representing your desired

value. Accept your selection by scanning the “SET”
bar code below and finally, exit programming mode
by scanning the “END” barcode below

DEFAULT SETTING FOR THIS FEATURE: 01

Set ACK

NAK Timeout

Value

SET

END
