Standard Cable Pinouts (Primary Interface Cables)
Product Reference Guide 8-3
USB
IBM Port 5B/9B/17
P i n 1 0
P i n 1

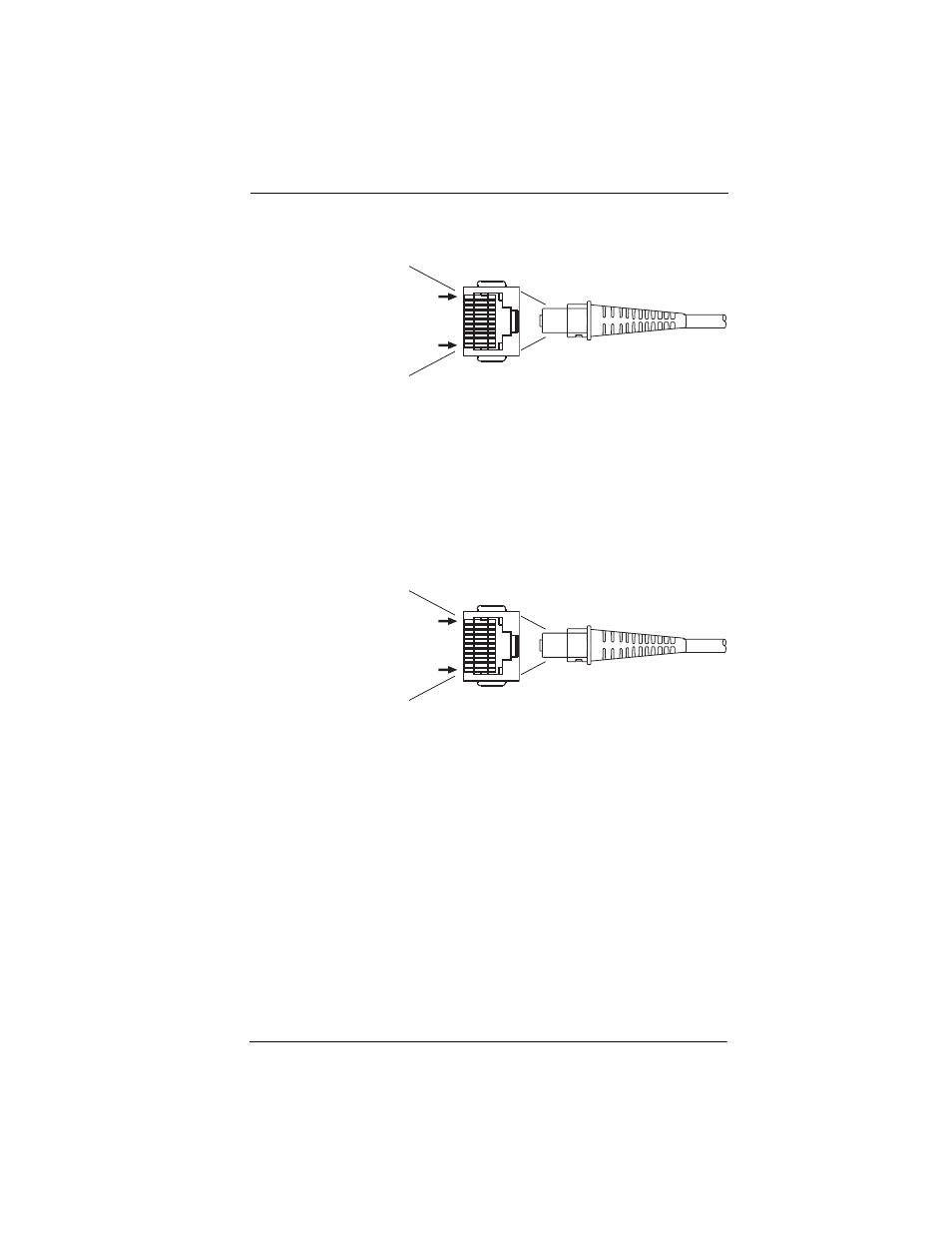

1 0 P i n M o d u l a r P l u g
( C o n n e c t s t o t h e i m a g e r m o d u l e )
1
2
3
4
D-
5
6
D+
7
8
VBUS_VIN
9 GND
10
P i n 1 0
P i n 1
1 0 P i n M o d u l a r P l u g
( C o n n e c t s t o t h e i m a g e r m o d u l e )
1
2
3
4
Serial I/O B
5
6
Serial I/O A
7
8
VCC_IN
9 GND
10
