62 Power Consumption
A.2 Power Supply Reference
Table A-2: Power Supply

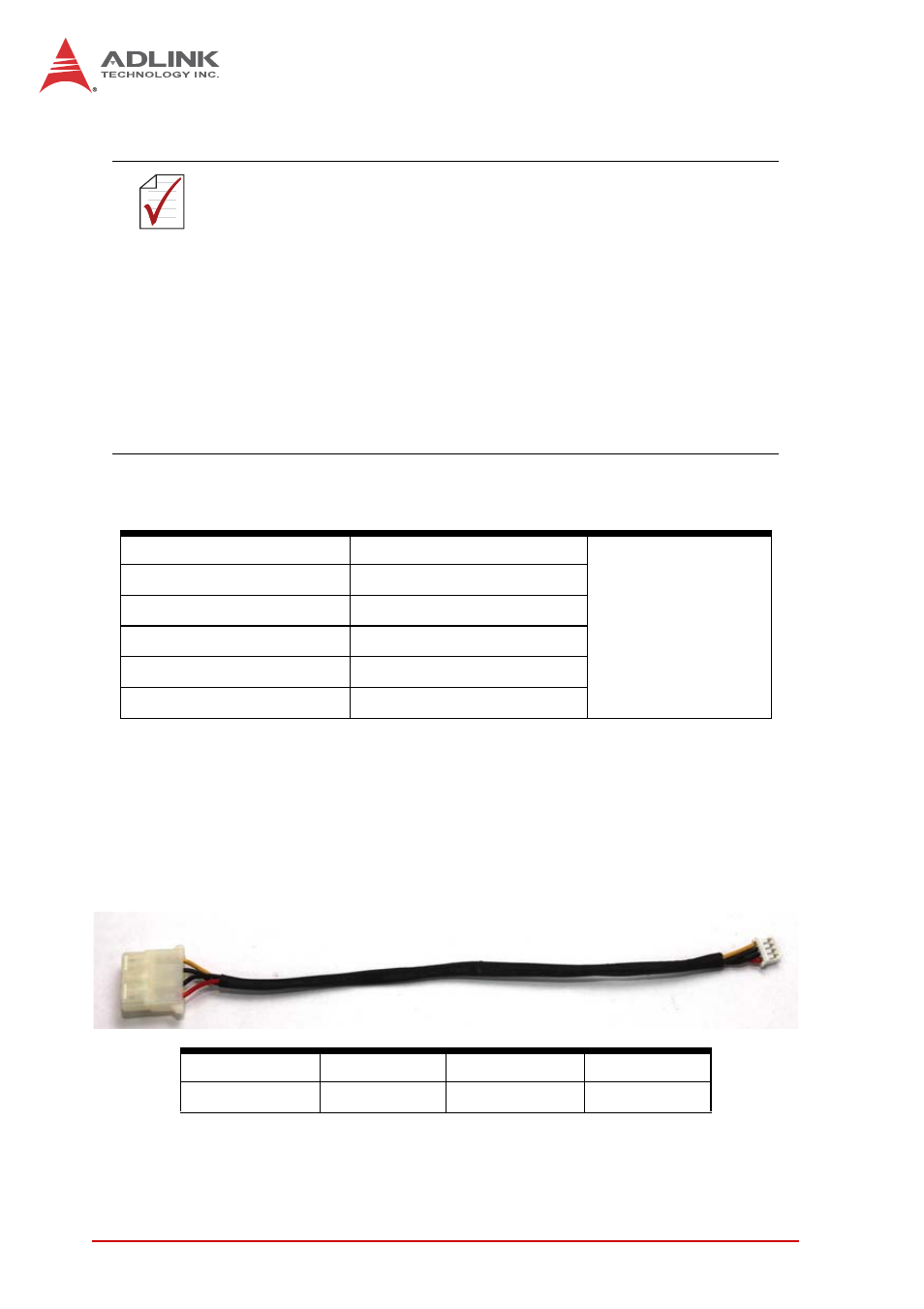

A.3 Accessory Cabling
Power supply to add-on cards is provided by the auxiliary power
cable (from CN23 to Molex 8981), Part Number 30-20724-0000.
NOTE: NOTE:
X Sufficient power supply for the entire system is
required to meet these specifications. At least
100W at 24V input is recommended.
X Heat generated by add-on PCI/PCIe adapters
affects thermal stability. Additional heat dissipa-
tion is required when the system operates at
high temperatures or in harsh environments with
add-on adapters.
X Power supply specifications shown are for
total power consumption of all PCI/PCIe slots
at once, not for single slot use.
+3.3V Power Rail Maximum 7A
Total Power Supply
Max. 25W
+5V Power Rail Maximum 5A
+12V Power Rail Maximum 2A
-12V Power Rail Maximum 0.2A
CN23 +12V Maximum 1A
CN23 +5V Maximum 1A
Yellow 12V Black GND
Black GND Red 5V
