48

Getting Started

2.5

Connecting and Using DisplayPort Extension

Devices

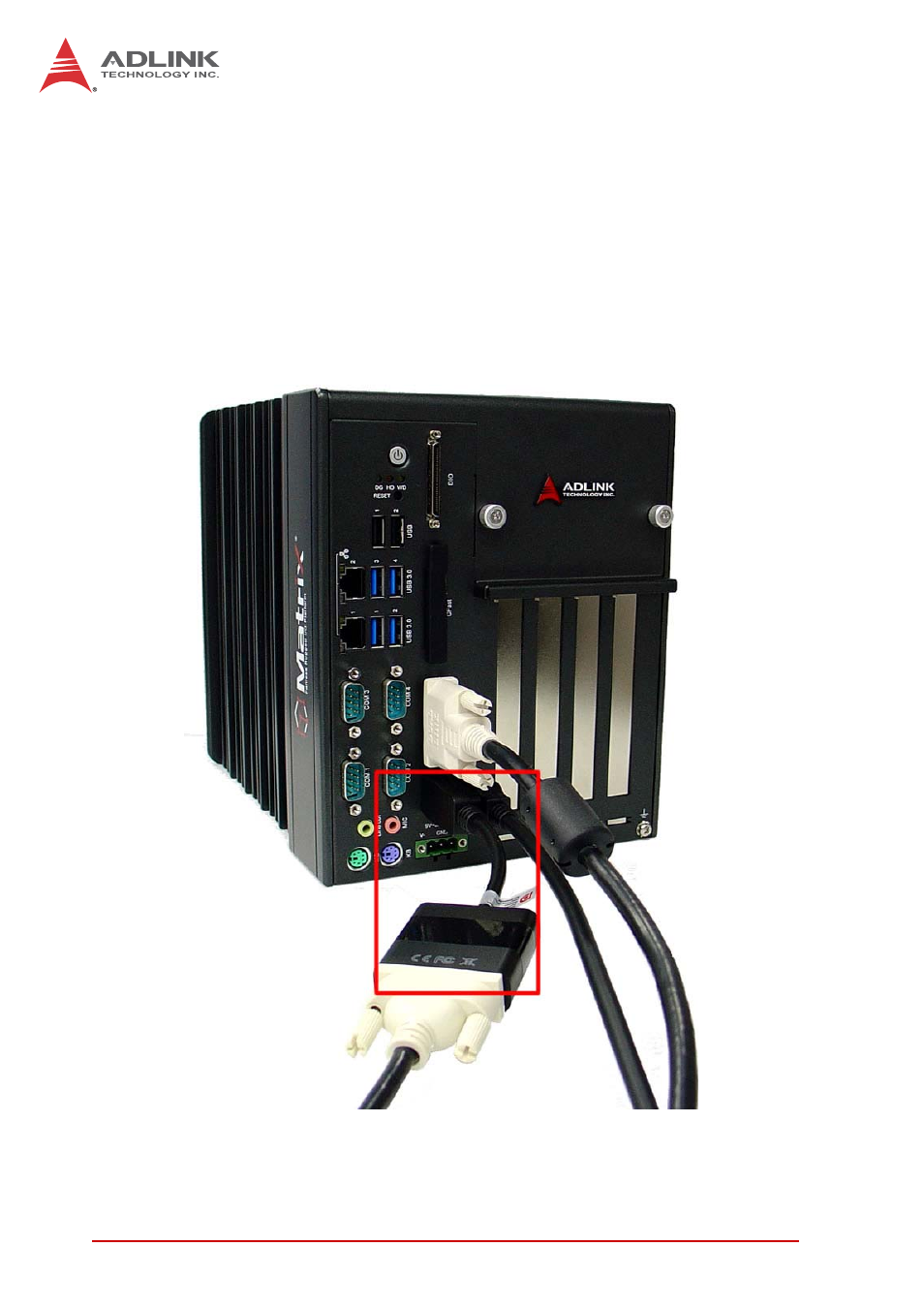

1. Connect a DisplayPort-to-DVI active adapter cable to the

MXC-6300 DisplayPort jack.

2. Connect a DVI monitor to a single-mode DisplayPort out-

put from the computer via a DisplayPort-to-DVI active
adapter cable (P/N# 30-01157-0000)
