Table 1-11: Maximum Available Resolutions with 3-Display Configuration

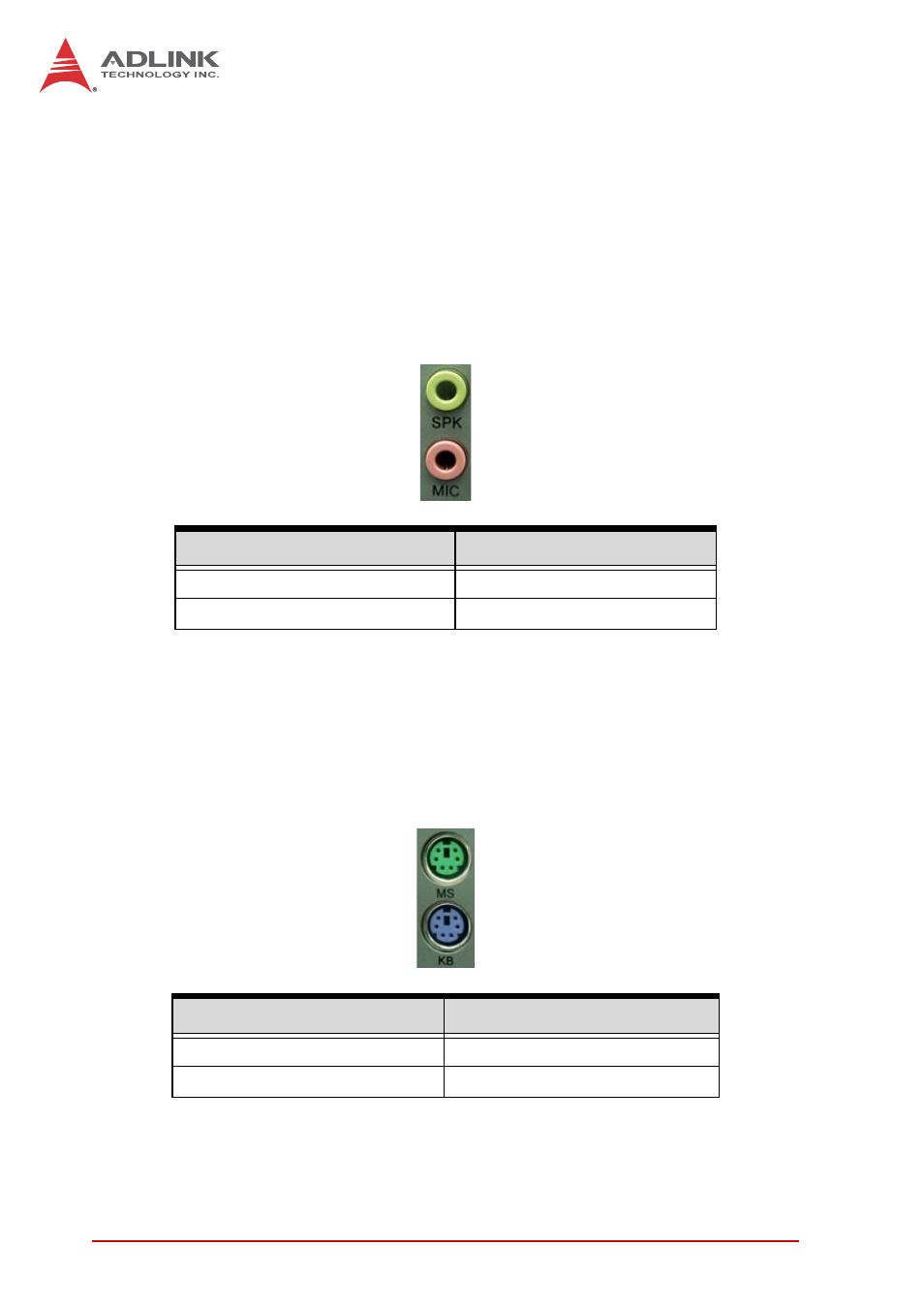

1.6.11 Audio Jacks
The MXC-6300 implements Intel High Definition audio on a
Realtek ALC269 chip. The HD audio supports up to 24-bit, 192
KHz sample rate high quality headphone/lineout and microphone
input. Audio jack access is on the front panel. The pink jack pro-
vides microphone input, and the green jack lineout.
Table 1-12: Audio Jack Signals
1.6.12 Keyboard & Mouse PS/2 Connectors
The MXC-6300 provides PS/2 connectors for keyboard and
mouse. The green connector provides PS/ 2 mouse connection
and the purple connector PS/2 keyboard
Table 1-13: PS/2 Connector Signals
Color Signal
Green lineout
Pink Mic In
Color Signal
Green Mouse
Purple Keyboard
