28 Introduction

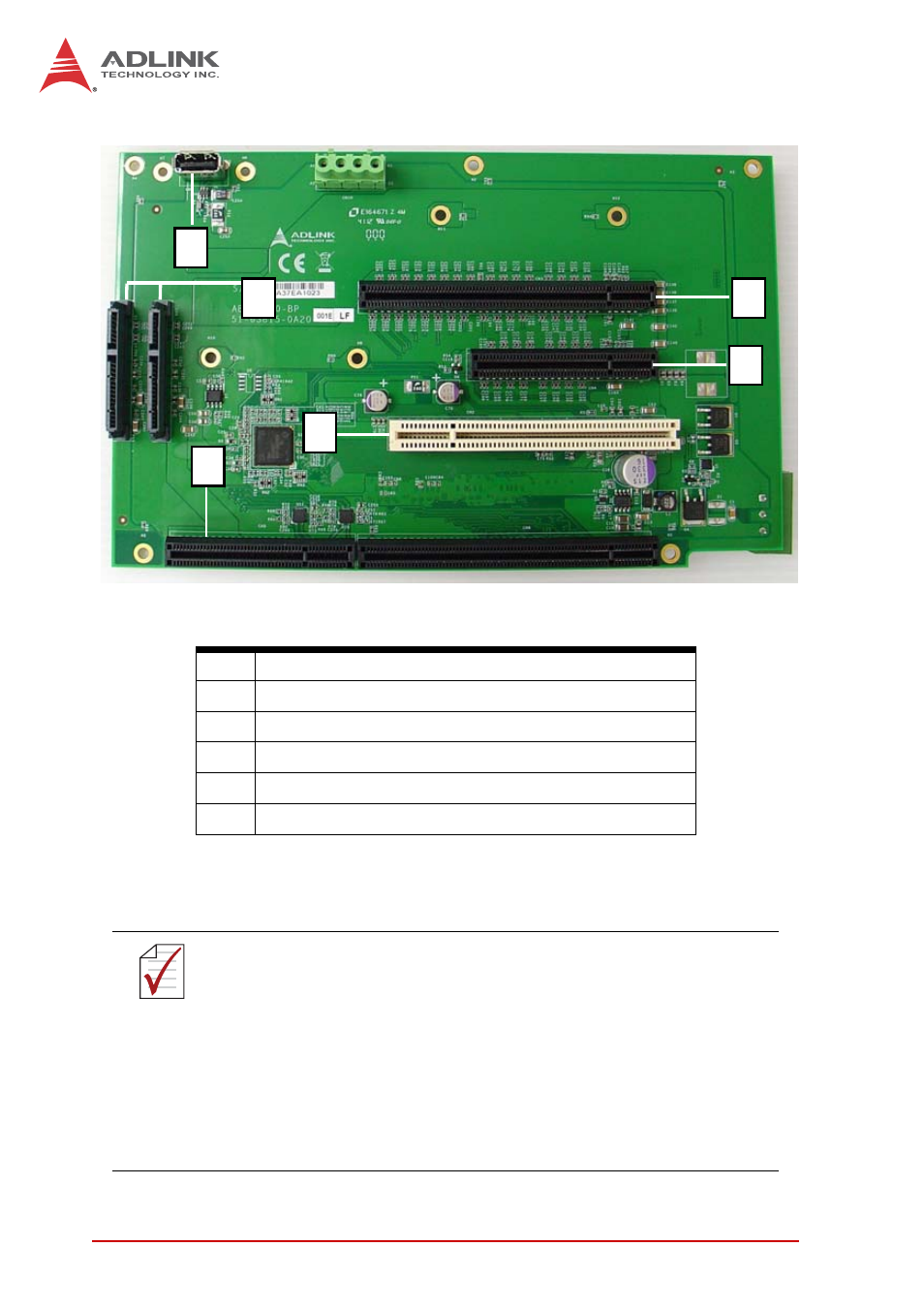

Figure 1-15: Backplane Board PCB
Table 1-16: Backplane Board Connector Legend
A PCI express x16 slot
B PCI express x8 slot
C 32bit 5V PCI slot
D Internal USB connector
E SATA connector x2
F Backplane board to mainboard PCB connector
NOTE: NOTE:
Recommended expansion slot configuration options for MXC-
6300 (not applicable for MXC-6310):
X 1 x PCI card + 1 x PCIe x16, with PCIe x8 slot
empty
OR
X 1 x PCI card + 1 x PCIe x8 (in PCIe x8 slot)+ 1 x
PCIe x8 (in PCIe x16 slot)
For best results, other configurations are not recommended
B
C
D
A E
F
