20 Introduction
Table 1-5: Active/Link LED
Table 1-6: Speed LED
1.6.7 CFast Socket
The Matrix MXC-6300 is equipped with a Type II Push Push
CFlash host connector on the front panel, by SATA interface. Data
transfer rates up to 3.0Gb/s(300MB/s)/1.5Gb/s(150MB/s) are sup-
ported. The host SATA controller provides a legacy operating
mode using I/O space, and an AHCI operating mode using mem-
ory space. The CFast card can function as a storage device for
system installation.

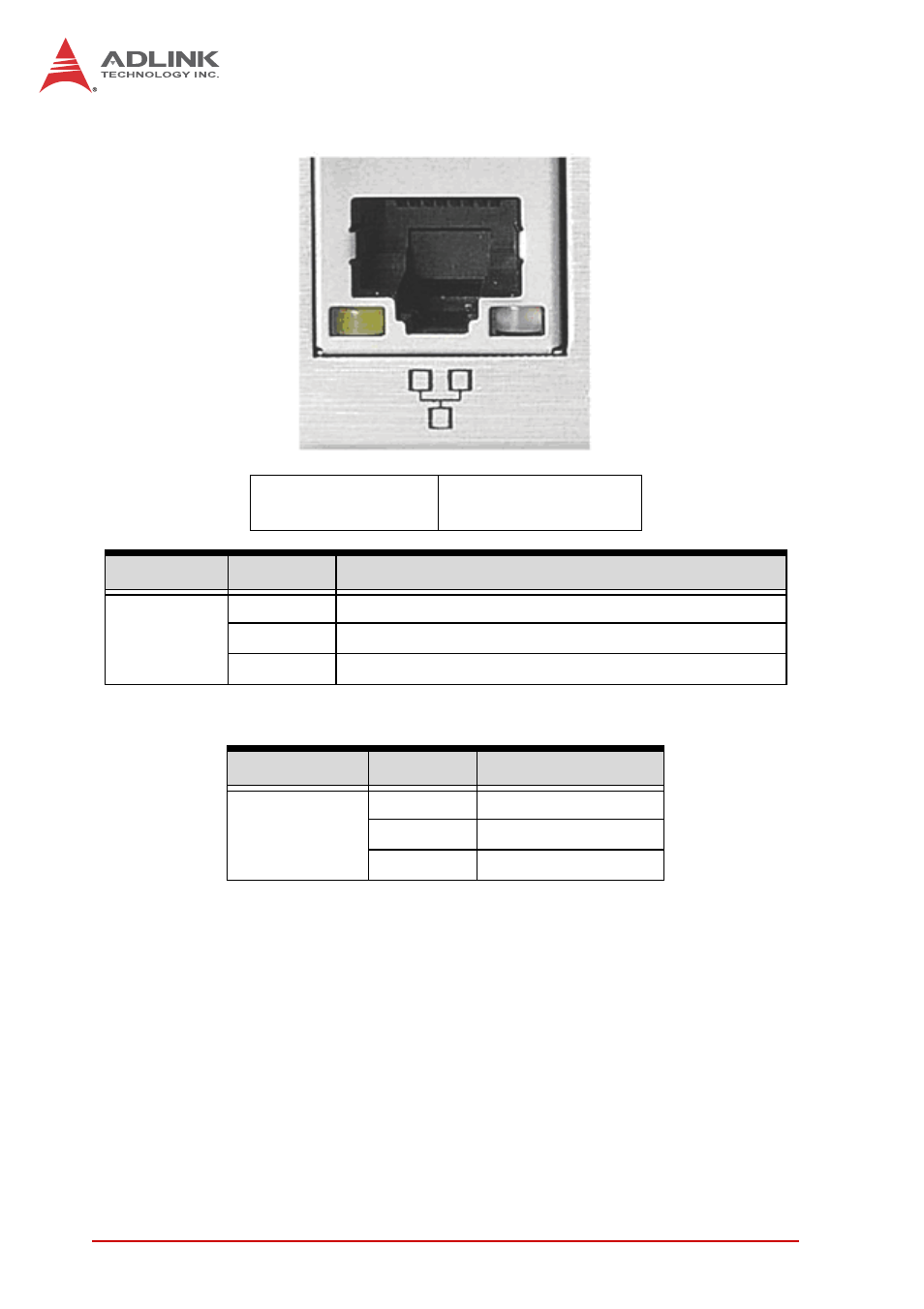

Active/Link
Yellow
Speed LED
Green/Orange
LED Color Status Description
Yellow
OFF Ethernet port is disconnected.
ON Ethernet port is connected with no activity.
Flashing Ethernet port is connected and active.
LED Color Status Description
Green/Orange
OFF 10 Mbps
Green 100 Mbps
Orange 1000 Mbps
