Page 66
54
Getting Started

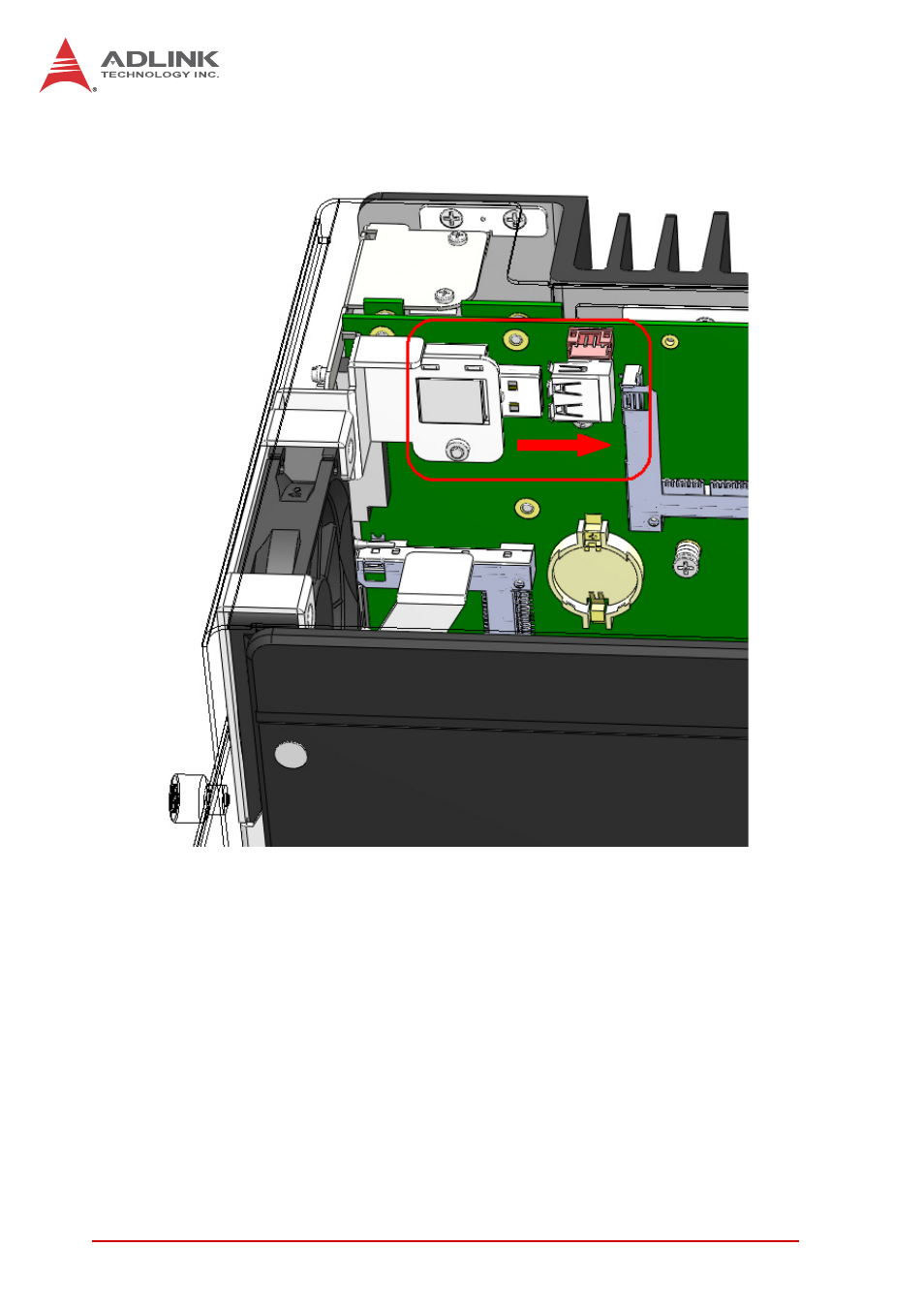

2. Slide the fan module back until USB connection is
secured, as shown.
3. Replace the thumbscrews.
2.9
Cooling Considerations
Heat-generating components of the MXC-6300 (such as CPU and
PCH) are all situated on the left side of the system. These compo-
nents directly contact the heat sink via thermal pads and dissipate
heat generated by the components. To maximize efficiency of heat
dissipation, maintain a minimum of 2 inches (5 cm) clearance on
the top of the MXC-6300 controller.
