Introduction
31
MXC-6300
1.7.4
LVDS Interface Connector
The MXC-6300 provides an internal LVDS interface connector.
The LVDS interface can support dual channel LVDS signals.

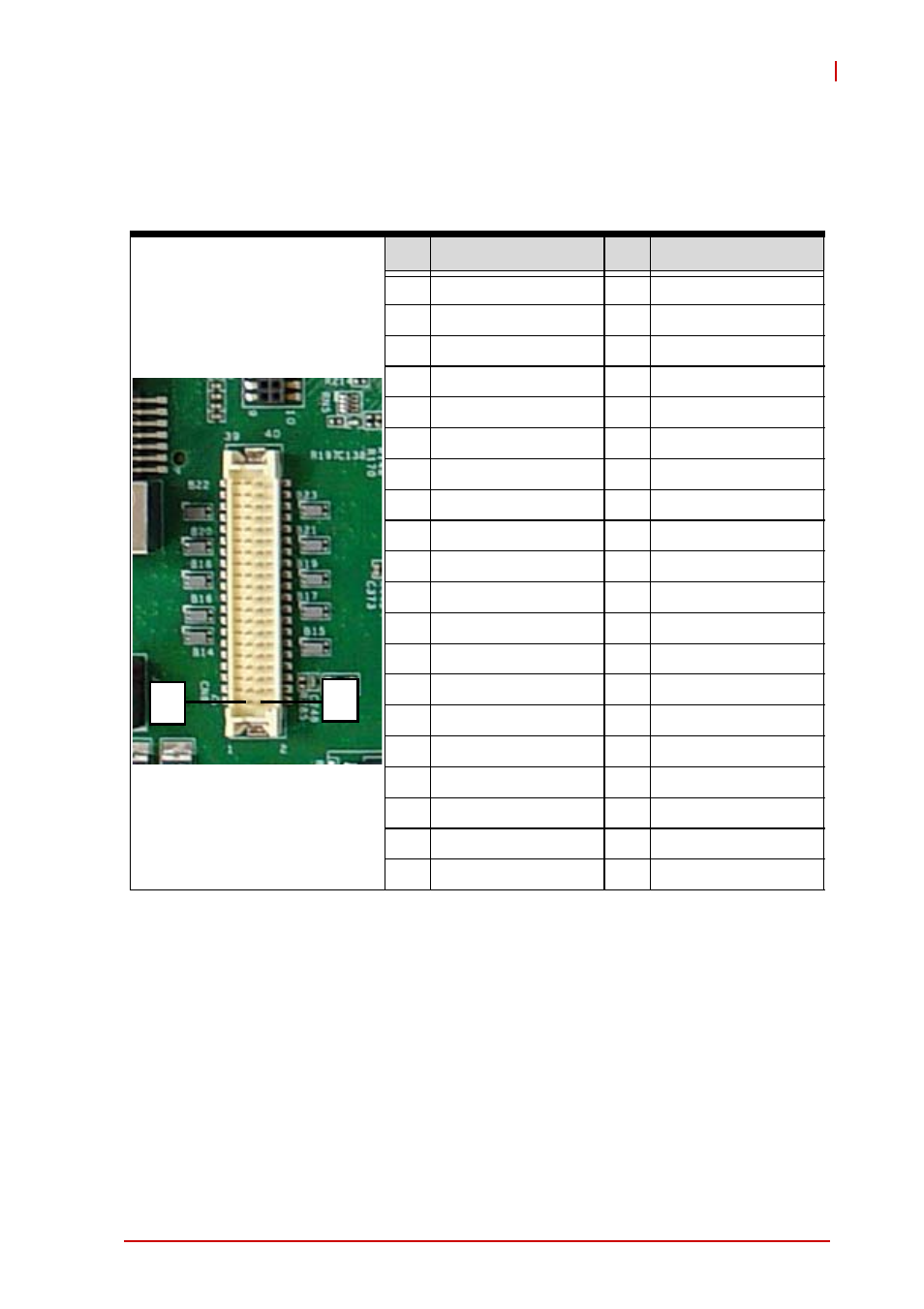

Table 1-19: LVDS Connector Pin Functions
1.7.5
12V DC Fan Connector
The MXC-6300 provides a DC 12V to USB connector for fan mod-
ule power. The optional fan module connects to the connector
when assembled to the chassis.
Fan speed changes with CPU temperature according to thermal
sensor, initiating at 40°C(104°F), and reaching maximum speed at
Pin
Signal
Pin
Signal
1
LVDS_VCC
2
LVDS_VCC
3
LVDS_VCC
4
LVDS_VCC
5
GND
6
GND
7
GND
8
GND
9
LVDS_A_CLK+
10
LVDS_B_CLK+
11
LVDS_A_CLK-
12
LVDS_B_CLK-
13
GND
14
GND
15 LVDS_A_DATA0+ 16 LVDS_B_DATA0+
17
LVDS_A_DATA0-
18
LVDS_B_DATA0-
19
GND
20
GND
21 LVDS_A_DATA1+ 22 LVDS_B_DATA1+
23
LVDS_A_DATA1-
24
LVDS_B_DATA1-
25
GND
26
GND
27 LVDS_A_DATA2+ 28 LVDS_B_DATA2+
29
LVDS_A_DATA2-
30
LVDS_B_DATA2-
31
GND
32
GND
33 LVDS_A_DATA3+ 34 LVDS_B_DATA3+
35
LVDS_A_DATA3-
36
LVDS_B_DATA3-
37
GND
38
GND
39
LDDC_CLK
40
LDDC_DATA
1
2
