Introduction

MXC-6300

1.7.1

Clear CMOS Jumper

Upon encountering an abnormal condition preventing the MXC-
6300 from booting, the jumper can clear the BIOS content stored
in CMOS and restore default settings. To clear CMOS, short pin #1
to pin #2 of JP1 and then remove the jumper to return to normal
mode.

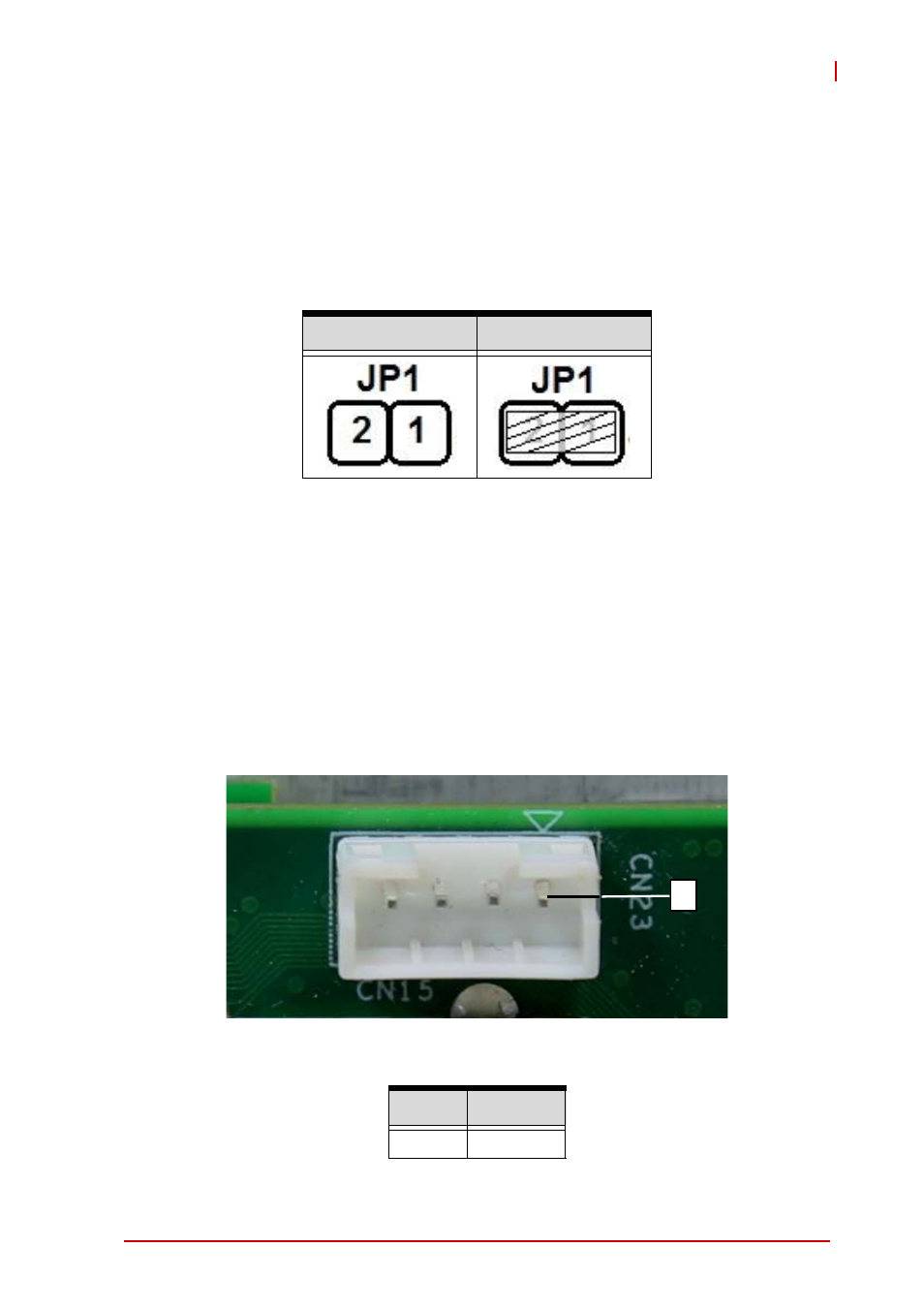

Table 1-17: Clear CMOS Jumper Settings

1.7.2

Internal Reserved +5V and +12V Connector

The MXC-6300 provides one power pin header with +5V and
+12V DC power, providing access for PCI and PCI express card
external power supplies.

Please refer to Section A.2:Power Supply Reference for +5V and
+12V connector power supply specifications

Figure 1-16: +5V and +12V Connector

Normal

Clear

Pin

Signal

+12V
