Introduction

27

MXC-6300

1.7

Internal I/O connectors

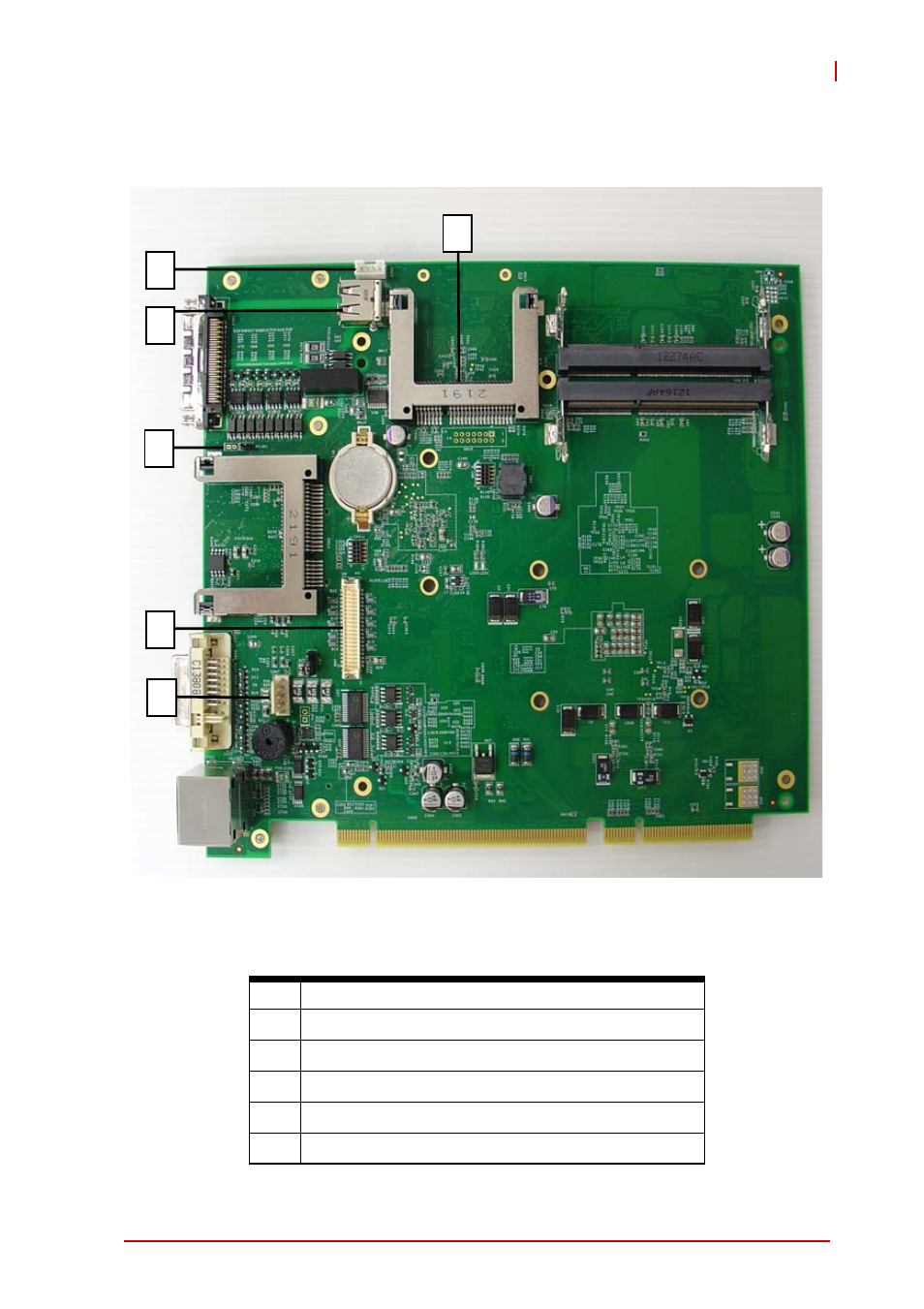

Figure 1-14: Mainboard PCB

Table 1-15: Mainboard Connector Legend

A

Clear CMOS jumper

B

Internal reserved +5V and +12V connector

C

Internal CFast Card connector

D

LVDS interface connector

E

12V DC fan connector

F

LVDS panel backlight control connector

A

C

B

F

D

E
