CONNECTIONS
Before connecting the AC cord
The rated votage of your unit shown on the rear panel is 120V
AC. Check that the rated voltage matches your local voltage.
IMPORTANT
• Connect the speakers, antennas, and all optional equipment
first. Then connect the AC cord in the end.
• Position the front speakers so that the side ducts face away
from the main unit as shown in the illustration in page 1.
• There are no difference between the surround speakers. Both
speakers can be connected as L (left) or R (right).

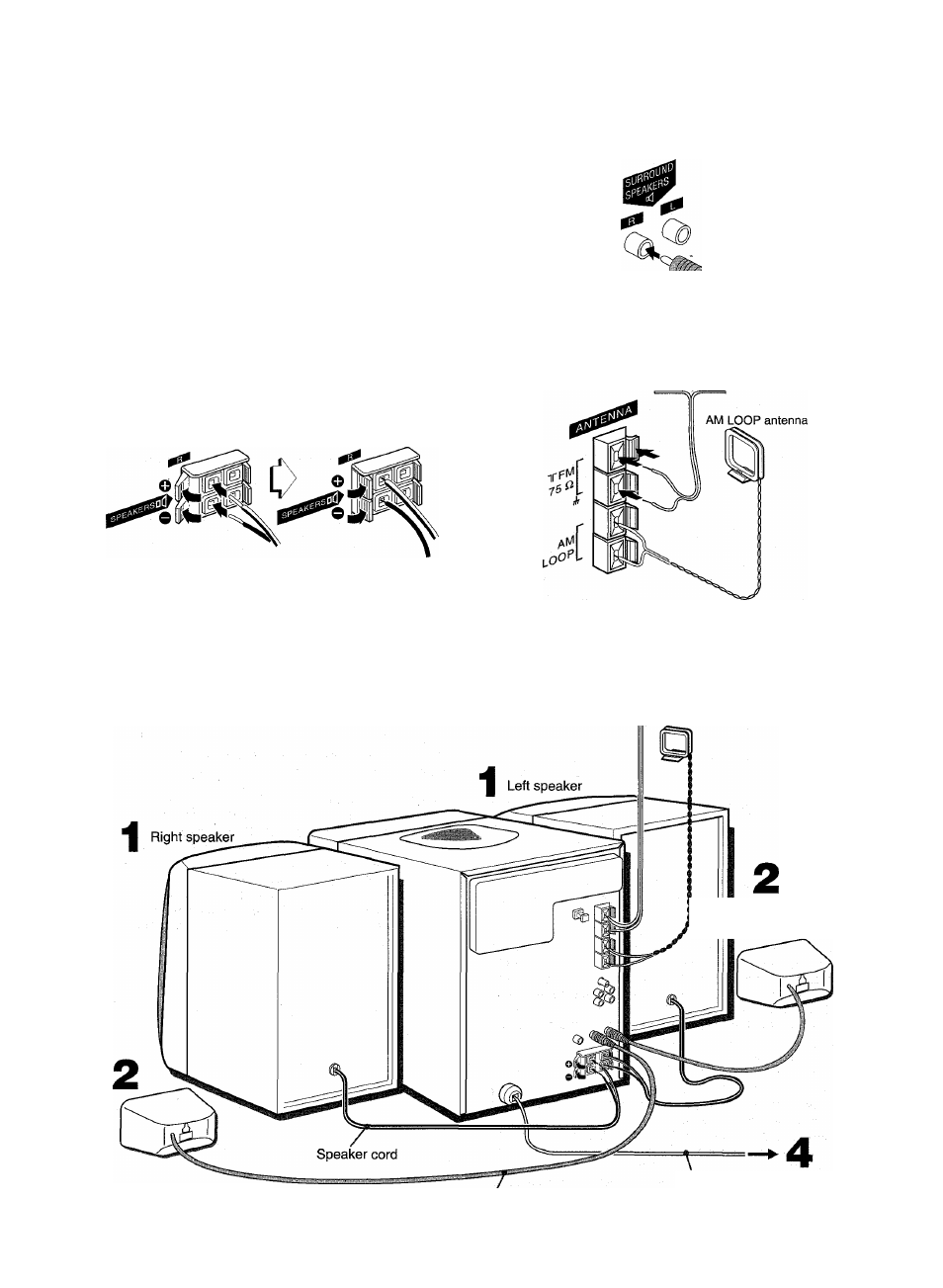

1 Connect the right and left speakers to the main
unit.
Connect the right speaker cord to the SPEAKERS R terminals,
and left to the SPEAKERS L terminals.
The speaker cord with the white stripe should be connected
to the O terminal and the black cord to the O terminal.
2 Connect the surround speakers to the main unit.
Connect the right surround speaker cord to the SURROUND
SPEAKERS R terminal, and left to the SURROUND
SPEAKERS L terminal.
3 Connect the supplied antennas.
Connect the FM antenna to the FM 75
Q.
terminals and the
AM antenna to the AM LOOP terminals.
FM antenna
4 Connect the AC cord to an AC outlet.
FM antenna
AM antenna
Left surround
speaker
Right surround speaker
AC cord
Surround speaker cord
