13. Slide the square nut (provided with battery
hardware) into the positive (+) terminai. Slide
the rubber boot back which is on the positive
cable. Place the positive (heavy red wire)
cable and the small red wire (with a fuse
holder in if on the positive terminal. Secure
----- with screw and lock washer provided. See
figure 13.
14.Slide the square nut (provided with battery
hardware) into the negative (-) terminal.
Place the negative (heavy red wire) cable on
the negative terminal. Secure with screw and
lock washer provided.

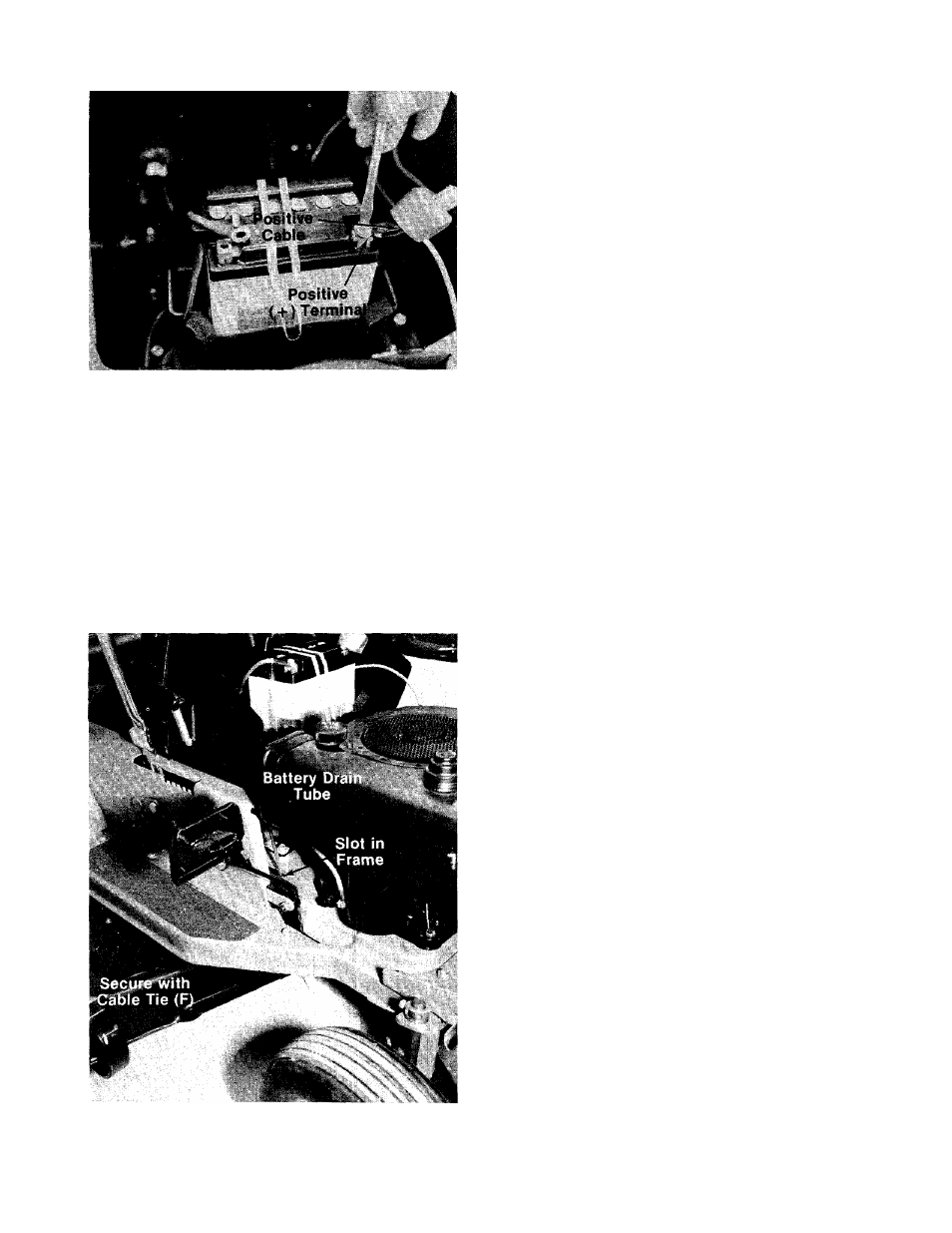

FIGURE 13.
15.-Feed the plastic drain tube through the slot in
------the frame as shown in figure 14.
16. Using cable tie (F), secure battery drain tube
to the shoulder bolt at the brake pedal,
underneath the deck. Cut off excess end of
cable tie. See reference number 40 on page
26.
FIGURE 14.
