Models 390 and 395

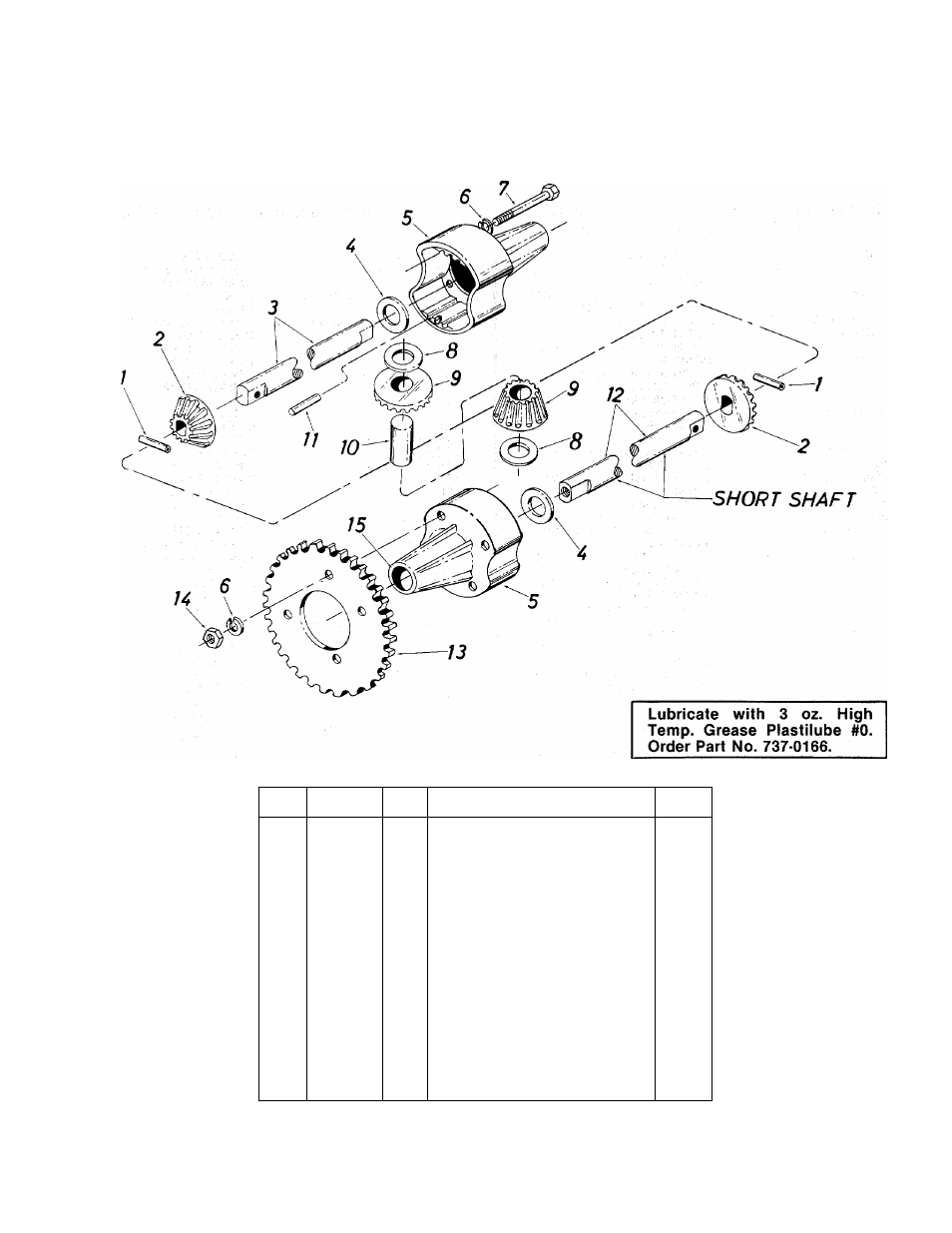

PARTS LIST FOR D FFERENTIAL ASSEMBLY 717-0318
REF.
NO.
PART
NO.
Qty.
Req’d.
DESCRIPTION
NEW
PART
1
715-0247 2
Spring Pin Spiral 3/16" Dia. x
1.00" Lg.
2
748-0156 2
Gear—Double “D” Hole
3
738-0302
1
Shaft (Long)—15.11" Lg.
4
736-0188 2
FI-Wash. .760 I.D. x 1.49 O.D.
5
719-0150
2
Housing Half
6
736-0119
8
L-Wash. 5/16" I.D.*
7
710-0526 4
Hex Bolt 5/16-24 x 4.00" Lg.
8
736-0187
2
FI-Wash. .640 I.D. x .24 O.D.
9
748-0158
2
Gear—Round Hole
10
711-0276
1
Drive Pin
11
715-0123 2
Dowel Pin 3/16" Dia. x .62"
Lg.
12
738-0303
1
Shaft (Short)—7.58" Lg.
13
09054
1
Sprocket—40 Teeth
14
712-0237
4
Hex Cent. L-Nut 5/16-24 Thd.
15
748-0169
2
Flange Bearing
'For faster service obtain standard nuts, bolts and washers
locally. If these items cannot be obtained locally, order by
part number and size as shown on parts list.
