5. Transmission—It is lubricated at the factory
with 12 ounces of E.P. Lithium grease. The
grease should only be checked or replaced if
the transmission is disassembled for repair.
6. Steering Column Bearings (2)—Oil once a
season with iight oil.
7. Rear Axle Bearings (3)—They require no
lubrication. See figure 28.
I
WARNING
Do not get oil on the sprocket or
brake pads.
Change oil after first 5 hours of operation.
Thereafter change oil every 25
hours of
operation.
Remove oil drain plug and drain oil while engine is
warm. Replace drain plug. Remove dipstick and
refill with new oil of proper grade. Replace
dipstick. See figure 29.

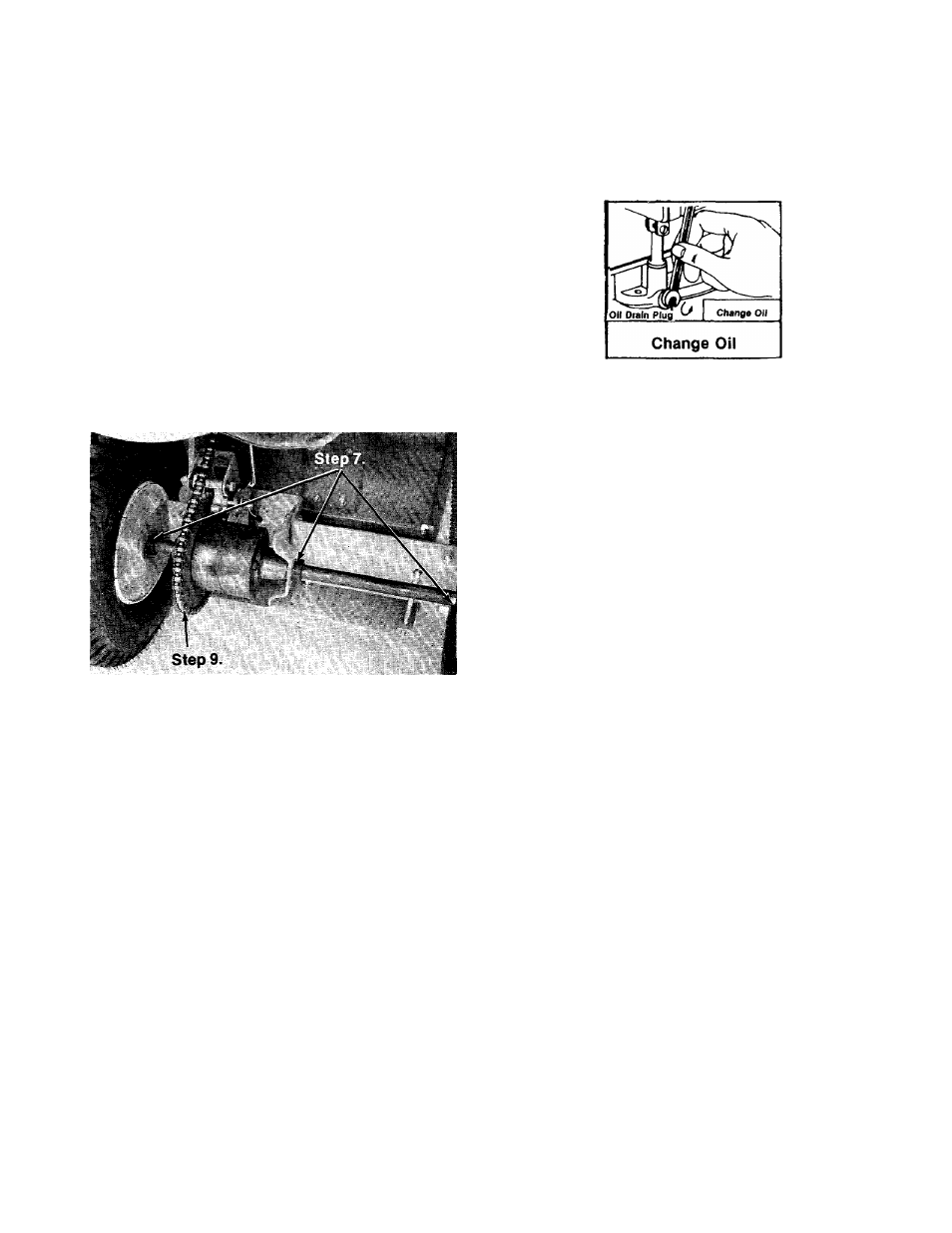

FIGURE 29.
FIGURE 28.
8. Steering Shaft Bearings (2)—They require no
lubrication.
9. Chain—Remove and clean with kerosene.
Lubricate with an oil soaked rag. See figure
28.
The following items have sealed bearings and re
quire no further lubrication.
Blade Spindle Bearings
Tie Rod Ends
Idler Bearings
MAINTENANCE
CRANKCASE OIL
To ensure maximum engine performance, perform
the following periodic maintenance:
Check oil level before starting engine and after
every 5 hours of operation. Be sure oil level is
maintained to FULL mark on dipstick.
MOWER DECK
The underside of the mower deck should be
cleaned after each period of use as grass clip
pings, leaves, dirt and other matter will ac
cumulate. This accumulation of grass clippings,
etc., is undesirable as it will invite rust and corro
sion and may cause an uneven discharge of grass
clippings at the next mowing.
The deck may be cleaned by washing with a
stream of water from a garden hose.
Be sure to disconnect the spark plug wire and
ground it while performing this maintenance.
CUTTING BLADE
A. Removal for Sharpening or Replacement
^ WARNING I
Be sure to disconnect and ground
the spark plug wire and remove
ignition key before working on the
cutting blade to prevent accidental
engine starting.
1. Remove the large bolt and lock washer which
holds the blade and adapter to the blade spin
dle.
2. Remove the blade and adapter from the spin
dle. Be careful not to lose the key on the spin
dle.
3. If the blade or blade adapter needs replacing,
remove the two small bolts, lock washers and
nuts which hold the blade to the adapter.
B. Sharpening
Remove the cutting blade by following the direc
tions of the preceding section.
16
