Tighten the adjusting nuts until the proper chain
tension is obtained. See figure 25.

Tighten the locking nuts on the rear axle. See
figure 24.

AdjustFhg Nuts

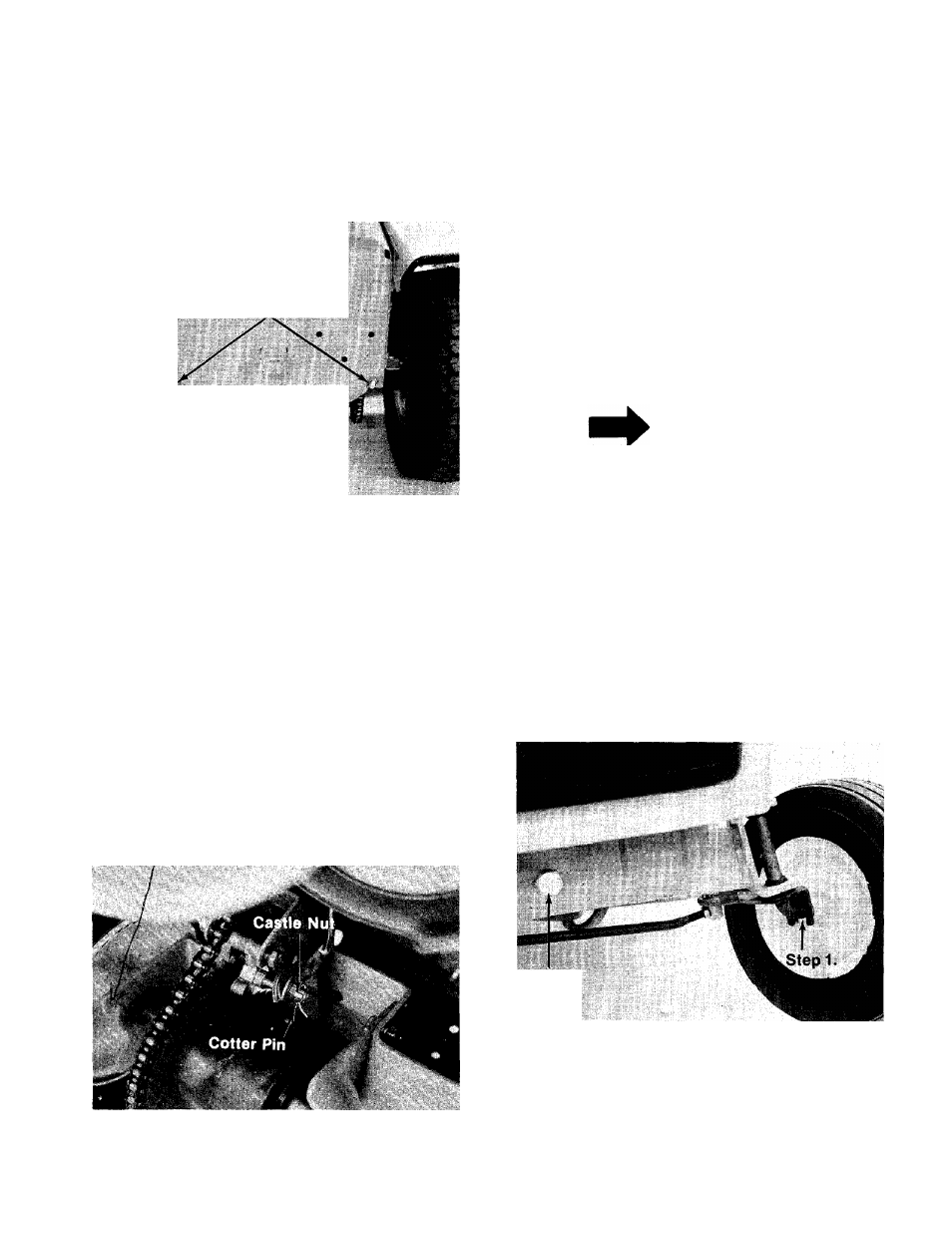

FIGURE 25.

BRAKE ADJUSTMENT (See figure 26)
During normal operation of this machine, the
brake is subject to wear and will require periodic

examination and adjustment.

The brake is located by the right rear wheel inside
the frame. To adjust the brake, remove the cotter

pin. Tighten the castle nut one half turn and then

test the brakes. After attaining the proper adjust

ment, replace the cotter pin.

F3R

CARBURETOR ADJUSTMENT

I* *

warn

V^|

If any adjustments are made to the

engine while the engine is running
(e.g.

carburetor),

disengage

all

clutches, blades. Keep clear of all
moving parts. Be careful of heated
surfaces and muffler.

If carburetor adjustment is required, refer to the

separate engine manual packed with your lawn
tractor.

LUBRICATION

IMPORTANT

Always stop engine and disconnect
spark plug wire before cleaning,
lubricating or doing any kind of
work on lawn tractor.

1. Front Wheel Bearings (4)—Lubricate with

light oil once a season. See figure 27. A 4 oz.
plastic bottle of light oil lubricant is available.
Order part number 737-0170. Engine oil may

also be used.

2. Steering Gears—Lubricate the two gears with

automotive multi-purpose grease once a
season.

3. Pivot Bolt—Lubricate with light oil once a

season. See figure 27.

FIGURE 26.

Step 3.

FIGURE 27.

4. Differential—It is lubricated at the factory

with 3 ounces of high temperature grease

(450°F.). The grease should only be checked
or replaced if the differential is disassembled
for repair. See figure 28.
