Bolens 132-395A - Manual (Page 18)

tvVi-'

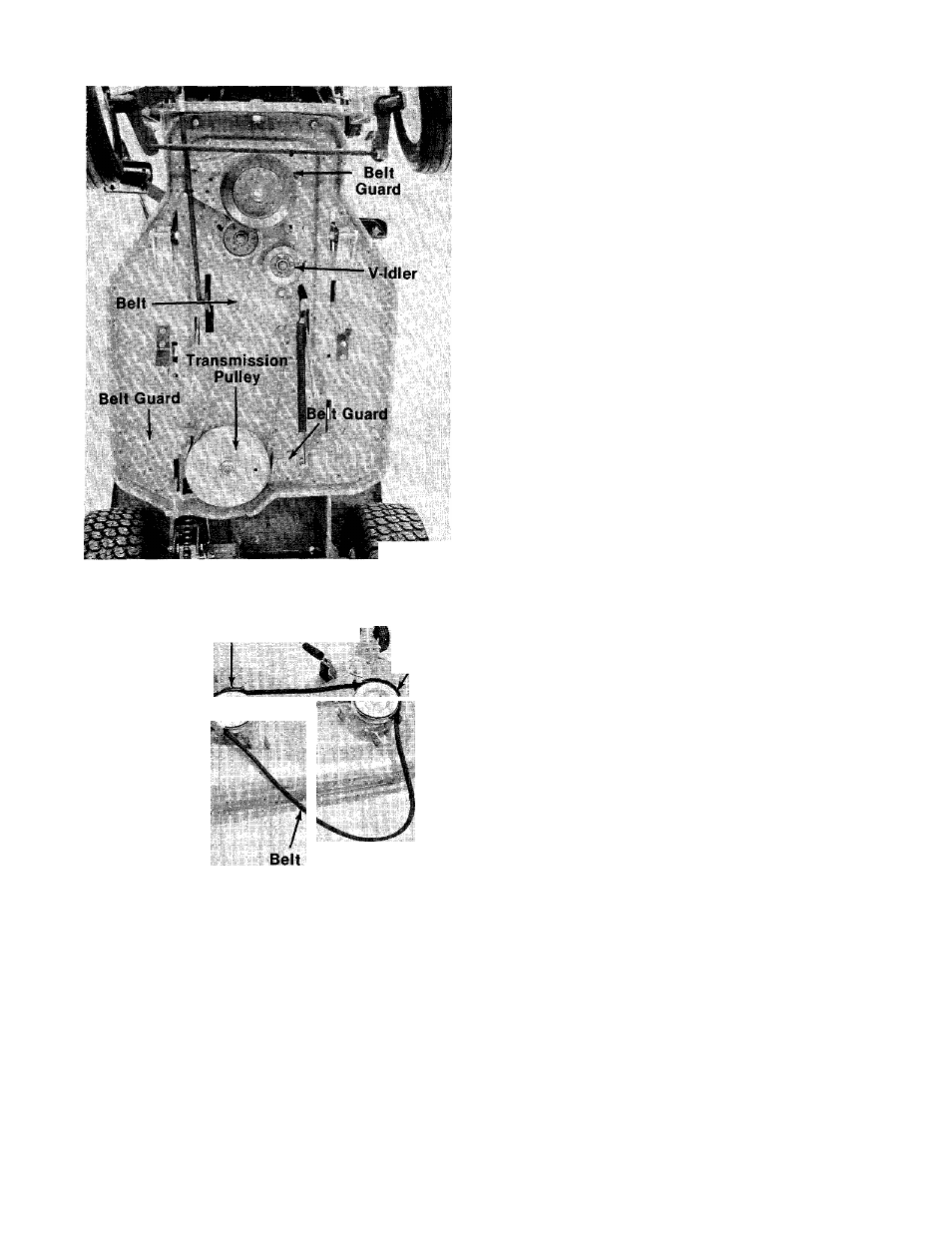

FIGURE 31.
Belt Guard
Belt
Guard
%
o'
i
FIGURE 32.
BATTERY REMOVAL OR INSTALLATION
f WARNING
When removing the battery, follow
this order of disassembly to prevent
the
screwdriver from shorting
against the frame.
1. Remove the Negative cable.
2. Remove the Positive cable.
To install a battery:
1. Attach the Positive cable.
2. Attach the Negative cable.
JUMP STARTING
1. Attach the first jumper cable from the Positive
terminal of the good battery to the Positive
terminal of the dead battery.
2. Attach the second jumper cable from the
Negative terminal of the good battery to the
FRAME OF THE UNIT WITH THE DEAD BAT­
TERY.
^ WARNING \
Failure to use this starting pro­
cedure could cause sparking, and
the gas in either battery couid ex­
plode.
BATTERY MAINTENANCE
1. Check periodically (every two weeks or before
and after charging) to be sure electrolyte level
is above the lowest line on battery. Add only
distilled water or good quality drinking water.
NEVER add additional acid or other chemicals
to battery after initial activation.
2. The battery should be checked with a
hydrometer after every 25 hours of operation.
If the specific gravity is iess than 1.225,
remove battery and recharge.
3. Coat the terminals and exposed wiring with a
thin coat of grease or petroleum jelly for
longer service and protection against elec­
trolyte corrosion.
4. The battery shouid be kept clean. Any de­
posits of acid should be neutralized with soda
and water. Be careful not to get this solution
in the celis.
BATTERY STORAGE
1. Charge battery using normal methods.
NEVER store discharged battery as it will not
recover.
2. When storing battery for extended periods,
disconnect battery cables. Removing battery
from unit is recommended.
3. Store in cold, dry piace.
4. Recharge battery whenever the specific gravi-
18
