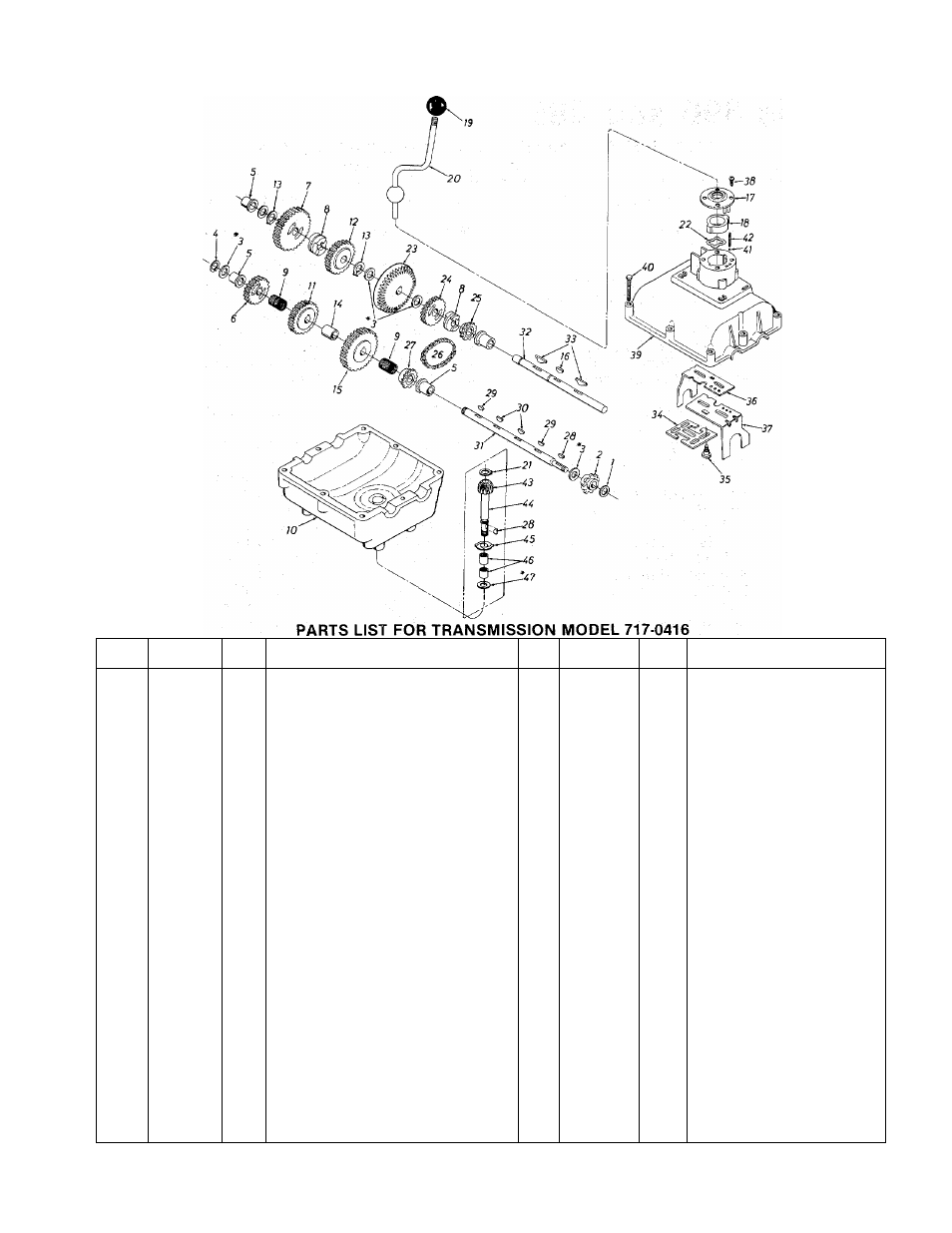

Models 390 and 395
REF.
NO.
PART
NO.
Qty.
Req’d.
DESCRIPTION REF.
NO.
PART
NO.
Qty.
Req’d.
DESCRIPTION
1 FF-1300 1 Ring, Retaining 23 FF-1085 1 Gear, Bevel, 42T
2 FF-1084 1 Sprocket, 8T 24 FF-1071 1 Gear, Spur, 20T
3 FF-1068
*
Washer, Plain (.040) 25 FF-1087 1 Sprocket, 12T, Special
3 FF-1082
*
Washer, Plain (.031) 26 FF-1090 1 Chain
3 FF-1145
* Washer, Plain (.060) 27 FF-1104 1 Sprocket, 12T, Special
3 FF-1358
* Washer, Plain (.050) 28 FF-1371 2 Key, Wdrf., No. 4 Alloy
3 FF-1423
★ Washer, Plain (.025) 29 FF-1369 2 Key, Wdrf., No. 3 Alloy
3 FF-1424
* Washer, Plain (.035) 30 FF-1375 2 Key, Wdrf., No. 61 Alloy
3 FF-1425
* Washer, Plain (.045) 31 FF-1094 1 Shaft, Output
3 FF-1441 •k Washer, Plain (.020) 32 FF-1443 1 Shaft, Drive
4 FF-1106 1 Ring, Retaining 33 FF-1086 2 Key, Hi-Pro, Special
5 FF-1101 4 Bearing, Flange 34 FF-1074 1 Plate, Lock-out
6 FF-1072 1 Gear, Spur, 20T 35 FF-1073 4 Screw, Shoulder
7 FF-1444 1 Gear, Spur, 30T 36 FF-1657 1 Fork, Shifter, R.H.
8 FF-1083 2 Collar, Clutch 37 FF-1070 1 Fork, Shifter, L.H.
9 FF-1095 2 Spring, Compression 38 FF-1357 4 Screw, No. 10-24 x V 2
10 FF-1064A 1 Housing, Lower 39 FF-1065J 1 Housing, Upper
11 FF-1076 1 Gear, Spur, 25T 40 FF-1360 8 Bolt, Hx. Hd., V 4 - 2 O
12 FF-1075 1 Gear, Spur, 25T X 1-5/16
13 FF-1099 2 Ring, Retaining 41 FF-1037 2 Bail, Detent
14 FF-1325 1 Spacer 42 FF-1475 2 Spring, Detent
15 FF-1078 1 Gear, Spur, 30T 43 FF-1105 1 Pinion, Bevel, 16T
16 FF-1374 1 Key, Wdrf., No. 9 Alloy 44 FF-2571 1 Shaft, Input
17 FF-1670 1 Cover, Nylon 45 FF-1499 1 Washer, Thrust
18 FF-1091 1 Insert, Nylon 46 FF-1102 2 Bearing, Needle
19 FF-1318 1 Knob, Shift 47 FF-1430
★
Washer, Plain (.040)
20 FF-2683 1 Assembly, Lever, Shift 47 FF-1431
*
Washer, Plain (.050)
21 FF-1100 1 Ring, Retaining 47 FF-1760
★
Washer, Plain (.015)
22 FF-1096 1 Washer, Wave
‘Indicates used in various combinations to maintain proper ciearances.
