steering
^ 'S^Shaft
NOTE
Reference to right-hand or left-hand
side of machine is from the driver’s
seat facing forward.
-1. Remove the lawn tractor and all parts from the
carton. Make certain that all loose parts and
literature have been removed before the car­
ton is discarded.

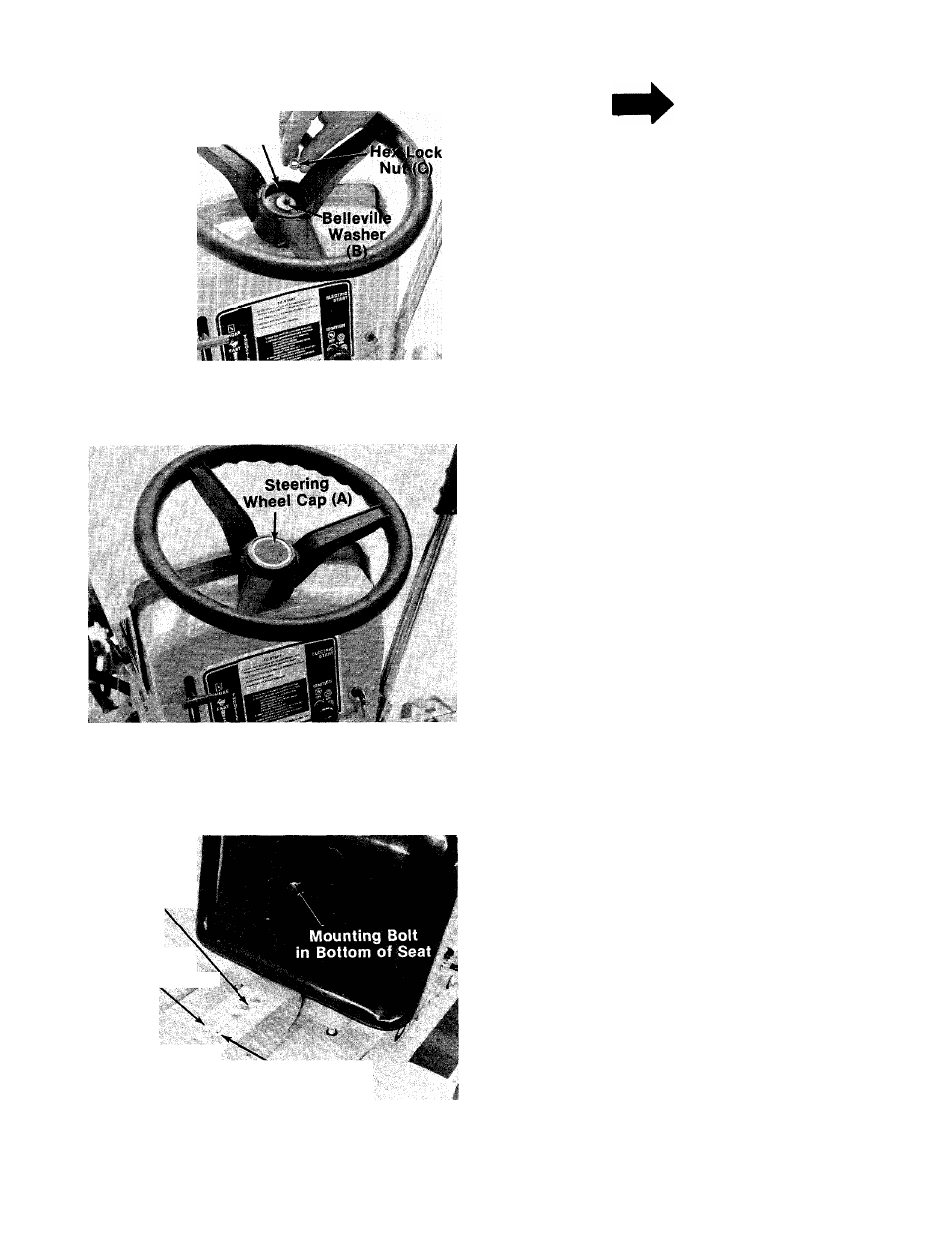

2. Place steering wheel over steering shaft.
3. Secure with belleville washer (B) and hex lock
nut (C). See figure 3.
FIGURE 3.
-4. Press the steering wheel cap (A) on the steer­
ing wheel by hand. See figure 4.
FIGURE 4.
Three Hole
Location on
Seat Spring
Lock Washer
(D). /
if
Hex Nut (E)
■5. The seat spring on the lawn tractor has three
hole locations for mounting the seat (L). See
figure 5.
The seat comes with the mounting bolt
molded in the bottom of seat.
Secure the seat in position on seat spring with
lock washer (D) and hex nut (E). See figure 5.
FIGURE 5.
