CONNECTING THE PROJECTOR
^ NECTING TO THE COMPUTER INPUT
1
JACKS ЩМС TYPE
x
5 )
Personal computers can be connected to the computer input (Red. Green, Blue, Horiz. Sync, and Vert. Sync.) on the
projector.
• Connect the computer to these jacks using the BNC cables {not provided).
CONNECTING TO
THE
COMPUTER
INPUT 2
TERMINAL {HDB15-PIN
(VGA)}
Personal computers can be connected to the HDB15-pin (VGA) terminal on the projector.
• Connect the computer to these terminals using the VGA cabie and VGA/MAC adapter (provided).
WARNING: For projectors, the VGA cable provided is designed to reduce RFI (Radio Frequency Interference) E
emissions. For regulatory compliance reasons, this cable must be used and must not be replaced by any
other cabie.
CONNECTING
TO
THE COMPUTER AUDIO INPUT JACKS (1 and 2>
• Connect audio outputs from your computer to these jacks using the RCA cable (not provided).
• If the audio input of the audio equipment is stereo, be sure to connect the right and left channels to the respective right
and left jacks.
• if the audio input of the audio equipment is monaural, connect it to the left jack.
CONNECTING
TO

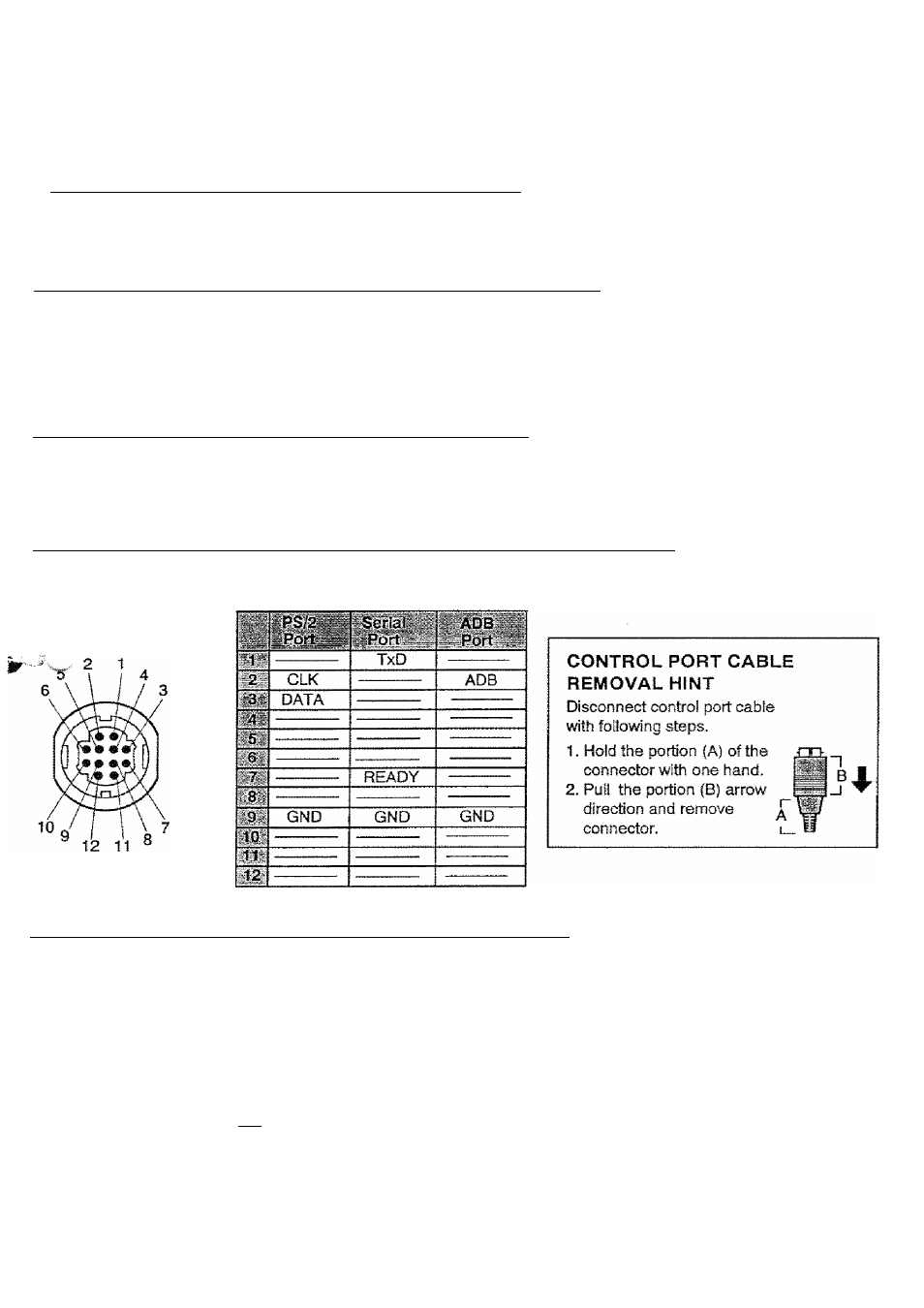

THE MULTI-POLE 12-PIN (CONTROL PORT) CONNECTORS (1 and 2)
• If you vwsh to control the computer with projector’s remote control unit, you must connect control port (PS/2. Serial or
ADB port) on your computer to projector's control port with cable, (three type of cables provided)
CONTROL PORT
CONNECTING TO THE MONITOR OUTPUT TERMINAL fHDB15-PlN (VGA»
This terminal contains the information that is viewed on the screen.
An external monitor can be connected to the HDB15-pin (VGA) terminal on the projector.
• Connect the monitor to this terminal using the VGA cable (not provided).
Pin No./Stgnal
HJL3I5 PIN
\ о J о о о /
ут>
)
1 Red input
2 Green input
3 Blue input
4 Sense 2
5 Ground (Horiz. sync.)
6 Ground (Red)
7 Ground (Green)
8 Ground (Blue)
Pin No./Signal
9 Non Connect
10 Ground (Vert, sync.)
11 Sense 0
12 Sense 1
13 Horiz. sync.
14 Vert. sync.
15 Reserved
