(Video-Equipped Models Only)

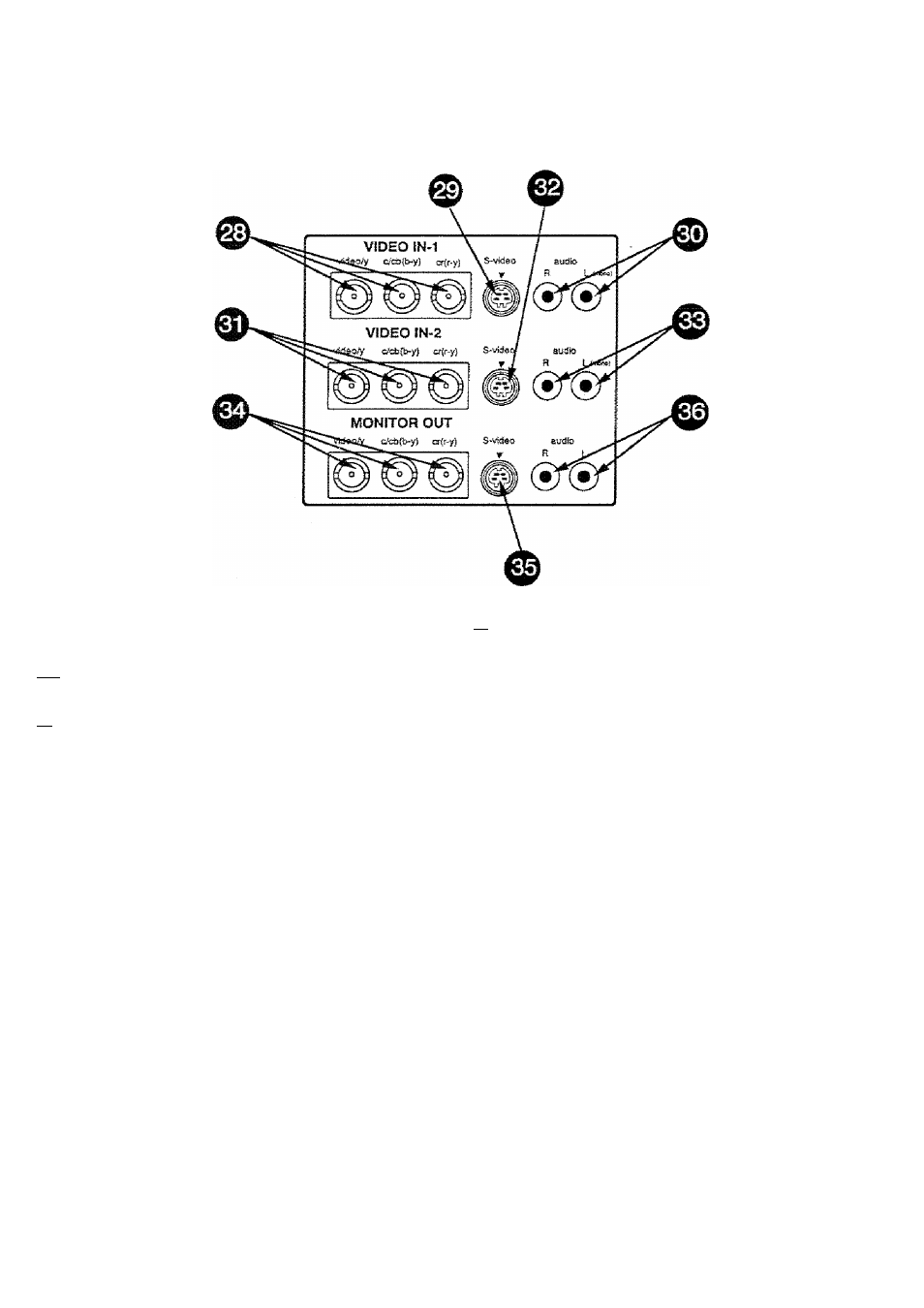

SIDE OF THE PROJECTOR (CONNECT THE VIDEO EQUIPMENT)
VIDEO INPUT JACKS-1 (BNC TYPE x 3)
Used to connect a video source to the projector.
fey" S-VIDEO INPUT JACK-1
Used to connect a S-VHS video source to the projector.
@ AUDIO INPUT JACKS-1 (R and U)
Used to connect an audio source to the projector.
@ AUDIO INPUT JACKS-2
Used to connect an audio source to the projector.
VIDEO INPUT JACKS-2 (BNC TYPE
X
3)
Used to connect a video source to the projector.
S-VIDEO INPUT JACK-2
Used to connect a S-VHS video source to the projector.
'll VIDEO MONITOR OUTPUT JACKS (BNC TYPE x 3)
Permits video connection to a monitor.
ЙЙ VIDEO MONITOR (S-VIDEO) OUTPUT JACK
Permits S-VHS video connection to a monitor.
•j AUDIO MONITOR OUTPUT JACKS (R and L)
Permits audio connection to a monitor.
