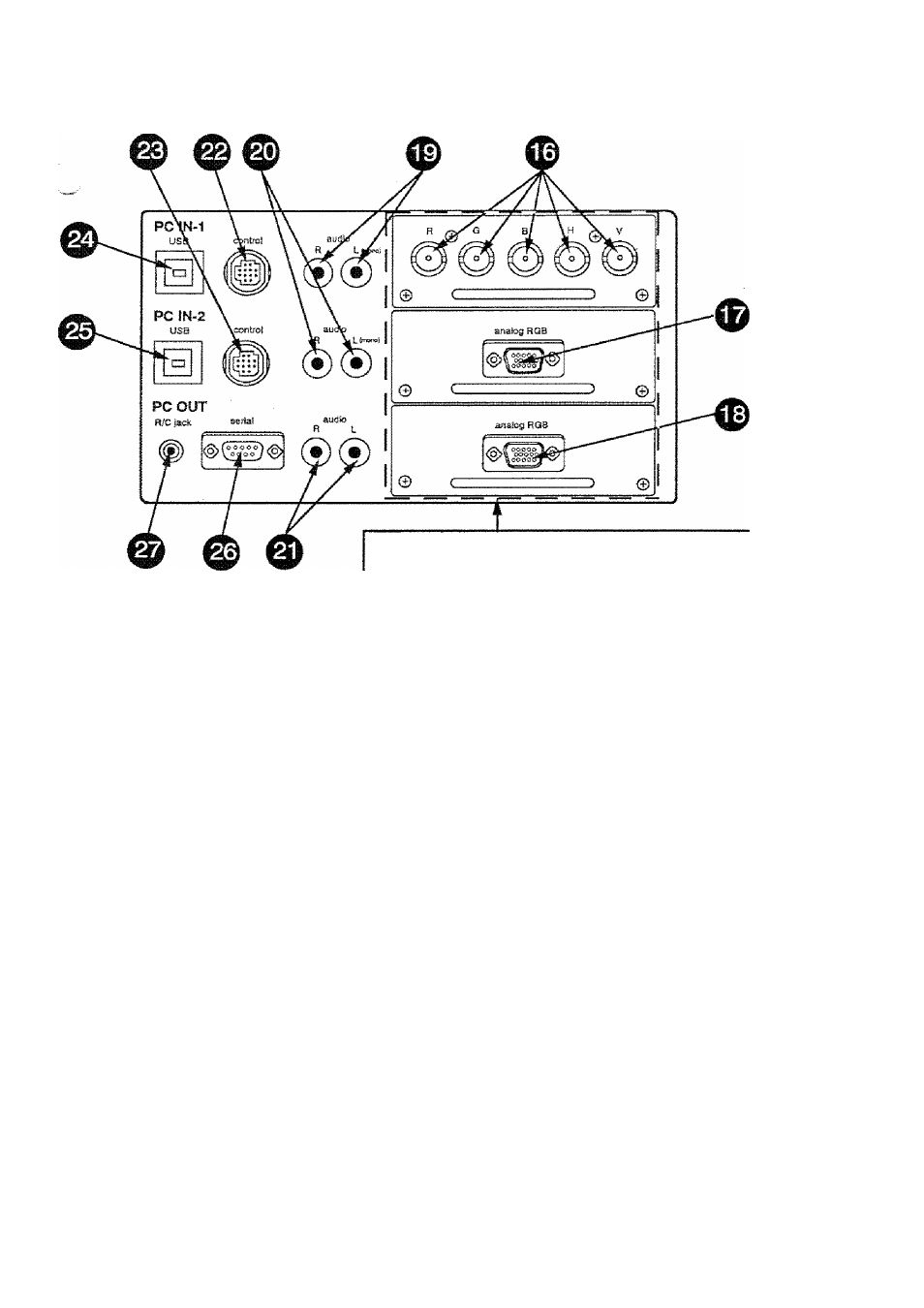

SiDE OF THE PROJECTOR (CONNECT THE COMPUTER)
These terminals are changeable other type terminals.
If you want to change the terminals, contact your
authorized dealer or service station.
COMPUTER INPUT-1 JACKS (BNC TYPE
X
5)
Used to connect a computer to the projector.
COMPUTER lNPUT-2 TERMINAL (VGA HDB15)
Used to connect a computer to the projector.
MONITOR OUTPUT TERMINAL (VGA HDB15)
Used to connect a monitor to the projector.
COMPUTER AUDIO INPUT-1 JACKS (R and L)
Used to connect an audio output from the computer
to the projector.
COMPUTER AUDIO INPUT-2 JACKS (R and L)
Used to connect an audio output from the computer to
the projector.
COMPUTER AUDIO MONITOR OUTPUT JACKS
(R and L)
Used to connect an audio input from audio equipment
to the projector.
CONTROL PORT-1 CONNECTOR
Used to connect a mouse cable to the projector.
CONTROL PORT-2 CONNECTOR
Used to connect a mouse cable to the projector.
USB PORT-1 CONNECTOR
Used to connect a computer to the projector.
USB PORT-2 CONNECTOR
Used to connect a computer to the projector.
SERIAL PORT TERMINAL (DB9)
Used to connect a computer to the projector.
WIRED REMOTE JACK
When using the wired remote control, connect
the remote cable to this jack.
