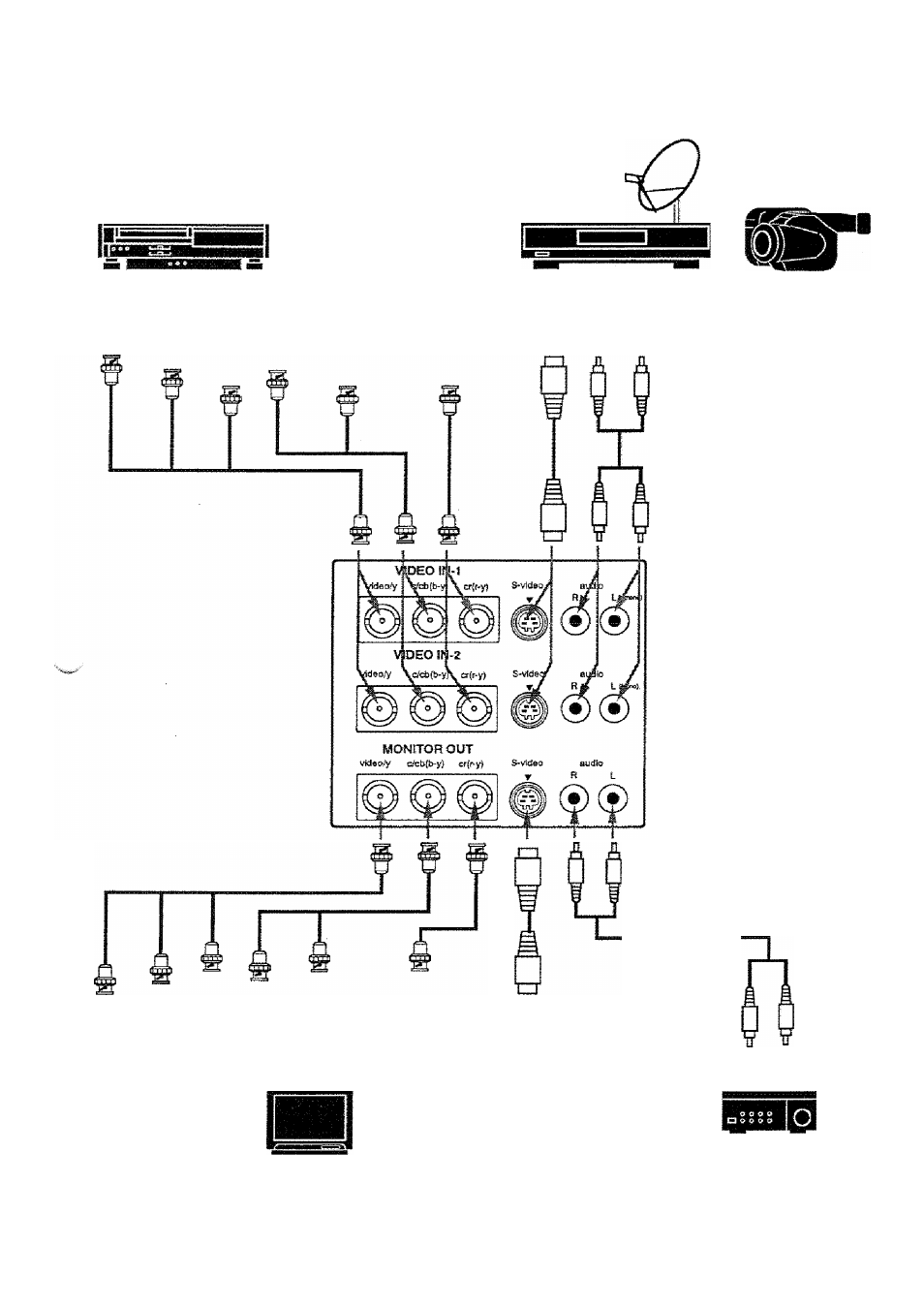

Connecting the Video Equipment (Video-Equipped Models Only)
r VIDEO EQUIPMENT
Satellite
TV Tuner
Video Cassette Recorder
DVD Player
Video Disc Piayer
Video Camera
VIDEO
Y
C
Cfa(B-Y)
Cr(R-Y)
OUTPUT
OUTPUT OUTPUT OUTPUT
OUTPUT
(BNC)
(BNC)
(BNC)
(BNC)
(BNC)
SViDEO AUDIO
OUTPUT OUTPUT
VIDEO
INPUT
(BNC)
\_
Y
C
Cb (B-Y)
INPUT
INPUT INPUT
(BNC)
(BNC)
(BNC)
Cr (R-Y)
INPUT
(BNC)
S-VIDEO
INPUT
/
MONITOR
II
SPEAKERS
AUDIO
INPUT
AUDIO AMR
NOTE; The hook up should be done as per the above illustration. After hook up, turn on the projector, video equipment,
in that order.
