CONNECTING TO THE COMPUTER AUDIO MONITOR OUTPUT (VARIABLE) JACKS
These jacks will contain the audio information of the selected program source being viewed on the screen (Computer 1 or
Computer 2). If you have selected program source Computer 2 the audio signal connected to the Computer 2 audio input
jack will be available at the computer audio monitor output jacks, if you select program source *Video r or "Video 2, the
au signal connected to the Computer 1 audio input jack wifi be available at the computer audio monitor output jacks.
Cowect audio input from audio equipment to these jacks using the RCA cables.
• If the audio input of the audio equipment is stereo, be sure to connect the right and left channels to the respective right
and left jacks.
« If the audio input of the audio equipment is monaural, connect it to the left jack.
CONNECTING TO THE SERIAL PORT CDB9-PIN) TERMINAL
> If you control the projector by computer, you must connect a cable (not
provided) from your computer to this terminal.
■ SERIAL PORT
□39 PIN
TERMINAL
■ ' ' ‘ = 4 3 2 1 " ■
■ ' D O O O C ■ '
\ 9 8 / S /
\ O C C O ,
V ________
.2.. RxD
-3') TxD
5 Ground
6
T-

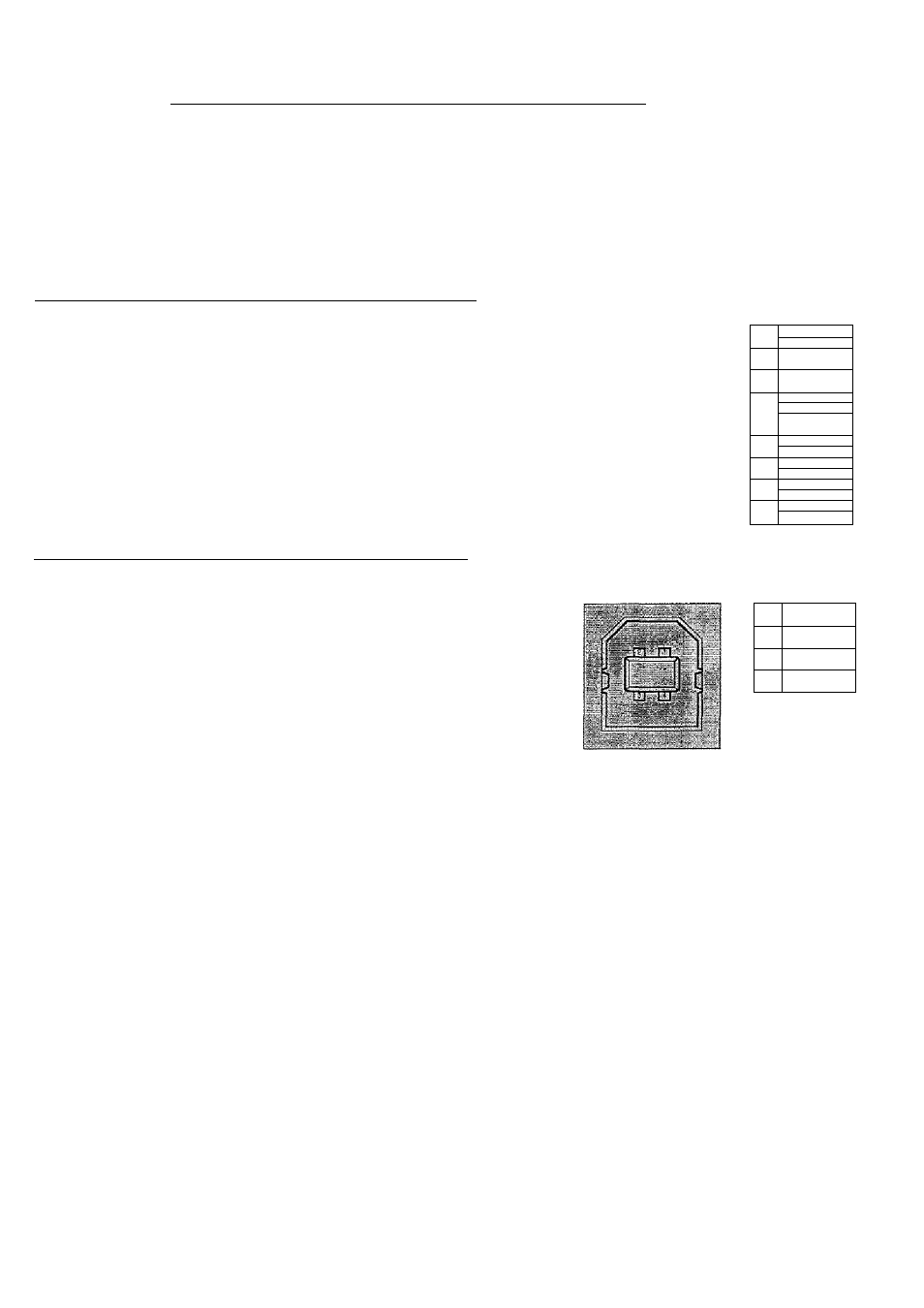

CONNECTING TO THE USB PORT CONNECTORS H and 2 )
This Projector is designed for connecting with USB Port of the computer or
peripheral equipment that is to be standard. USB PORT
1 Vcc
2 -Data
3 -hData
4 Ground
