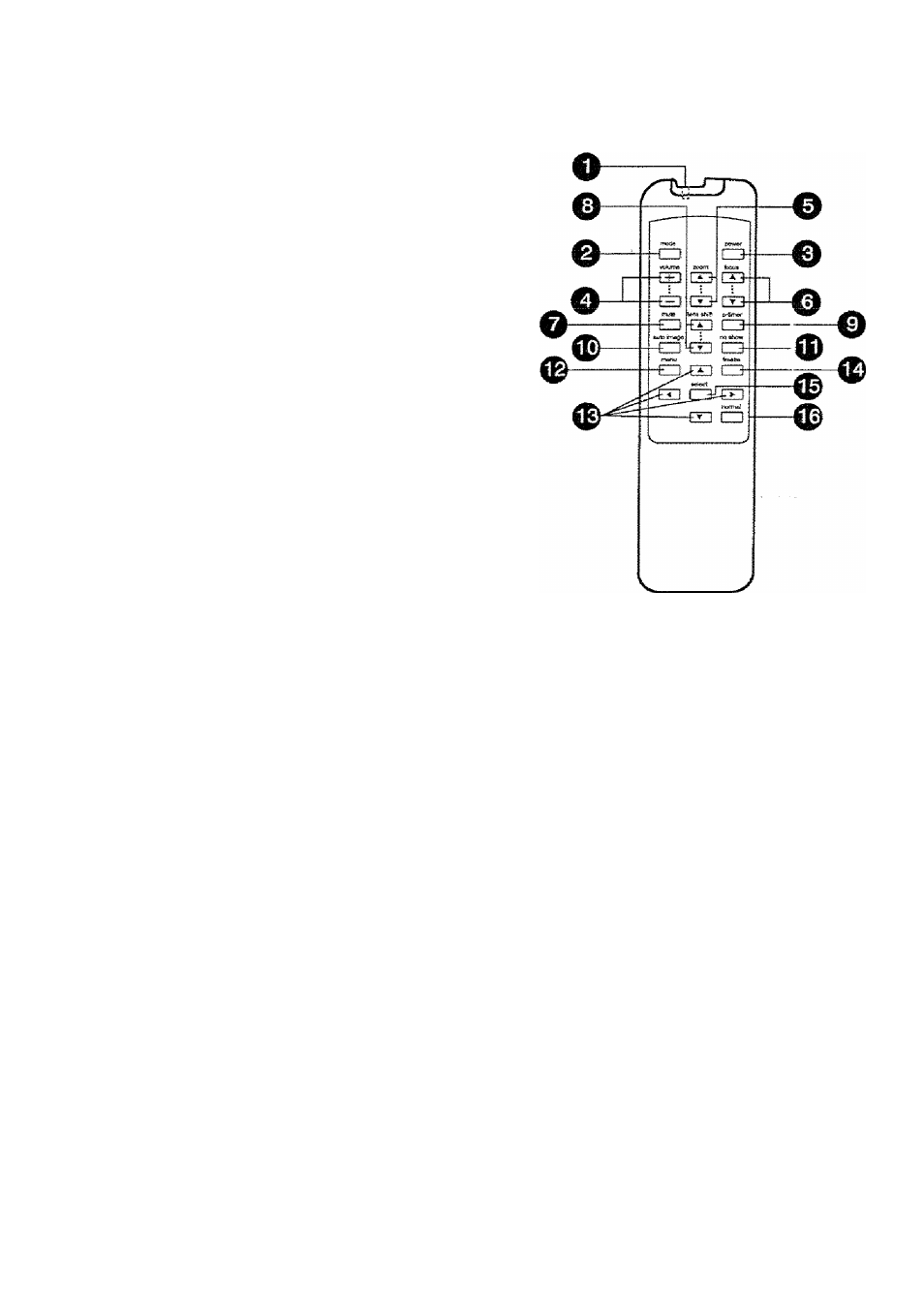

( OPERATION OF REMOTE CONTROL (Wlreless/WIred) )
©
o
lO
e
A WIRED REMOTE JACK
When using the wired remote control, connect the remote
cable to this jack.
MODE BUTTON
Used to select source.
(Computer 1, Computer 2, Video 1 or Video 2 Input)
LAMP POWER ON/OFF BUTTON
Used to turn projection lamp on or off.
VOLUME BUTTONS
Used to adjust volume.
ZOOM BUTTONS
Used to operate power zoom tens.
FOCUS BUTTONS
Used to operate power focus system.
SOUND MUTE BUTTON
Used to mute sound.
A LENS SHIFT BUTTONS
Used to operate power tens shift.
A P-TIMER BUTTON
Used to operate the P-TfMER function.
m
c
il AUTO IMAGE BUTTON
Used to operate the AUTO IMAGE function.
NO SHOW BUTTON
Used to change the screen into black image.
MENU BUTTON
This button will activate the MENU operation.
Use this button, the POINT UP/DOWN/LEFT/RIGHT buttons and the SELECT button to make adjustments to the
projector’s setting in MENU operation.
POINT UP/DOWN/LEFT/RIGHT BUTTONS
To select an item on the MENU that you want to adjust. To select an item, move the arrow by pressing these
buttons (UP. DOWN. LEFT or RIGHT).
FREEZE BUTTON
Use this button to freeze on-screen image.
SELECT BUTTON
This button has different functions depending on when used. This button is used to execute the item selected, to
increase or decrease the values in certain items such as CONTRAST or BRIGHTNESS.
•1 NORMAL BUTTON
Used to reset to normal picture adjustment preset by factory.
— 2 4 —
