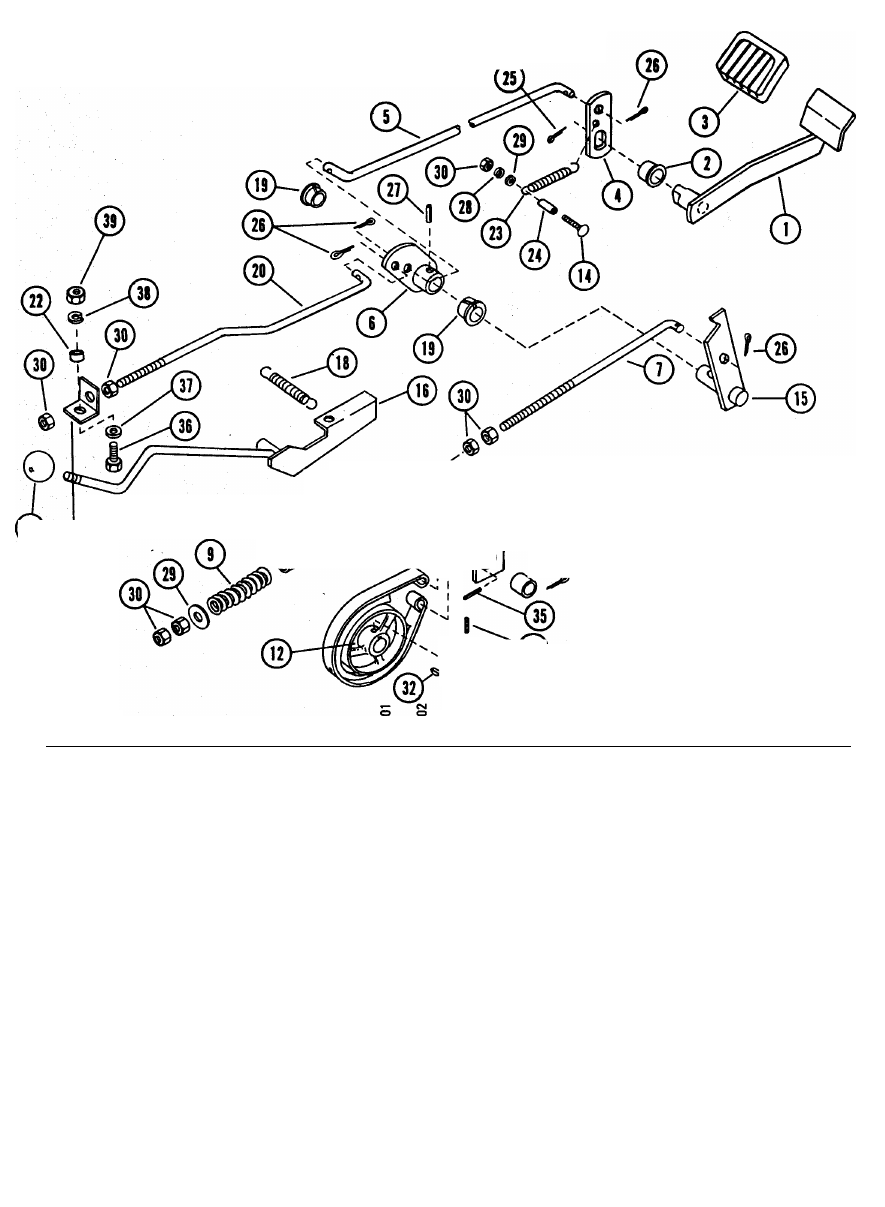

BRAKE & PARKING BRAKE
N
(2^
REF PART
NO. NO.
DESCRIPTION
„ „ REF PART
o) o> NO. NO.*
DESCRIPTION
o
o
O)
CM
o
o>
csl
O)
1 029067 BRAKE PEDAL 1 1 22 055089 BUSHING 1
2 055081 BEARING, Nylon 1 1 23 083117 SPRING 1 1
3 075051 PAD, Pedal 1 1 24 029144 SPACER BUSHING 1 1
4 029081 ARM 1 1 25 067021 PIN, cotter, 1/8" X 1-1/2" 1 1
5 029076 ROD 1 1 26 067024 PIN, Cotter, 1/8" X 3/4" 4 3
6 029069 ARM 1 1 27 058049 PIN, Grooved, 3/16" x 1-1/4" Type E 1 1
7 029078 BRAKE ROD 1 1 28 063003 LOCKWASHER,5/16" 1 1
8 029079 SPACER 1 1 29 064002 WASHER, Flat, 5/16" 2 2
9 083113 SPRING, Compression 1 1 30 065015 NUT, Hex, 5/16"-18 7 5
10 029070 BRAKE PIVOT (Gear) 1 31 067002 PIN, Cotter, 3/32" X 1" 1 1
029071 BRAKE PIVOT (Hydrostatic) 1 32 066003 KEY, Woodruff, No. 9 1 1
11 055024 BUSHING 1 1 33 060030 SCREW, Hex Socket, 1 1
12 029037 BRAKE DRUM 1 1 1/4"-20x5/8"
13 29252 BRAKE BAN D,W/Lining 1 1 34 065099 NUT, Hex Jam, 1/4"-20 1 1
14 062023 BOLT, Carriage 5/16" - 18 x 1-1/2" 1 1 35 058019 PIN, Grooved, 3/16" x 1" Type E 2 2
IS 029072 ARM 1 1 36 059005 CAP SCREW, 3/8"- 16x1-1/4" 1 1
16 029073 BRAKE LOCK 1 1 37 064008 WASHER, Flat, 3/8" 1
17 075052 KNOB 1 1 38 063021 L0CKWASHER,3/8" 1
18 083109 SPRING 1 1 39 065018 NUT, Hex, 3/8"-16 1
19 055077 BEARING, Nylon 2 2
20 029077 ROD 1
21 029080 ANGLE 1
31
