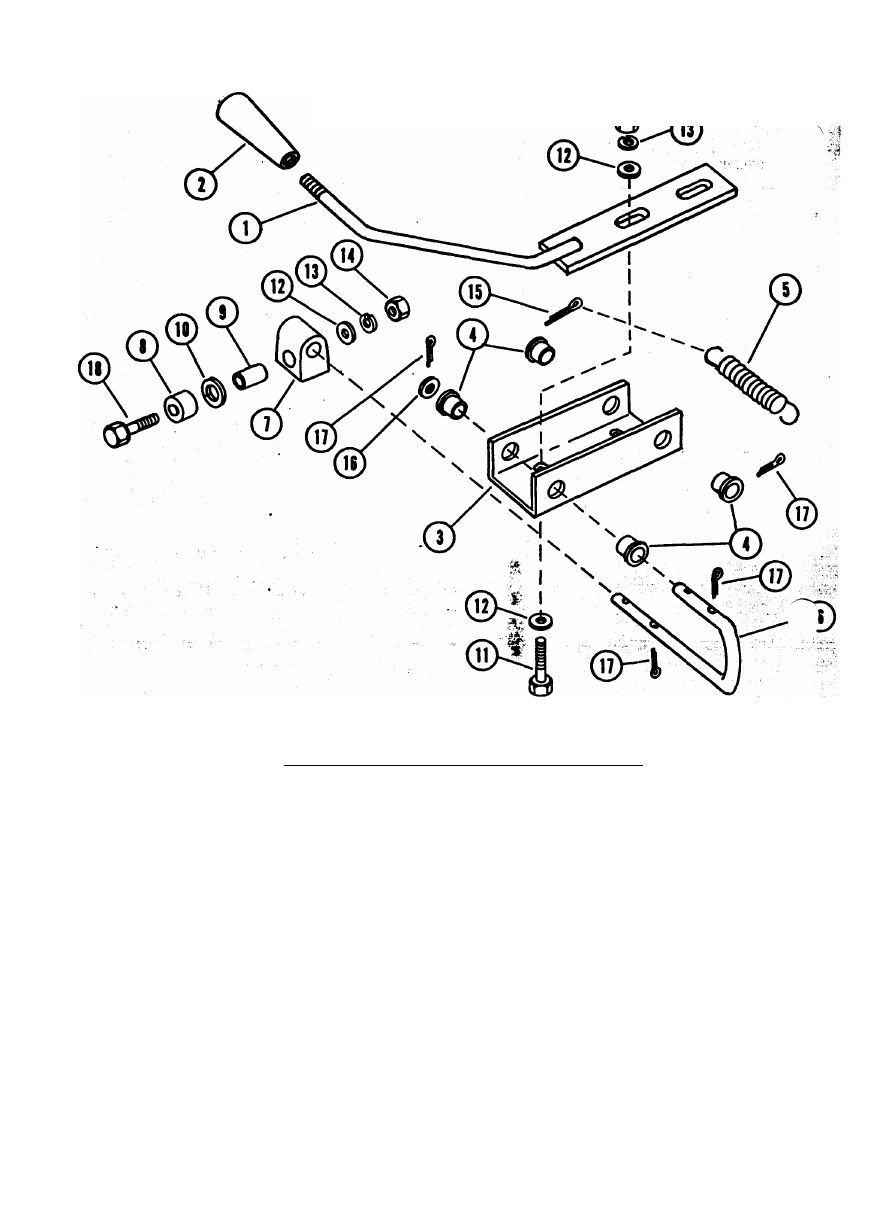

SHIFT CONTROL & LINKAGE-GEAR
-.J
tlM
REF
N0.
PART
N0.
DESCRIPTION
1
029047
LEVER ASSEMBLY
2
075049
HANDLE
3
029048
CHANNEL
4
055078
BUSHING, Nylon
5
083116
SPRING
' 6
029049
ROD
7
029050
PIVOT
8
029051
SPACER
9
029025
SPACER, Bushing
10
064104
WAHSER, Special
11
059003
CAP SCREW, HH, 5/16"-18x1"
12
064002
WASHER, Flat, 5/16"
13
063003
LOCKWASHER,S/16"
14
065015
NUT, Hex, 5/16" ■ 18
IS
067021
PIN, Cotter, 1/8"x1-1/2"
16
064121
WASHER, Flat, 7/16"
17
067004
PIN, Cottar, 1/8" x1"
18
059074
CAP SCREW, HH, 5/16" -18 x 2-3/4'
o>
2
5
3
3
1
6
5
1
3 0
