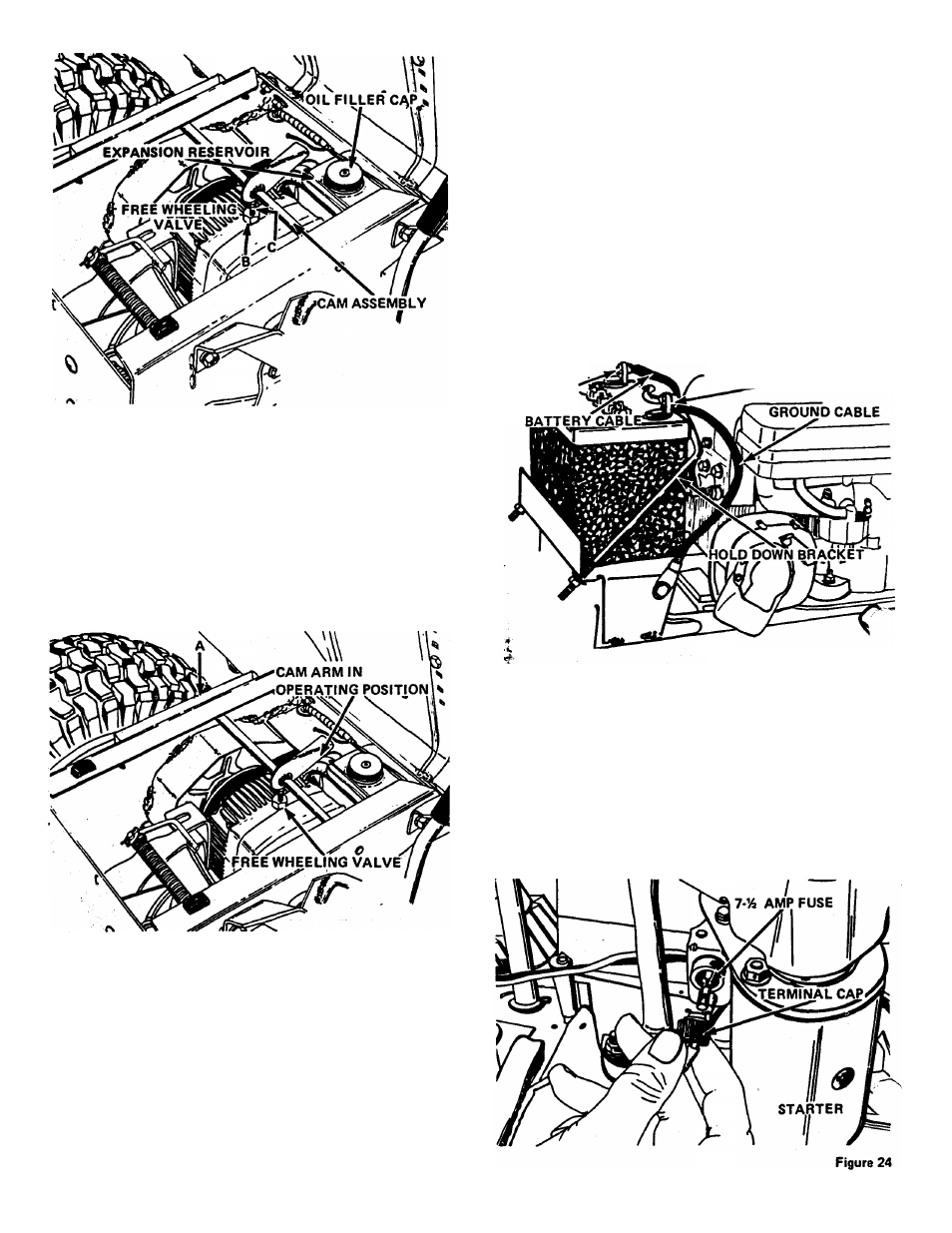

Figure 21
8. Replace cam assembly. Figure 22. Tighten nuts A so the
cam arm intersects the center of the valve actuating rod
and the shaft has 1/32" end play.
’
9. Recheck the oil level. If necessary add oil until the reservoir
is half full.
NOTE: THE CAM ARM MUST BE IN THE FORWARD
POSITION BEFORE THE TRACTOR CAN BE OPERATED.
Figure 22
BATTERY SERVICE
Check the battery electrolyte level once each week or
every 25 hours of operation. Check it monthly if the tractor
is idle or is in storage. Add distilled water to bring the level to
the bottom of the split ring in the filler tube of each ceil.
Each spring and fall clean the battery and terminals with
ammonia or bicarbonate of soda solution followed by flushing
with clean water. Keeping the battery clean will prolong
battery life. After cleaning, apply a light coat of grease to the
terminal and cable ends.
Keep cable clamps securely tightened to terminals and
keep battery hold-down clamps tight to prevent vibration but
do not overtighten as this could warp the case.
A
WARNING: STORAGE BATTERIES GIVE OFF-
HIGHLY INFLAMMABLE HYDROGEN GAS. C
NOT ALLOW SPARKS OR FLAME NEAR BA
TERY. DO NOT LAY TOOLS ACROSS BATTERY
TERMINALS WHICH MAY CAUSE A SPARK
RESUL TING IN AN EXPLOSION.
Maintain the battery at full charge during storage and
during the winter months to prevent freezing. When water is
added during freezing weather, run the engine at least one
hour to bring the battery up to a full state of charge.
NOTE: Figures 26 and 27 show the right rear tractor tire re
moved for clarity and for easier access to the brake adjustment
POSITIVE (+)
TERMINAL
NEGATIVE (-) TERMINAL
Figure 23
When installing the battery, make certain the ground cable
is connected to the negative (—) terminal on the battery, see
Figure 23. Be sure the battery cable is connected to the
positive (+) terminal.
IMPORTANT:
REVERSED
BATTERY
CABLES
OR
RE
VERSED
CABLES
FROM
A
BATTERY
CHARGER
OR
BOOSTER BATTERY CAN BLOW THE 7% AMP FUSE
SHOWN
IN
FIGURE
24.
ALWAYS
DISCONNECT
THE
TERMINAL AT THE FUSE WHEN CHARGING THE BAT
TERY OR WHEN ELECTRIC WELDING IS DONE ON THE
TRACTOR.
