Engine and Headlight
9.7 Add-On Alternator
Remove rewind starter keps nuts and starter from
engine. (Note location of rewind starter handle).
Remove pushout plug from top center of rewind
starter.
On die cast recoils, remove center hole cast material
with 1/4 inch drill.

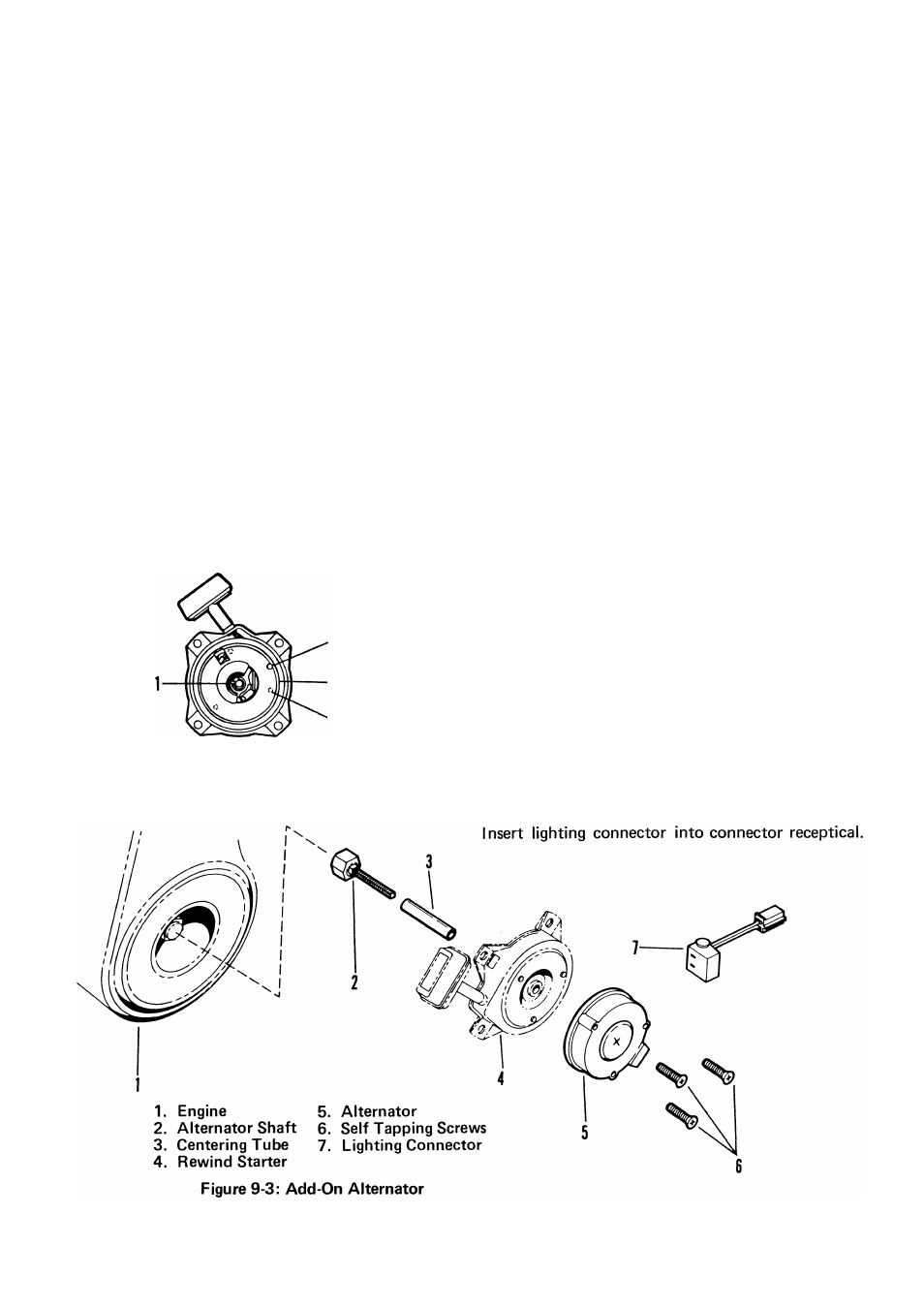

Rotate pulley to expose 3 punch-outs (Figure 1),
place starter on back-up surface and remove punch-
outs with 1/8" punch.
NOTE: Remove quadrant mounting hardware (on
Models 932001, 4, 6 and 7) for additional clearance
when mounting alternator. Secure quadrant when
assembled.
For Use On Sno-Thro Models
Model
924050
924051
924074
924075
Serial No.
050501 & Up
000501 & Up
000101 & Up
000101 & Up
Install alternator shaft over crank shaft nut (tap hex
with pipe or light drift until it contacts flywheel
washer) and place centering tube onto alternator
shaft.
NOTE: 3" alternator shaft and short centering tube
are for 932000 Series and ST 524. 4" alternator
shaft and long centering tube are for ST 824. Alter­
nator shaft must extend approximately 5/8" beyond
top of starter, if not, incorrect shaft has been in­
stalled.
Center rewind starter (using centering tube) and
secure with keps nuts removed earlier.
Remove centering tube and position alternator on­
to alternator shaft with lighting connector receptical
to right (as viewed from operator's position).
Secure alternator to rewind starter with 3 self­
tapping screws.
IMPORTANT: DO NOT exceed 15 inch pounds
seating torque (after threads are formed) to prevent
screws from contacting pulley or distorting alter­
nator.
