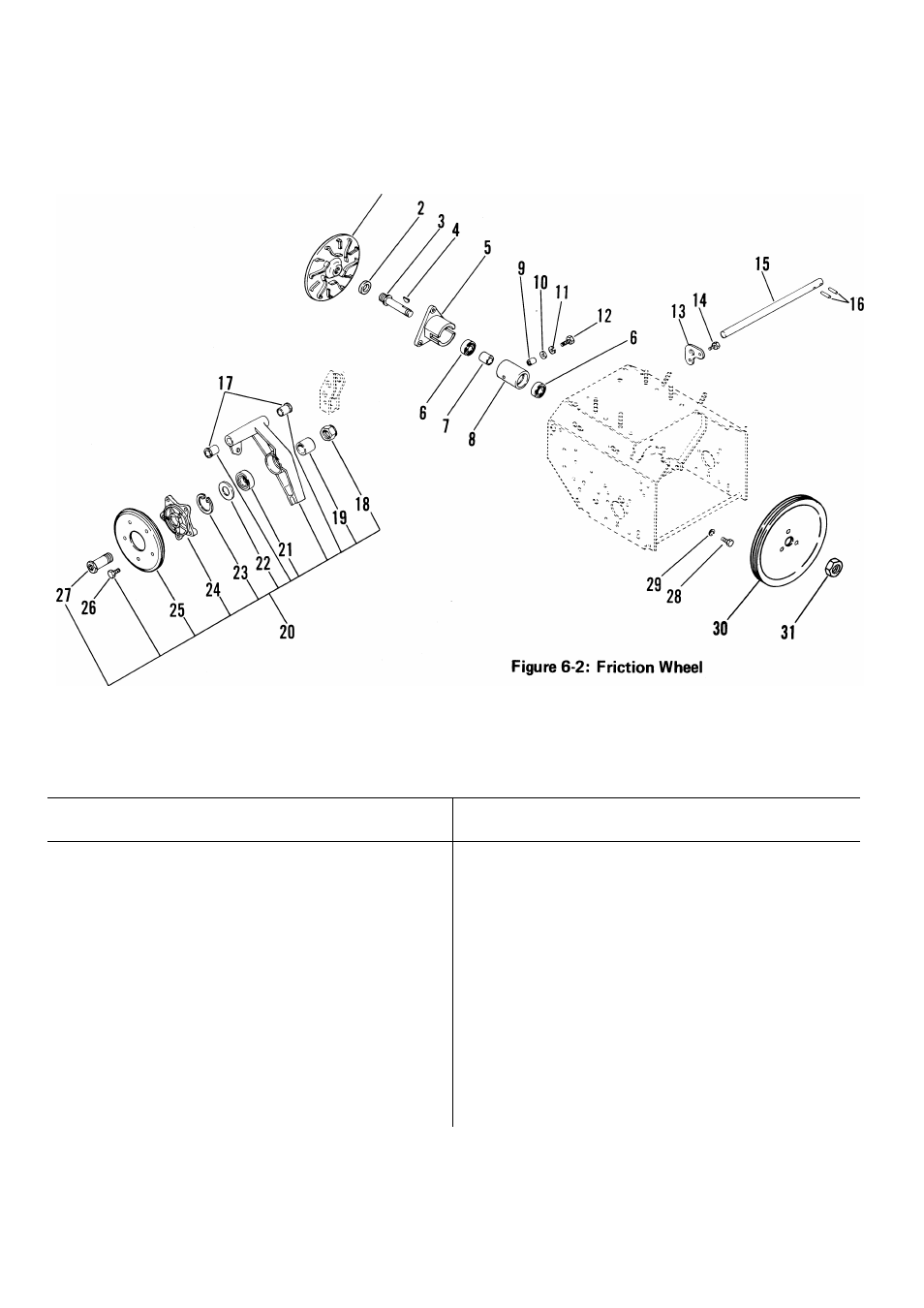

Friction Wheel Drive
iTEM
NO.
DESCRIPTION
ITEM
NO.
DESCRIPTION
1
Drive Plate
16
Roll Pin 5/32
X
1"
2
Drive Disc Spacer
17
Bushing
3
Spindle
18
Nylon Lock Nut 7/8-14
4
Woodruff Key 1/8 x 1/2 x 13/64
19
Bushing
5
Drive Spindle Housing
20
Carrier
6
Bearing 5/8 I.D.
21
Radial Bearing 7/8
7
Bearing Spacer
22
Washer 7/8
8
Bearing Housing
23
Snap Ring Int. 1-3/4
9
Roller
24
Hub
10
Washer 11/32
25
Friction Wheel
11
Lock Washer 5/16
26
Taptite 5/16-18
X
1/2
12
Cap Screw 5/16-18
X
1"
27
Spindle Hub
13
Shaft Support
28
Cap Screw 5/16-18 x 1/2
14
Taptite 1/4-20 x 3/8
29
Lock Washer 5/16
15
Carrier Shaft
30
Pulley
31
Lock Nut
6-2
